Description

Price

1

SWINGINGARM ASS This part replaces 61000-44H00-YAP.

61000-44H01-YAP

$1,024.33

2

.SPACER,RR SWGARM PIVOT CTR

61282-17C00

$32.08

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$19.55

4

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

$27.91

5

SHAFT, RR SWGARM PIVOT

61211-31E00

$144.57

6

SPACER, RR SWGARM PIVOT

61251-21E00

$33.92

7

BUFFER,CHAIN TOUCH DEFENSE This part replaces 61273-44H00.

61273-44H01

$38.10

8

BOLT (6X17.8)

09111-06072

$2.01

9

NUT

09159-18007

$21.28

10

WASHER (18.5X28X2.6)

09160-18030

$2.58

11

CASE,CHAIN

61310-44H00

$73.59

12

BOLT (6X16)

09111-06107

$2.66

13

SCREW (6X16)

09139-06168

$2.64

14

ADJUSTER,CHAIN

61410-44H00

$45.03

15

PLATE, ADJUSTER GUIDE (SILVER)

61421-44H00-13L

$48.27

16

BOLT (8X50)

09106-08119

$3.70

17

WASHER

09164-08015

$2.90

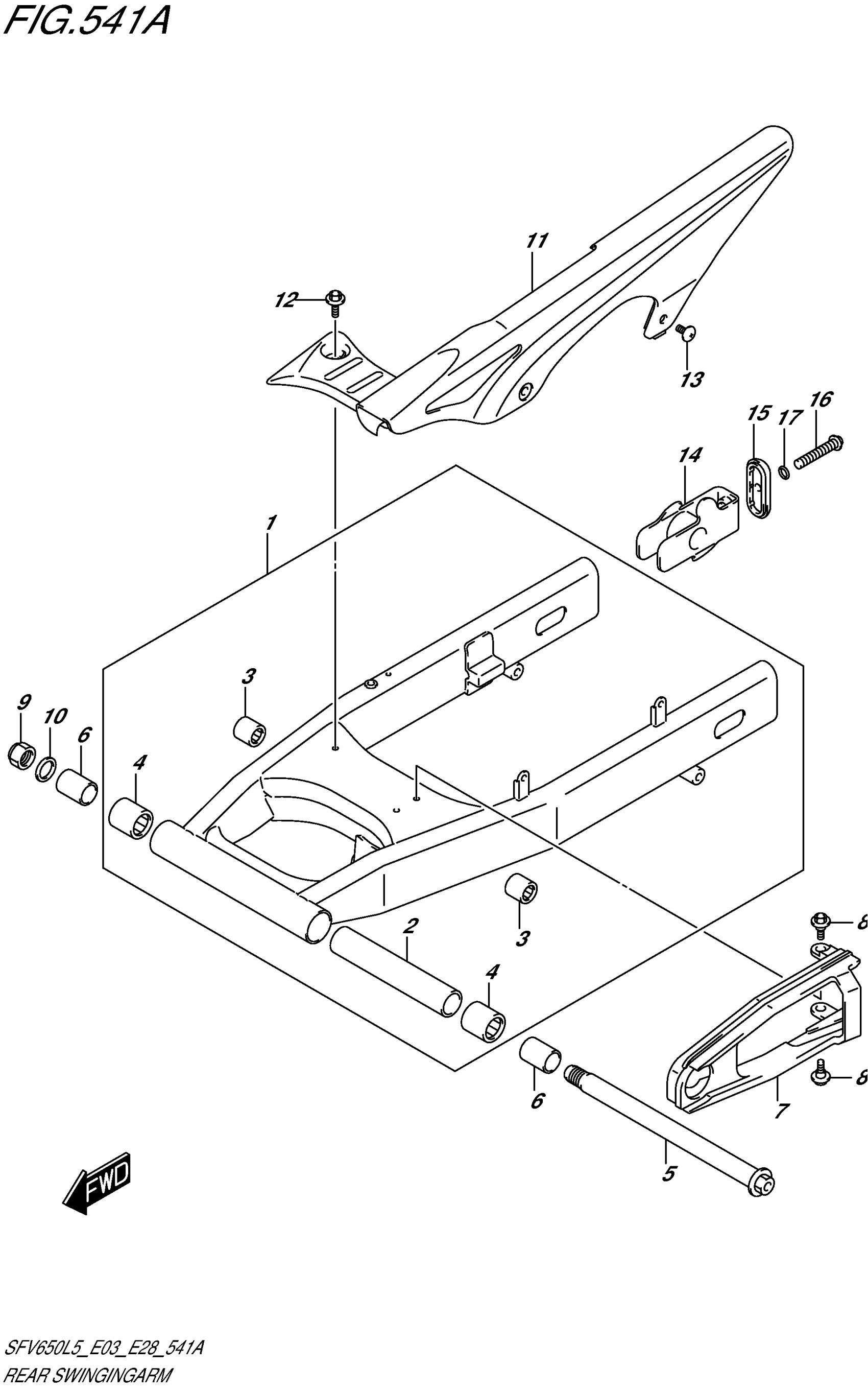

Suzuki SFV650AL5 (2015) REAR SWINGINGARM Diagram
