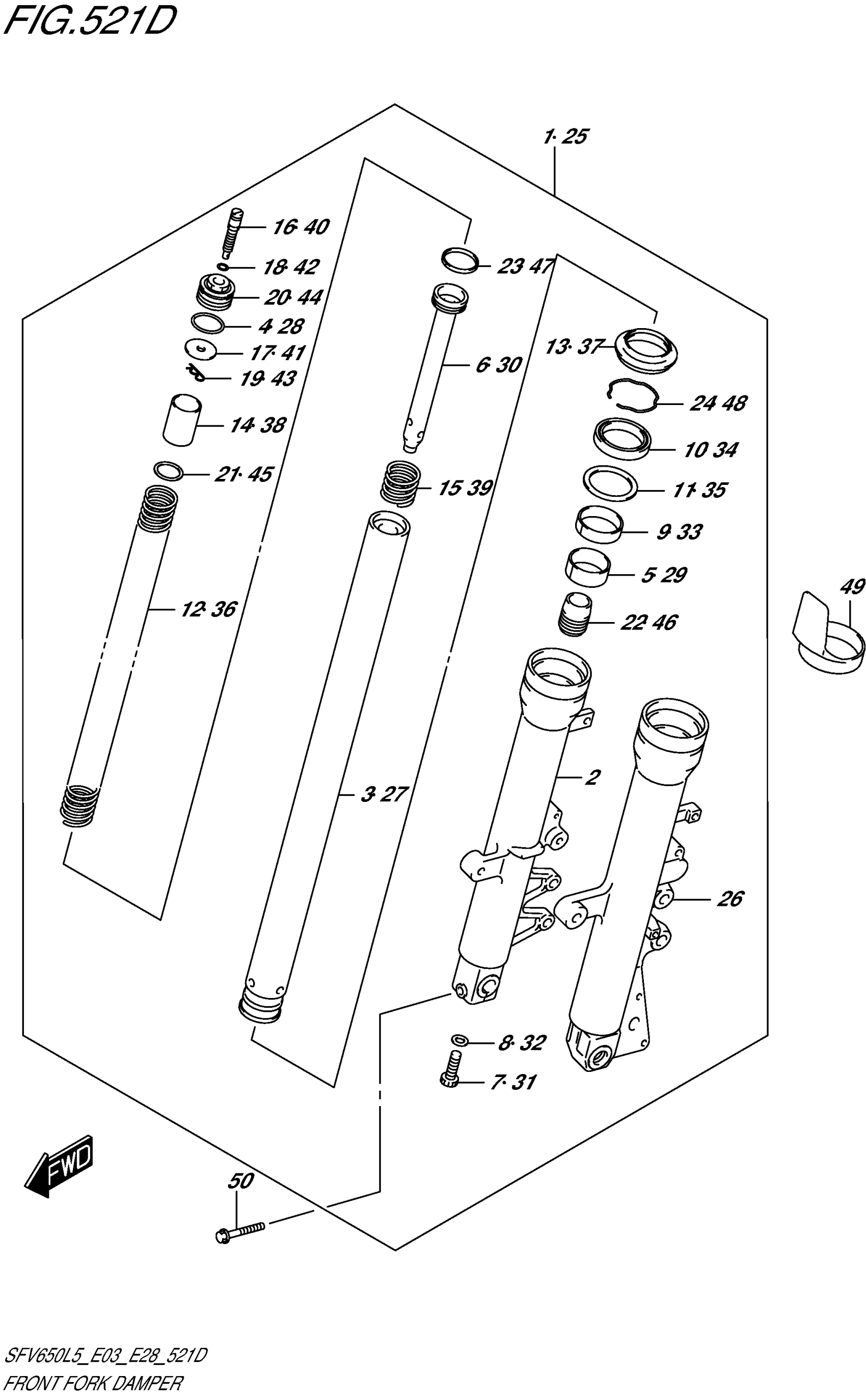

Suzuki SFV650AL5 (2015) FRONT FORK DAMPER (SFV650AL5 E28) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-44H30

Unavailable

2

TUBE, OUTER RH

51130-44H30

Unavailable

3

TUBE, INNER

51110-44H00

$520.52

4

.O-RING

51117-12C00

$3.66

5

.BUSH,SLIDE

51121-44H00

$25.73

6

CYLINDER

51146-17G20

Unavailable

7

BOLT, 8X27

51147-48130

$3.97

8

O RING This part replaces 51148-31030.

51148-36011

$3.26

9

BUSH, GUIDE

51152-01H10

$16.70

10

SEAL, OIL

51153-01H10

$24.63

11

SPACER, SEAL

51168-17G80

$7.23

12

SPRING, FRONT

51171-44H00

$43.76

13

SEAL, DUST

51173-01H00

$10.66

14

COLLAR, SPRING

51176-12C10

$15.70

15

SPRING, REBOUND

51177-17G50

Unavailable

16

.ADJUSTER BOLT,SPRING

51185-17G00

Unavailable

17

SEAT, SPRING

51186-12C00

$8.52

18

.O RING (D:1.9,ID:8.6)

09280-09005

$3.33

19

PIN, SEAT SPRING

51188-32B00

Unavailable

20

.BOLT,FORK

51189-12C00

Unavailable

21

JOINT, SPRING

51192-19C00

$5.65

22

PIECE, OIL LOCK

51195-48B31

$34.12

23

RING, PISTON

51196-12C00

$9.50

24

RING, STOPPER

51556-38B00

$6.61

25

DAMPER ASSY, FRONT FORK LH

51104-44H30

Unavailable

26

TUBE, OUTER LH

51140-44H30

Unavailable

27

TUBE, INNER

51110-44H00

$520.52

28

.O-RING

51117-12C00

$3.66

29

.BUSH,SLIDE

51121-44H00

$25.73

30

CYLINDER

51146-17G20

Unavailable

31

BOLT

51147-48130

$3.97

32

O RING This part replaces 51148-31030.

51148-36011

$3.26

33

BUSH, GUIDE

51152-01H10

$16.70

34

SEAL, OIL

51153-01H10

$24.63

35

SPACER, SEAL

51168-17G80

$7.23

36

SPRING, FRONT

51171-44H00

$43.76

37

SEAL, DUST

51173-01H00

$10.66

38

COLLAR, SPRING

51176-12C10

$15.70

39

SPRING, REBOUND

51177-17G50

Unavailable

40

.ADJUSTER BOLT,SPRING

51185-17G00

Unavailable

41

SEAT, SPRING

51186-12C00

$8.52

42

.O RING (D:1.9,ID:8.6)

09280-09005

$3.33

43

PIN, SEAT SPRING

51188-32B00

Unavailable

44

.BOLT,FORK

51189-12C00

Unavailable

45

JOINT, SPRING

51192-19C00

$5.65

46

PIECE, OIL LOCK

51195-48B31

$34.12

47

RING, PISTON

51196-12C00

$9.50

48

RING, STOPPER

51556-38B00

$6.61

49

PROTECTOR

51201-32F00

$19.72

50

BOLT | RH

51166-01H10

$10.78
