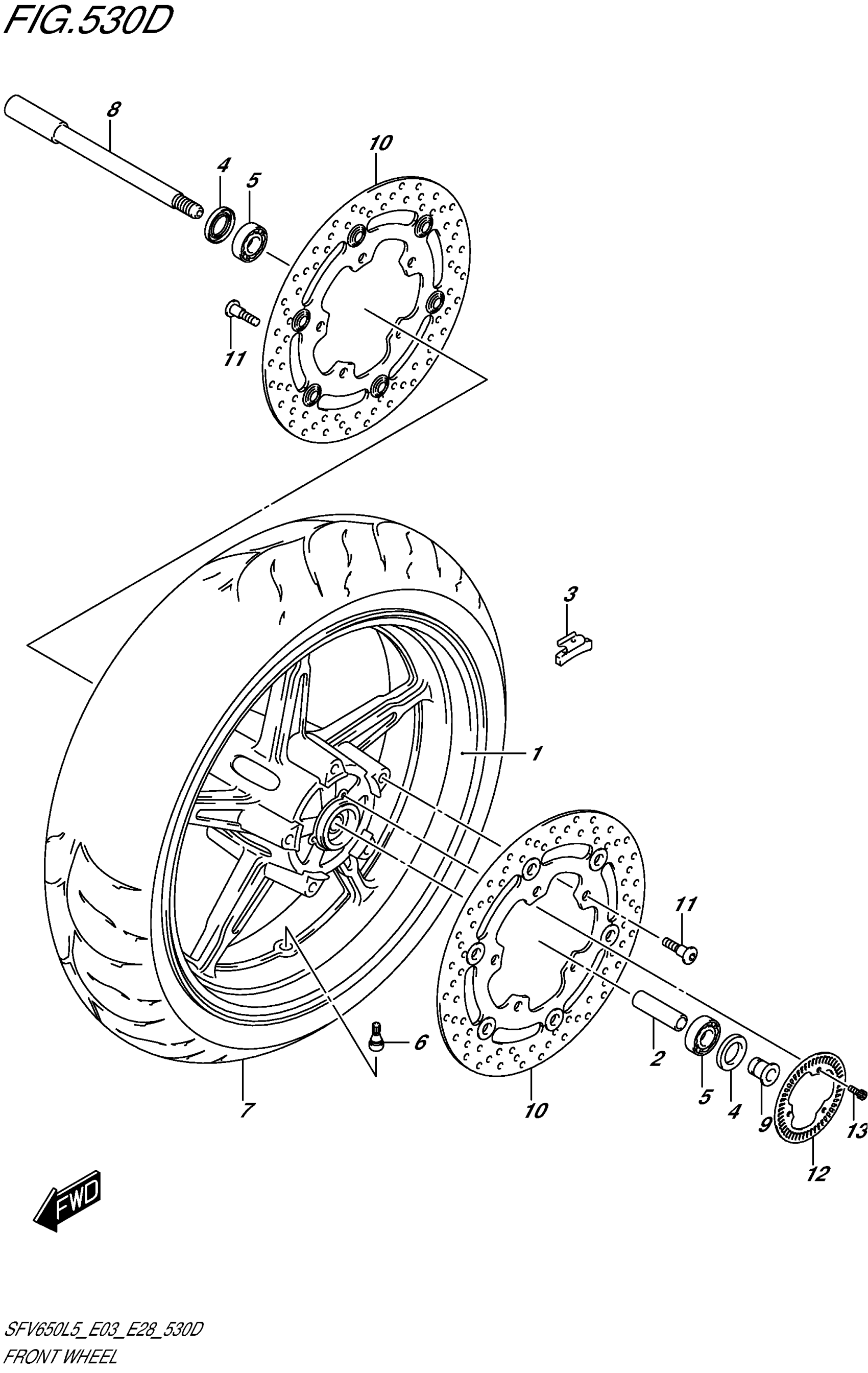

Suzuki SFV650AL5 (2015) FRONT WHEEL (SFV650AL5 E28) Diagram

WHEEL, FRONT (17M/CXMT3.50) (BLACK) | FOR AR4,KGL

54111-44H10-019

Unavailable

WHEEL, FRONT (17M/CXMT3.50) (BLUE) | FOR AJP

54111-44H10-YLY

Unavailable

SPACER,FR HUB BEARING

54731-44H00

$28.05

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$9.70

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$11.37

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$12.93

OIL SEAL (22X40X7)

09285-22004

$5.51

BEARING This part replaces 08133-62037.

08133-6203B

$15.88

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

TIRE,FRONT This part replaces 55110-44H01.

55110-44H03

$268.26

AXLE,FR

54711-08F00

$117.03

SPACER,FR AXLE,L

54751-44H00

$19.23

DISC,FR BRAKE

59210-38G10

$472.48

BOLT (8X21)

09106-08160

$3.22

RING, SPEED SENSOR

54162-44H00

$26.80

BOLT

07130-0512A

$2.19
