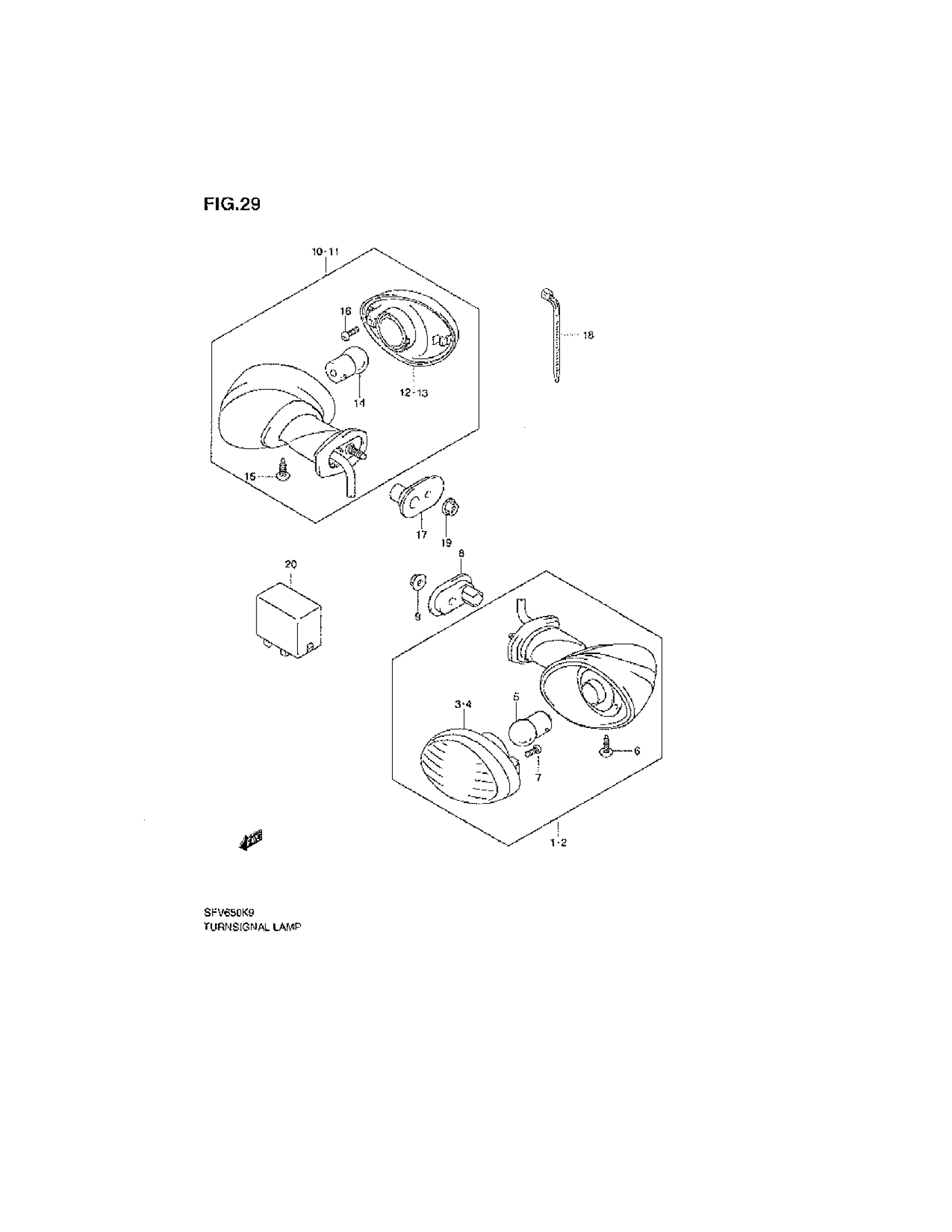

Suzuki SFV650 (2009) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL RH

35601-29FB0

$144.92

2

LAMP ASSY, FRONT TURNSIGNAL LH | Includes Item(s) 3 - 6

35602-29FB0

$142.23

3

LENS, R

35612-29FA0

$16.23

4

LENS, L

35632-29FA0

$16.23

5

BULB, 12V10W

09471-12186

$16.18

6

SCREW

03242-0416B

$3.18

7

PLATE, FRONT TURNSIGNAL

35629-31F60

$6.30

8

NUT, FRONT TURNSIGNAL

08316-1005B

$2.50

9

LAMP ASSY, REAR TURNSIGNAL RH

35603-29FA0

$113.57

10

LAMP ASSY, REAR TURNSIGNAL LH | Includes Item(s) 11 - 14

35604-29FA0

$80.54

11

LENS, R

35612-29FA0

$16.23

12

LENS, L

35632-29FA0

$16.23

13

BULB, 12V10W

09471-12186

$16.18

14

SCREW

03242-0416B

$3.18

15

PLATE, REAR TURNSIGNAL

35629-31F60

$6.30

16

CLAMP, REAR TURNSIGNAL

09407-18402

$2.21

17

NUT, REAR TURNSIGNAL

08316-1005B

$2.50

18

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
