2009 Suzuki SFV650 Rear Combination Lamp Diagram

← All diagrams

Find the part on the Rear Combination Lamp diagram for your 2009 Suzuki SFV650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

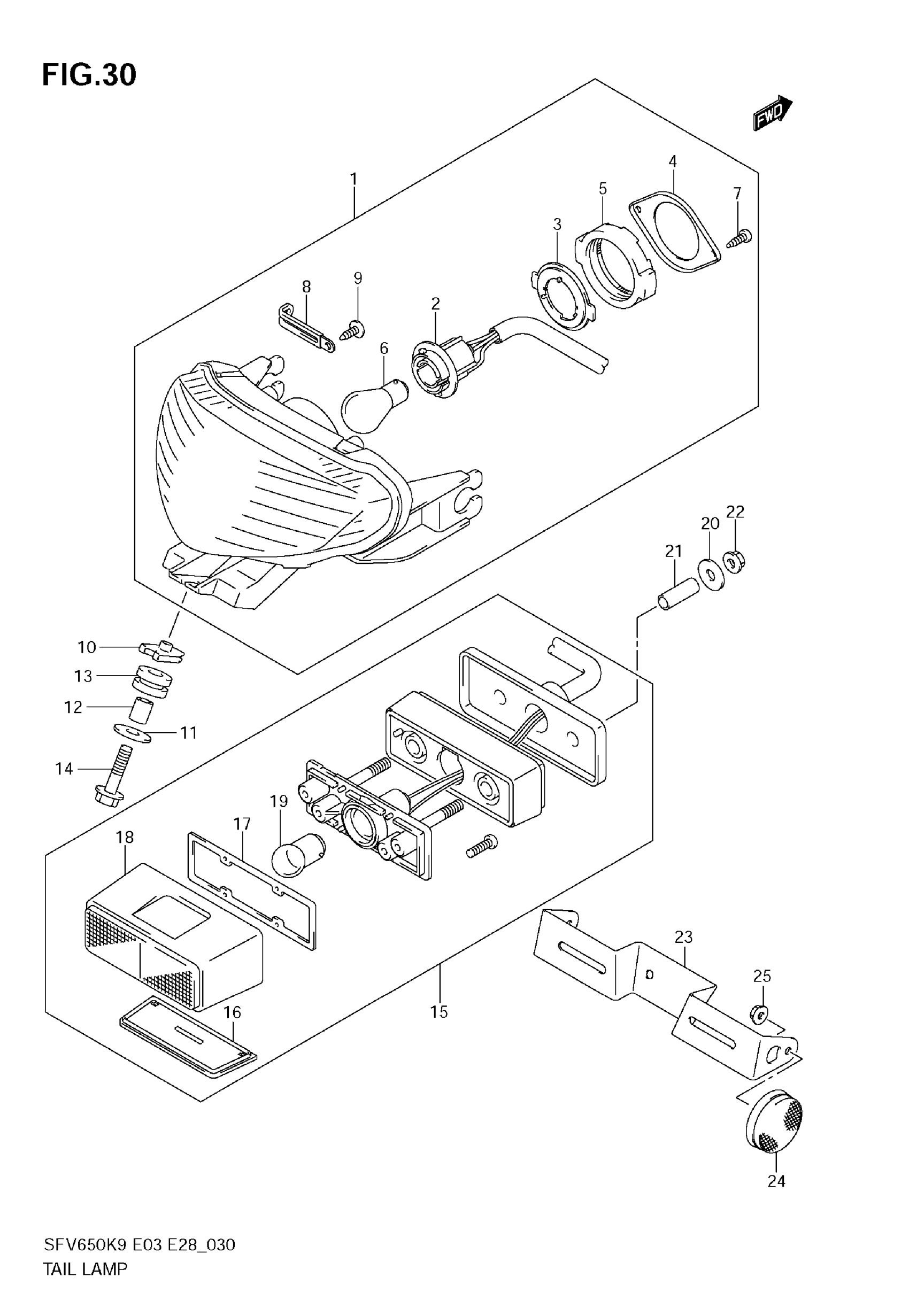

2009 Suzuki SFV650 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 9

35710-44H00

1
Out of stock

2

SOCKET & CORD

35718-44H00

1
Out of stock

3

PLATE, NO.1

35716-48B21

1

$22.82

In stock

4

PLATE, NO.2

35736-48B21

1

$24.73

In stock

5

1

$14.63

In stock

6

BULB (12V,21/5W) This part replaces 09471-12046.

09471-12128

1
Out of stock

7

SCREW

03211-0412A

2

$0.73

In stock

8

CLAMP (L:45)

09404-06429

1
Out of stock

9

SCREW, REAR COMBINATION

03541-0512A

1
Out of stock

10

NUT, REAR COMBINATION

09148-05039

—
Out of stock

11

WASHER (5.5X20X1.2)

09160-05501

3

$2.02

In stock

12

SPACER (5.5X9.5X10)

09180-05301

3

$2.95

In stock

13

CUSHION This part replaces 09320-10054.

09320-10073

3
Out of stock

14

3

$2.58

In stock

16

LENS, LICENSE This part replaces 35912-41G00.

35912-41G01

1
Out of stock

17

GASKET

35913-41G00

1
Out of stock

18

COVER, LICENSE LAMP

35917-41G00

1
Out of stock

19

1

$2.55

In stock

20

WASHER (6.5X20X1.2)

09160-06077

2
Out of stock

21

SPACER (6.5X9X9)

09180-06278

2

$4.92

In stock

22

NUT, LICENSE LAMP

08316-1006A

2
Out of stock

23

BRACKET,LICENSE PLATE

35927-44H30

1
Out of stock

24

REFLECTOR ASSY, RR SIDE

35970-14A20

2
Out of stock

25

NUT, REAR SIDE RR

08316-1005A

2
Out of stock
