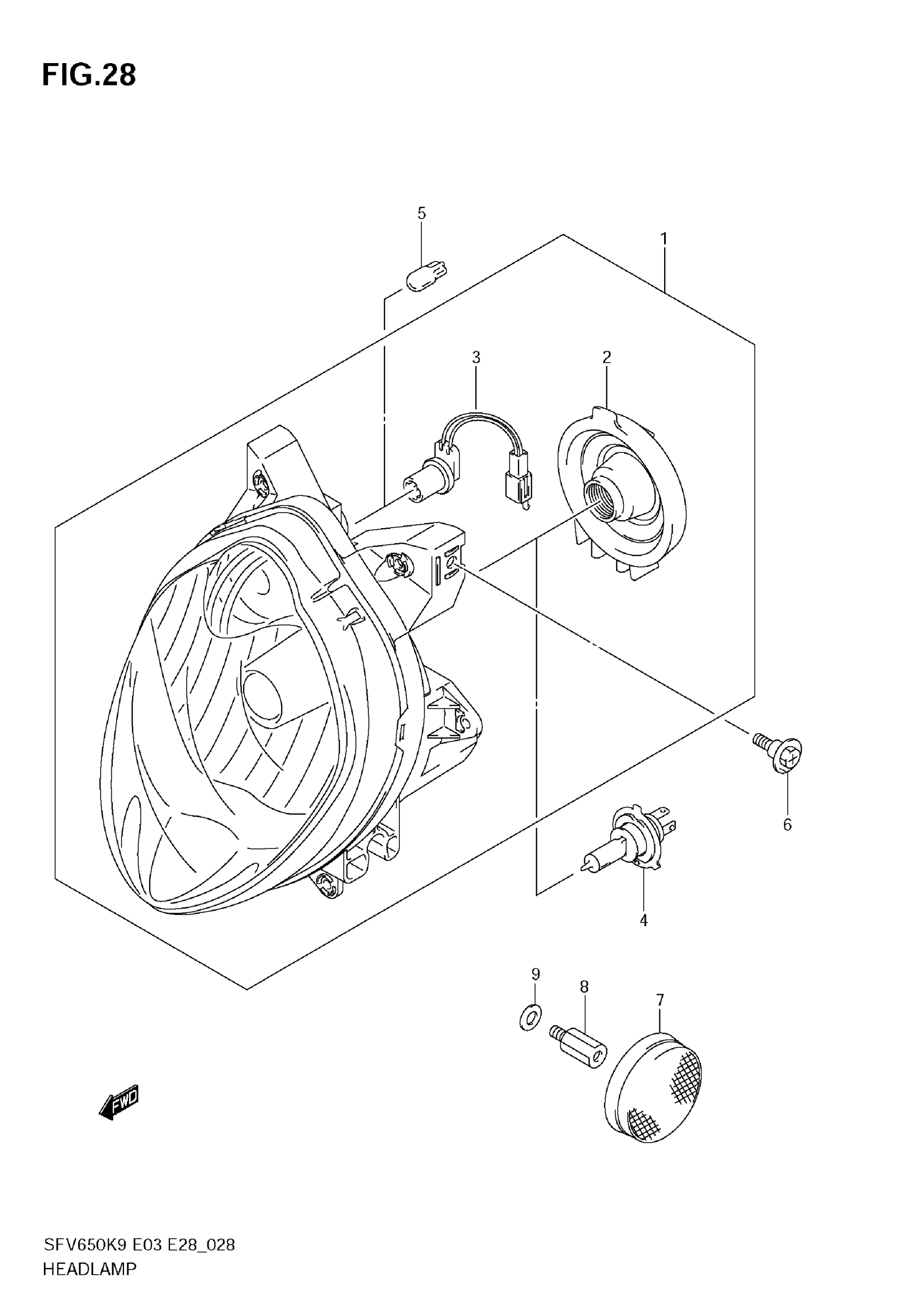

Suzuki SFV650 (2009) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 3 This part replaces 35100-44H00-999.

35100-44H13-999

$408.47

2

COVER, SOCKET

35125-77A00

$12.94

3

CORD ASSY This part replaces 36118-44H00.

36118-44H01

$26.10

4

BULB, 12V60/55W

09471-12182

$83.77

5

.BULB (12V5W)

09471-12216

$4.84

6

BOLT, HEADLAMP

09139-06118

$3.05

7

REFLEX REFLECTOR ASSY, FR SID This part replaces 35950-14A10.

35950-14A11

$13.94

8

BOLT (5X10)

09119-05023

$13.80

9

WASHER, FRONT SIDE RR

08322-0105B

$2.24
