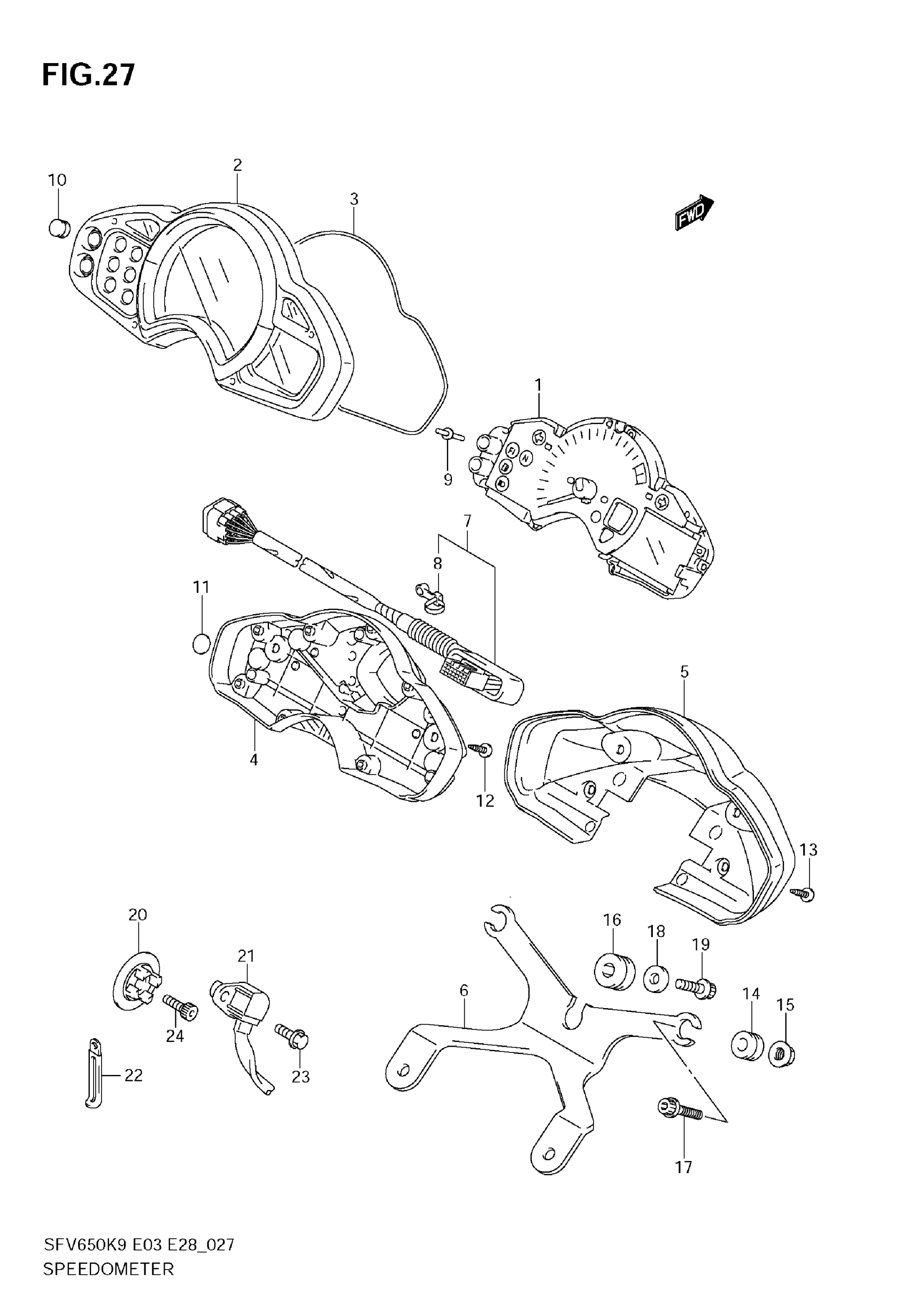

Suzuki SFV650 (2009) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER | E3/E33

34120-44H20

Unavailable

1

SPEEDOMETER | E28

34120-44H00

Unavailable

2

CASE ASSY

34150-44H00

$115.30

3

PACKING RUBBER

34153-44H00

$27.65

4

CASE

34152-44H00

$67.57

5

CASE, LOWER

34156-44H00

$84.55

6

HOLDER, CASE

34162-44H00

$70.97

7

WIRE, ASSY | Includes Item(s) 8 This part replaces 34175-44H00.

34175-44H01

$168.30

8

CLAMP, LEAD WIRE

34146-44G00

Unavailable

9

KNOB, SPEEDOMETER

34124-16G00

$10.62

10

COVER, SPEEDOMETER

34126-44G00

$11.83

11

SEAL

34167-13E00

Unavailable

12

SCREW, 3X12

34183-29F00

$3.62

13

SCREW, 4X14

34149-16B00

$2.25

14

.CUSHION

34996-43410

$4.92

15

NUT

09159-05049

$2.50

16

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.80

17

SCREW, SPEEDOMETER

34149-44H00

$5.38

18

WASHER, SPEEDOMETER

34181-21D00

$8.62

19

BOLT, SPEEDOMETER

07120-0616B

$2.47

20

ROTOR,SPEED This part replaces 34981-38G00.

34981-38G01

$16.40

21

SENSOR, SPEED This part replaces 34990-47F00.

34990-35F00

$120.25

22

CLAMP (L:45)

09404-06429

$1.82

23

BOLT, SPEED SENSOR

07120-0512B

$2.61

24

BOLT, SPEED ROTOR

07130-0825B

$3.04
