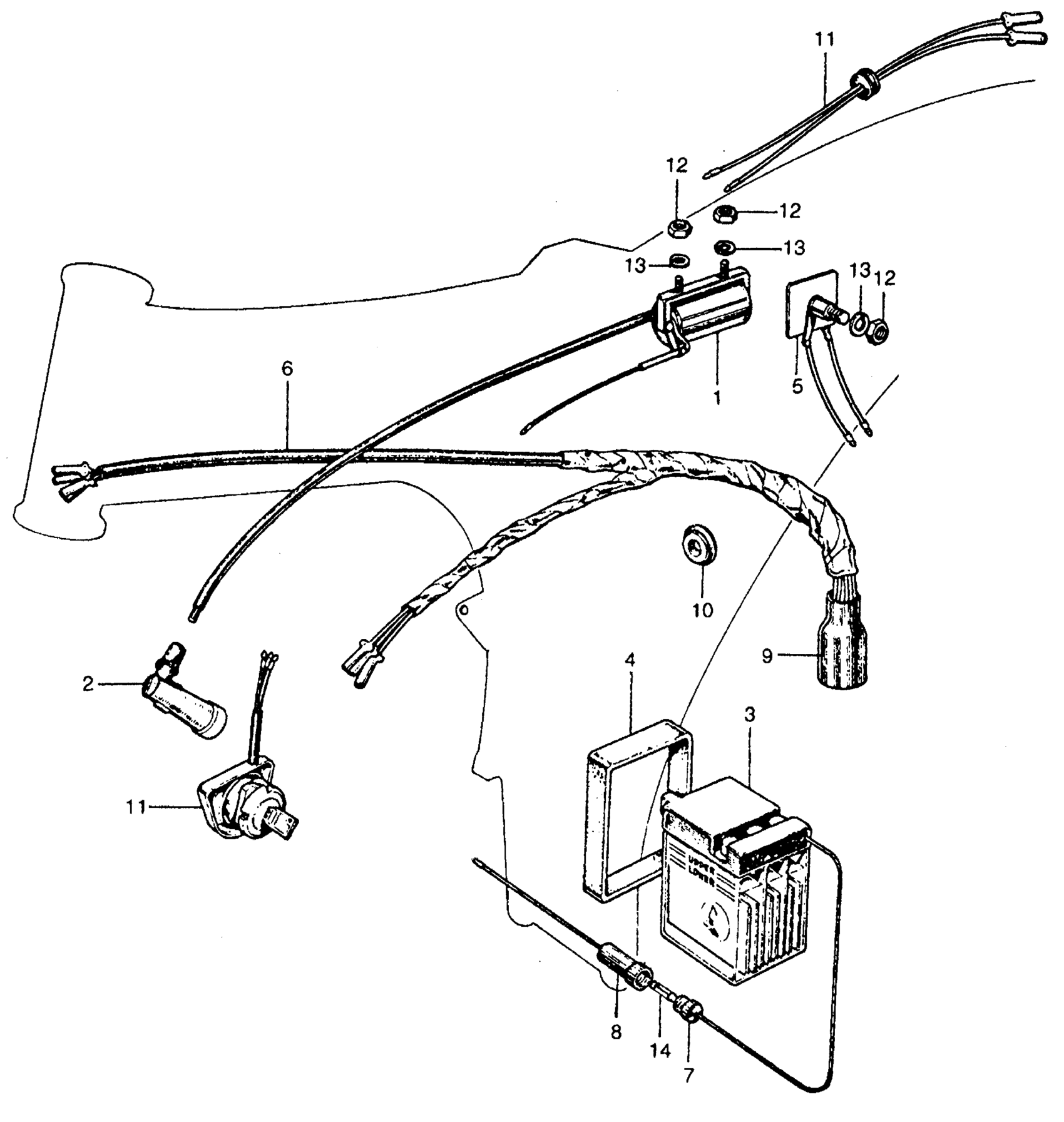

Honda S65A MOTORCYCLE, JPN, VIN# S65-A000001 WIRE HARNESS Diagram

COIL ASSY., IGNITION This part replaces 30500-035-305.

30500-035-405

Unavailable

CAP ASSY. This part replaces 30700-MG7-000.

30700-MG7-003

$14.30

CAP ASSY. This part replaces 30700-243-610.

30700-MG7-003

$14.30

CAP ASSY. This part replaces 30700-259-600.

30700-MG7-003

$14.30

BATTERY ASSY. (NOT AVAILABLE)

31500-035-000

Unavailable

BATTERY (6N2) This part replaces 31500-035-672.

31500-147-505AH

Unavailable

BATTERY (6N2) This part replaces 31500-147-505.

31500-147-505AH

Unavailable

BATTERY (6N2) This part replaces 31500-147-672.

31500-147-505AH

Unavailable

RUBBER, BATTERY MOUNT (NOT AVAILABLE)

31501-035-000

Unavailable

RECTIFIER, SELENIUM (NOT AVAILABLE) This part replaces 31700-011-010.

31700-001-305

Unavailable

WIRE HARNESS (NOT AVAILABLE)

32100-011-020

Unavailable

CONNECTOR B, FUSE (NOT AVAILABLE)

32106-253-010

Unavailable

CONNECTOR A, FUSE (NOT AVAILABLE)

32112-253-010

Unavailable

COVER, WIRE HARNESS CONNECTOR (NOT AVAILABLE)

32937-011-000

Unavailable

GROMMET, WIRE HARNESS

32983-011-000

$3.31

SWITCH KIT, COMBINATION (NOT AVAILABLE)

35010-035-000

Unavailable

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

FUSE A (7A) This part replaces 38201-001-000.

98200-10700

$1.49

FUSE A (7A)

98200-10700

$1.49
