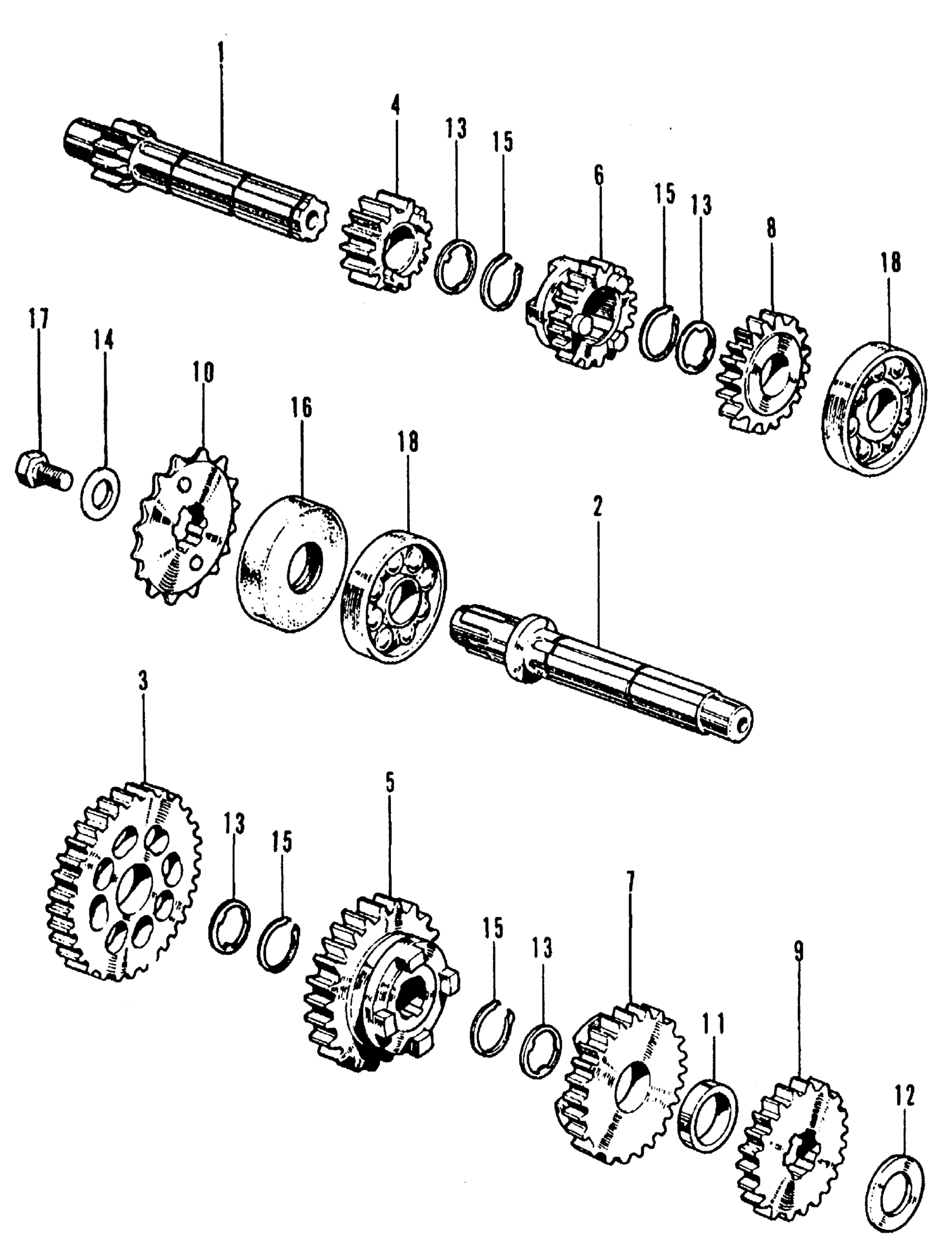

Honda S65A MOTORCYCLE, JPN, VIN# S65-A000001 TRANSMISSION Diagram

#

Description
Price

1

MAINSHAFT, TRANSMISSION | Use up to Engine SN A038005 This part replaces 23211-035-000.

23211-035-020

Unavailable

1

MAINSHAFT, TRANSMISSION | Use up to Engine SN A038005 This part replaces 23211-035-010.

23211-035-020

Unavailable

1

MAINSHAFT, TRANSMISSION | Use up to Engine SN A038005

23211-035-020

Unavailable

1

MAINSHAFT, TRANSMISSION

23211-035-020

Unavailable

2

COUNTERSHAFT, TRANSMISSION | Use up to Engine SN A060471

23221-035-000

Unavailable

2

COUNTERSHAFT, TRANSMISSION (NOT AVAILABLE) | Use from Engine SN A060472 to B007040

23221-035-010

Unavailable

3

GEAR, COUNTERSHAFT LOW

23421-035-000

Unavailable

4

GEAR, MAINSHAFT SECOND | Use up to Engine SN A038005 This part replaces 23431-035-000.

23431-035-811

Unavailable

4

GEAR, MAINSHAFT SECOND | Use up to Engine SN A038005

23431-035-811

Unavailable

4

GEAR, MAINSHAFT SECOND | Use from Engine SN A044801

23431-035-811

Unavailable

5

GEAR, SECOND COUNTERSHAFT | Use up to Engine SN A044800 This part replaces 23441-035-000.

23441-035-810

Unavailable

5

GEAR, SECOND COUNTERSHAFT | Use up to Engine SN A044800

23441-035-810

Unavailable

5

GEAR, SECOND COUNTERSHAFT

23441-035-810

Unavailable

6

GEAR, THIRD MAINSHAFT | Use up to Engine SN A044800 This part replaces 23451-035-000.

23451-035-810

Unavailable

6

GEAR, THIRD MAINSHAFT | Use up to Engine SN A044800

23451-035-810

Unavailable

6

GEAR, THIRD MAINSHAFT

23451-035-810

Unavailable

7

GEAR, THIRD COUNTERSHAFT | Use up to Engine SN A044800 This part replaces 23461-035-000.

23461-035-810

Unavailable

7

GEAR, THIRD COUNTERSHAFT | Use up to Engine SN A044800

23461-035-810

Unavailable

7

GEAR, THIRD COUNTERSHAFT

23461-035-810

Unavailable

8

GEAR, MAINSHAFT TOP

23471-035-000

Unavailable

9

GEAR, COUNTERSHAFT TOP

23481-035-000

Unavailable

10

SPROCKET, DRIVE (NOT AVAILABLE) This part replaces 23800-035-000.

23800-035-010

Unavailable

10

SPROCKET, DRIVE (NOT AVAILABLE)

23800-035-010

Unavailable

11

COLLAR, GEAR

23911-035-000

Unavailable

12

WASHER (13.5MM)

90451-035-000

Unavailable

13

WASHER, SPLINE (17MM) This part replaces 90461-001-000.

90461-035-000

$2.57

13

WASHER, SPLINE (17MM)

90461-035-000

$2.57

14

WASHER, THRUST (14MM)

90485-035-000

$2.92

15

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

16

OIL SEAL (17X29X5) (NOK) This part replaces 91203-035-000.

91203-035-005

$8.91

16

OIL SEAL (17X29X5) (NOK)

91203-035-005

$8.91

17

BOLT, HEX. (8X14) This part replaces 92000-08014.

92101-08014-0A

$1.61

17

BOLT, HEX. (8X14) This part replaces 92000-08014-0A.

92101-08014-0A

$1.61

17

BOLT, HEX. (8X14)

92101-08014-0A

$1.61

18

BEARING, RADIAL BALL (6203) This part replaces 96100-62030.

96100-62030-00

$8.70

18

BEARING, RADIAL BALL (6203)

96100-62030-00

$8.70
