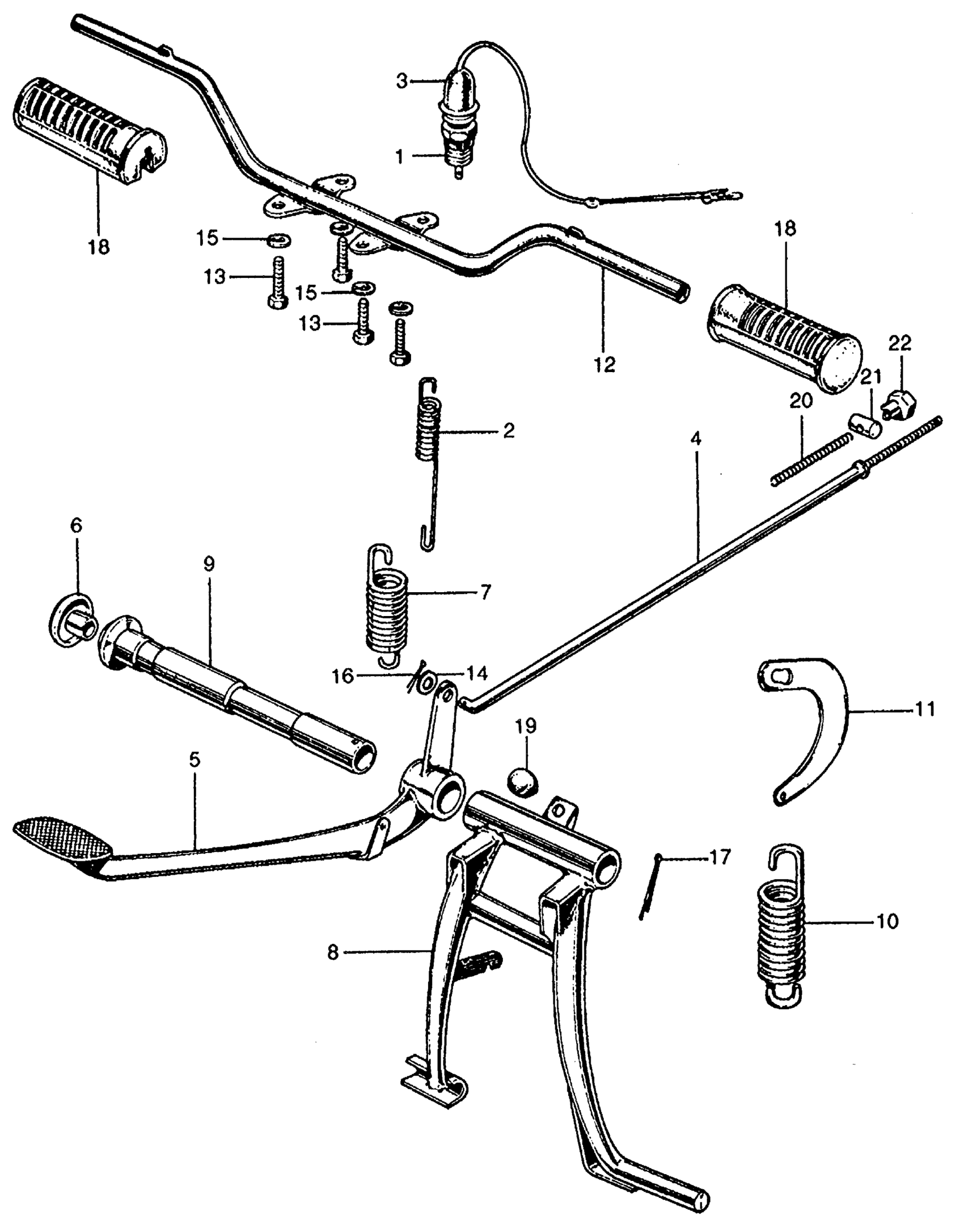

Honda S65A MOTORCYCLE, JPN, VIN# S65-A000001 STAND + STEP Diagram

#

Description
Price

1

SWITCH ASSY., STOP (NOT AVAILABLE)

35350-011-000

Unavailable

2

SPRING, STOP SWITCH

35357-011-000

$2.46

3

COVER, STOP SWITCH TERMINAL (NOT AVAILABLE)

35361-011-000

Unavailable

4

ROD, BRAKE (NOT AVAILABLE)

43451-030-000

Unavailable

5

PEDAL, BRAKE This part replaces 46500-011-010.

46500-035-670

Unavailable

6

CAP, RR. BRAKE PIVOT PIPE (NOT AVAILABLE)

46513-011-000

Unavailable

7

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-011-010

Unavailable

8

STAND, MAIN *NH1* This part replaces 50500-035-000B.

50500-035-670B

Unavailable

9

PIPE, RR. BRAKE PIVOT This part replaces 50512-011-000.

50512-087-820

Unavailable

9

PIPE, RR. BRAKE PIVOT

50512-087-820

Unavailable

10

SPRING, STAND This part replaces 50522-035-000.

95014-71302

Unavailable

10

SPRING, STAND

95014-71302

Unavailable

11

HOOK, MAIN STAND SPRING

50523-035-000

Unavailable

12

BAR, STEP *NH1* (BLACK) This part replaces 50610-035-000B.

50610-065-000ZA

Unavailable

12

BAR, STEP *NH1* (BLACK)

50610-065-000ZA

Unavailable

13

BOLT, HEX. (8X22) This part replaces 90061-030-000.

92101-08022-0A

Unavailable

13

BOLT, HEX. (8X22) This part replaces 92000-08022.

92101-08022-0A

Unavailable

13

BOLT, HEX. (8X22) This part replaces 92000-08022-0A.

92101-08022-0A

Unavailable

13

BOLT, HEX. (8X22)

92101-08022-0A

Unavailable

14

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

14

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

14

WASHER, PLAIN (6MM)

94101-06800

$1.49

15

WASHER, SPRING (8MM)

94111-08000

$1.49

16

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

16

PIN, COTTER (1.6X25)

94201-16250

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

17

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

17

PIN, COTTER (3.0X45)

94201-30450

$1.49

18

RUBBER, STEP This part replaces 50661-051-000.

95011-21000

$8.33

18

RUBBER, STEP

95011-21000

$8.33

19

RUBBER B, STAND STOPPER This part replaces 50524-011-000.

95011-62000

$1.49

19

RUBBER B, STAND STOPPER

95011-62000

$1.49

20

SPRING A, BRAKE ROD This part replaces 43472-001-000.

95014-73100

$1.49

20

SPRING A, BRAKE ROD This part replaces 43472-212-000.

95014-73100

$1.49

20

SPRING A, BRAKE ROD

95014-73100

$1.49

20

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

21

JOINT A, BRAKE ARM This part replaces 45461-001-000.

95015-31001

$1.53

21

JOINT A, BRAKE ARM This part replaces 95015-31000.

95015-31001

$1.53

21

JOINT A, BRAKE ARM

95015-31001

$1.53

22

NUT A, BRAKE ROD ADJUSTING This part replaces 45462-028-000.

95015-41000

$1.49

22

NUT A, BRAKE ROD ADJUSTING

95015-41000

$1.49
