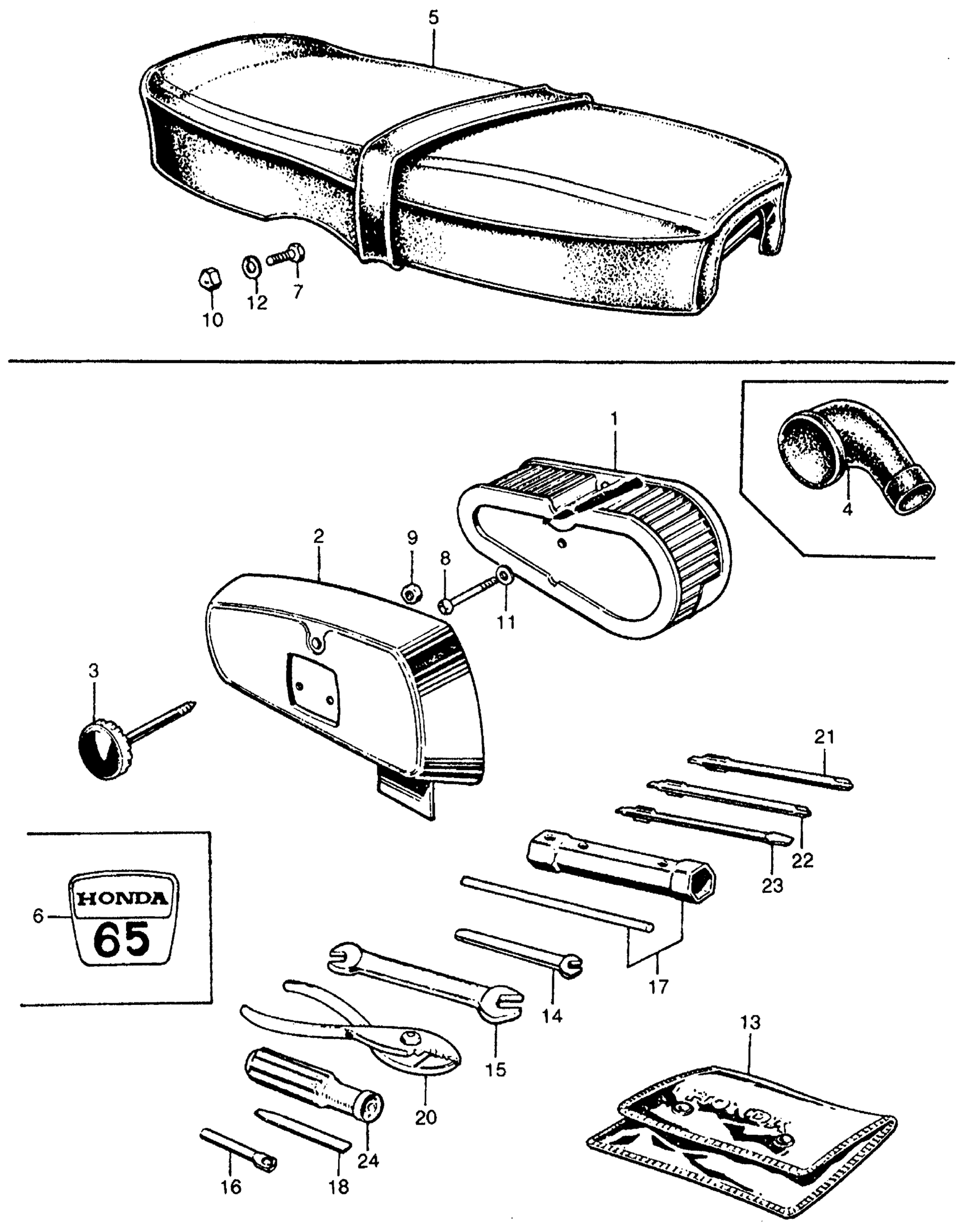

Honda S65A MOTORCYCLE, JPN, VIN# S65-A000001 SEAT + AIR CLEANER + TOOL Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER (NOT AVAILABLE)

17211-035-000

Unavailable

2

COVER, AIR CLEANER *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

17221-035-000A

Unavailable

2

COVER, AIR CLEANER *NH1* (BLACK) (NOT AVAILABLE)

17221-035-000B

Unavailable

2

COVER, AIR CLEANER *R2* (SCARLET) (NOT AVAILABLE)

17221-035-000C

Unavailable

3

LATCH, AIR CLEANER COVER *NH1* (BLACK) (NOT AVAILABLE)

17251-030-000B

Unavailable

4

PIPE, AIR CLEANER INLET (NOT AVAILABLE)

17253-035-000

Unavailable

5

SEAT (NOT AVAILABLE)

77200-035-680

Unavailable

6

EMBLEM, SIDE COVER (NOT AVAILABLE)

87127-035-680

Unavailable

7

BOLT, HEX. (8X14) This part replaces 92000-08014.

92101-08014-0A

$1.61

7

BOLT, HEX. (8X14) This part replaces 92000-08014-0A.

92101-08014-0A

$1.61

7

BOLT, HEX. (8X14)

92101-08014-0A

$1.61

8

SCREW, PAN (6X70) This part replaces 93500-06070.

93500-06070-0A

$1.49

8

SCREW, PAN (6X70)

93500-06070-0A

$1.49

9

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

9

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

9

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

9

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

9

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

9

NUT, HEX. (6MM)

94001-06200-0S

$1.49

9

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

10

NUT, CAP (8MM) This part replaces 94021-08020.

94021-08020-0S

$1.82

10

NUT, CAP (8MM)

94021-08020-0S

$1.82

10

NUT, CAP (8MM) This part replaces 94021-08060-0S.

94021-08020-0S

$1.82

10

NUT, CAP (8MM) This part replaces 94021-08090-0S.

94021-08020-0S

$1.82

10

NUT, CAP (8MM) This part replaces 94022-08020-0S.

94021-08020-0S

$1.82

11

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

11

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

11

WASHER, PLAIN (6MM)

94101-06800

$1.49

12

WASHER, SPRING (8MM)

94111-08000

$1.49

13

BAG, TOOL (NOT AVAILABLE)

89101-011-000

Unavailable

14

SPANNER (9MM) (N/A: SEE ASSEMBLY)

89203-200-000

Unavailable

15

WRENCH, BOX (23MM) (NOT AVAILABLE)

89214-001-000

Unavailable

16

WRENCH, SOCKET (3MM)

89215-001-000

Unavailable

16

WRENCH, SOCKET (3MM) (NOT AVAILABLE)

89215-107-000

Unavailable

17

WRENCH, SPARK PLUG

89216-041-000

Unavailable

17

WRENCH, SPARK PLUG

89216-041-010

Unavailable

17

WRENCH, BOX (P16X17)

99004-16170

$4.08

18

GAUGE, TAPPET CLEARANCE

89231-001-000

Unavailable

19

WRENCH (10X14) (OPEN END)

99001-10140

$2.92

20

PLIERS (135) (KOWA) This part replaces 99002-13500.

89210-GBJ-J10

$13.57

21

SCREWDRIVER 1, PHILLIPS (NO.2)

99003-10000

$3.27

22

SCREWDRIVER 2, PHILLIPS (NO.3)

99003-20000

$3.27

23

SCREWDRIVER 3, STRAIGHT SLOT (NO.2)

99003-30000

$3.27

24

GRIP

99003-50000

$3.27
