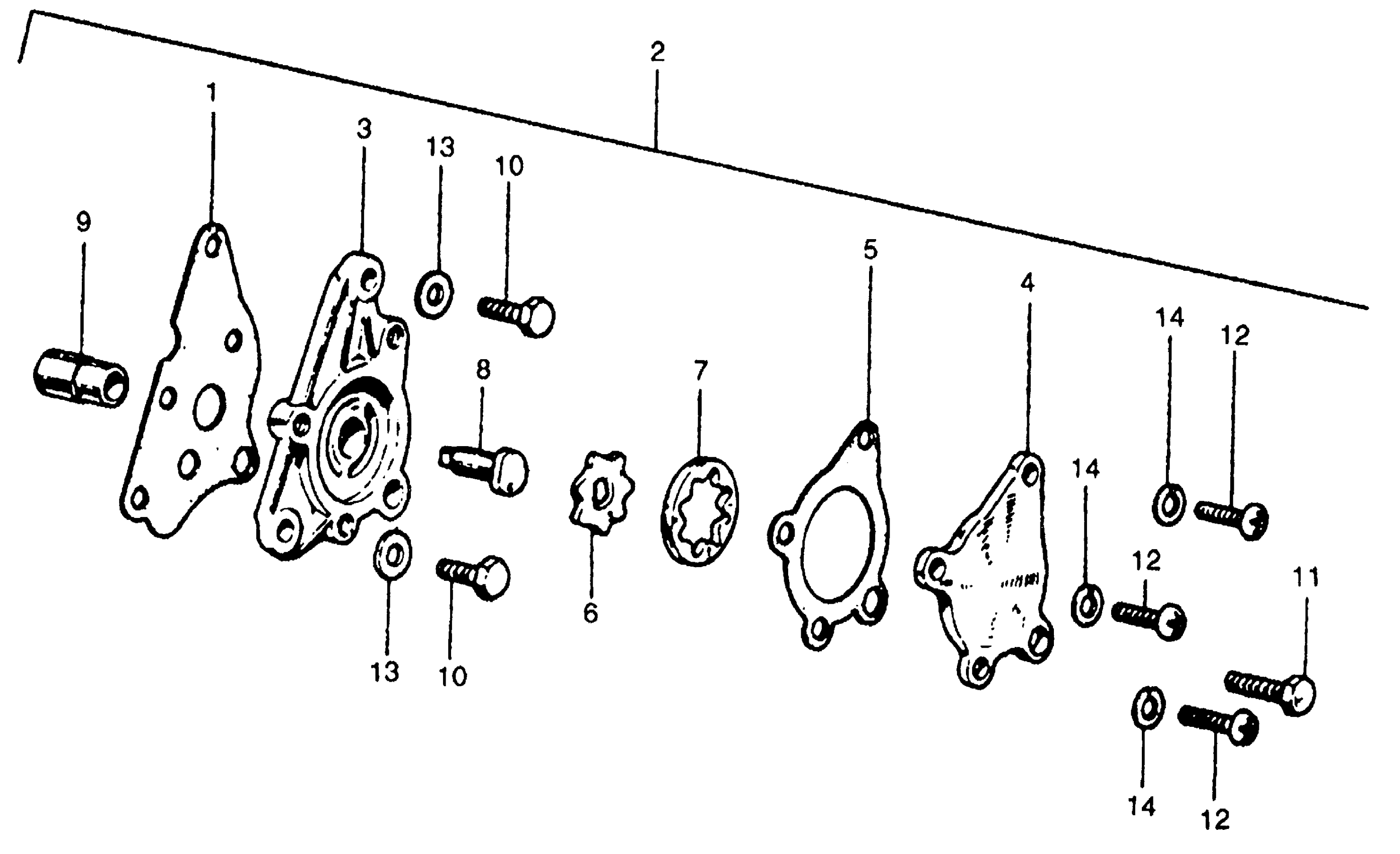

Honda S65A MOTORCYCLE, JPN, VIN# S65-A000001 OIL PUMP (TROICHOID) Diagram

#

Description
Price

1

GASKET, OIL PUMP BODY | Use from Engine SN A068142

15119-035-020

Unavailable

2

PUMP ASSY., OIL | Use from Engine SN B502117

15300-035-000

Unavailable

3

BODY, OIL PUMP (NOT AVAILABLE) | Use from Engine SN B002117 This part replaces 15311-035-000.

15311-035-013

Unavailable

3

BODY, OIL PUMP (NOT AVAILABLE) | Use from Engine SN B002117

15311-035-013

Unavailable

4

COVER, OIL PUMP (NOT AVAILABLE) | Use from Engine SN B002117

15321-035-000

Unavailable

5

GASKET, OIL PUMP COVER | Use from Engine SN B002117 This part replaces 15329-035-000.

15329-035-003

$4.24

5

GASKET, OIL PUMP COVER | Use from Engine SN B002117

15329-035-003

$4.24

6

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE) | Use from Engine SN B002117 This part replaces 15331-035-000.

15331-035-004

Unavailable

6

ROTOR, OIL PUMP (INNER) (NOT AVAILABLE) | Use from Engine SN B002117

15331-035-004

Unavailable

7

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE) | Use from Engine SN B002117 This part replaces 15332-035-000.

15332-035-004

Unavailable

7

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE) | Use from Engine SN B002117

15332-035-004

Unavailable

8

DRIVESHAFT, OIL PUMP (NOT AVAILABLE) | Use from Engine SN B002117 This part replaces 15382-035-000.

15382-035-003

Unavailable

8

DRIVESHAFT, OIL PUMP (NOT AVAILABLE) | Use from Engine SN B002117

15382-035-003

Unavailable

9

PIN, OIL PUMP KNOCK | Use from Engine SN B002117 This part replaces 15383-035-000.

15383-035-003

Unavailable

9

PIN, OIL PUMP KNOCK | Use from Engine SN B002117

15383-035-003

Unavailable

10

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

10

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

11

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

11

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

11

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

12

SCREW, PAN (5X10) This part replaces 93500-05010.

93500-05010-0A

$1.49

12

SCREW, PAN (5X10)

93500-05010-0A

$1.49

12

SCREW, PAN (5X10) This part replaces 93500-05010-1A.

93500-05010-0A

$1.49

12

SCREW, PAN (5X10) This part replaces 93510-05010-0A.

93500-05010-0A

$1.49

13

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

13

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

13

WASHER, PLAIN (6MM)

94101-06800

$1.49

14

WASHER, SPRING (5MM)

94111-05000

$1.49
