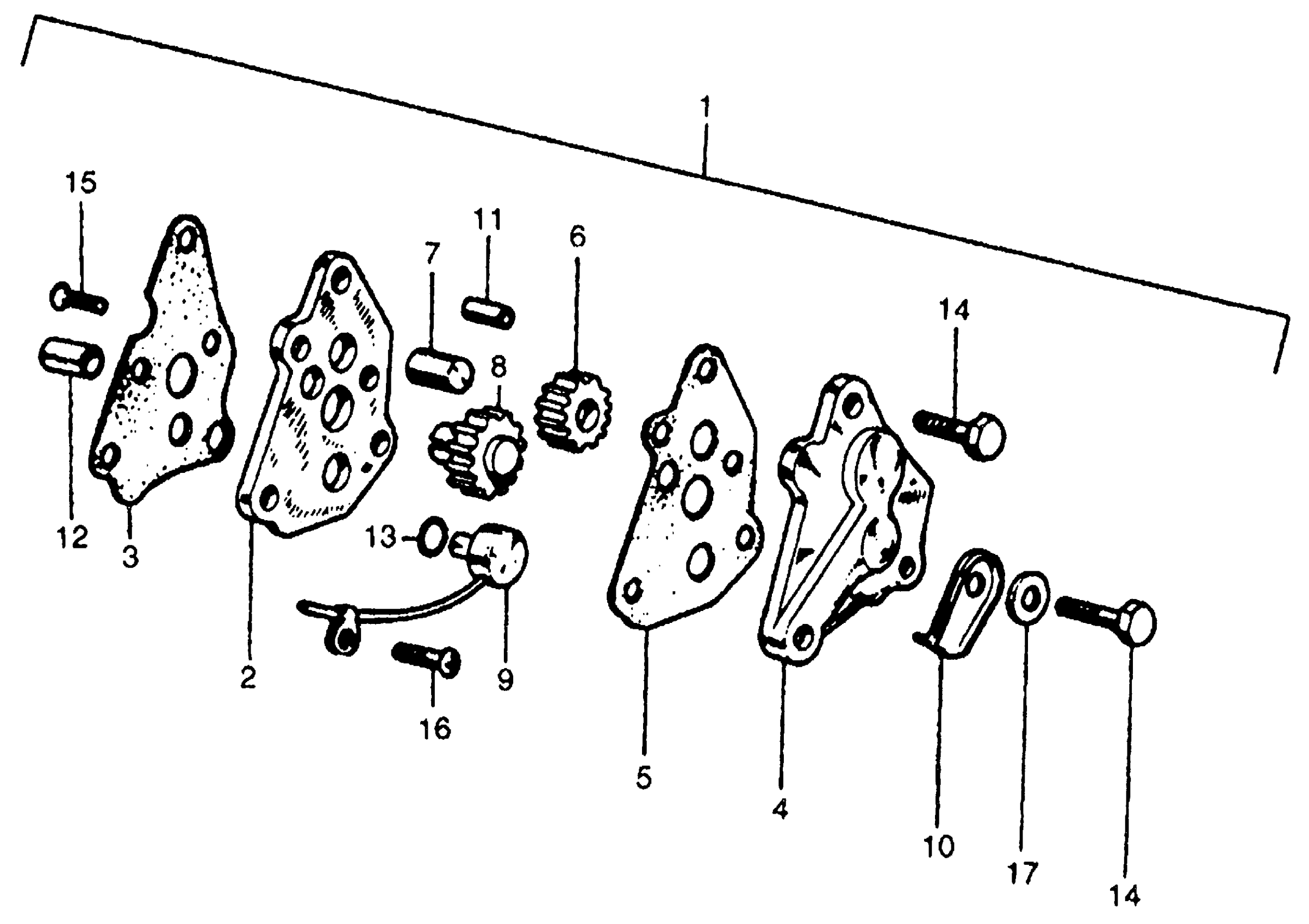

Honda S65A MOTORCYCLE, JPN, VIN# S65-A000001 OIL PUMP (GEAR) Diagram

#

Description
Price

1

PUMP ASSY., OIL | Use up to Engine SN A031030 This part replaces 15100-035-010.

15100-035-325

Unavailable

1

PUMP ASSY., OIL | Use from Engine SN A068142 to A087115

15100-035-020

Unavailable

1

PUMP ASSY., OIL | Use from Engine SN A087116

15100-035-030

Unavailable

1

PUMP ASSY., OIL | Use up to Engine SN A068141

15100-035-325

Unavailable

2

BODY, OIL PUMP | Use up to Engine SN A031030 This part replaces 15111-035-010.

15111-035-325

Unavailable

2

BODY, OIL PUMP | Use from Engine SN A068142

15111-035-020

Unavailable

2

BODY, OIL PUMP | Use up to Engine SN A068141

15111-035-325

Unavailable

3

GASKET, OIL PUMP BODY (NOT AVAILABLE) | Use up to Engine SN A068141

15119-035-010

Unavailable

3

GASKET, OIL PUMP BODY | Use from Engine SN A068142

15119-035-020

Unavailable

4

COVER, OIL PUMP

15121-035-010

Unavailable

5

GASKET, OIL PUMP COVER (NOT AVAILABLE)

15129-035-000

Unavailable

6

GEAR B, OIL PUMP

15141-035-020

Unavailable

7

SHAFT, PUMP DRIVEN GEAR

15161-035-020

Unavailable

8

GEAR, OIL PUMP DRIVE | Use up to Engine SN A087115

15180-035-010

Unavailable

8

GEAR, OIL PUMP DRIVE | Use from Engine SN A087116

15180-035-020

Unavailable

9

PIPE, OIL (NOT AVAILABLE)

15530-040-000

Unavailable

10

PLATE, OIL PIPE STOPPER (NOT AVAILABLE)

15585-035-000

Unavailable

11

PIN, KNOCK 5 (8X9) (NOT AVAILABLE)

90702-035-000

Unavailable

12

PIN A, KNOCK (11X9) (NOT AVAILABLE)

90703-035-010

Unavailable

13

O-RING (6X1.7) | Use up to Engine SN A031030

91317-171-003

$2.92

13

O-RING (6X1.7) (ARAI) | Use up to Engine SN A031030 This part replaces 91317-703-000.

91317-171-003

$2.92

14

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

14

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

14

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

15

SCREW, PAN (4X8) This part replaces 93500-04008.

93500-04008-0A

$1.49

15

SCREW, PAN (4X8)

93500-04008-0A

$1.49

15

SCREW, PAN (4X8) This part replaces 93500-04008-1A.

93500-04008-0A

$1.49

16

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

16

SCREW, PAN (6X12)

93500-06012-0A

$1.49

16

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

17

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

17

WASHER, PLAIN (6MM)

94101-06800

$1.49
