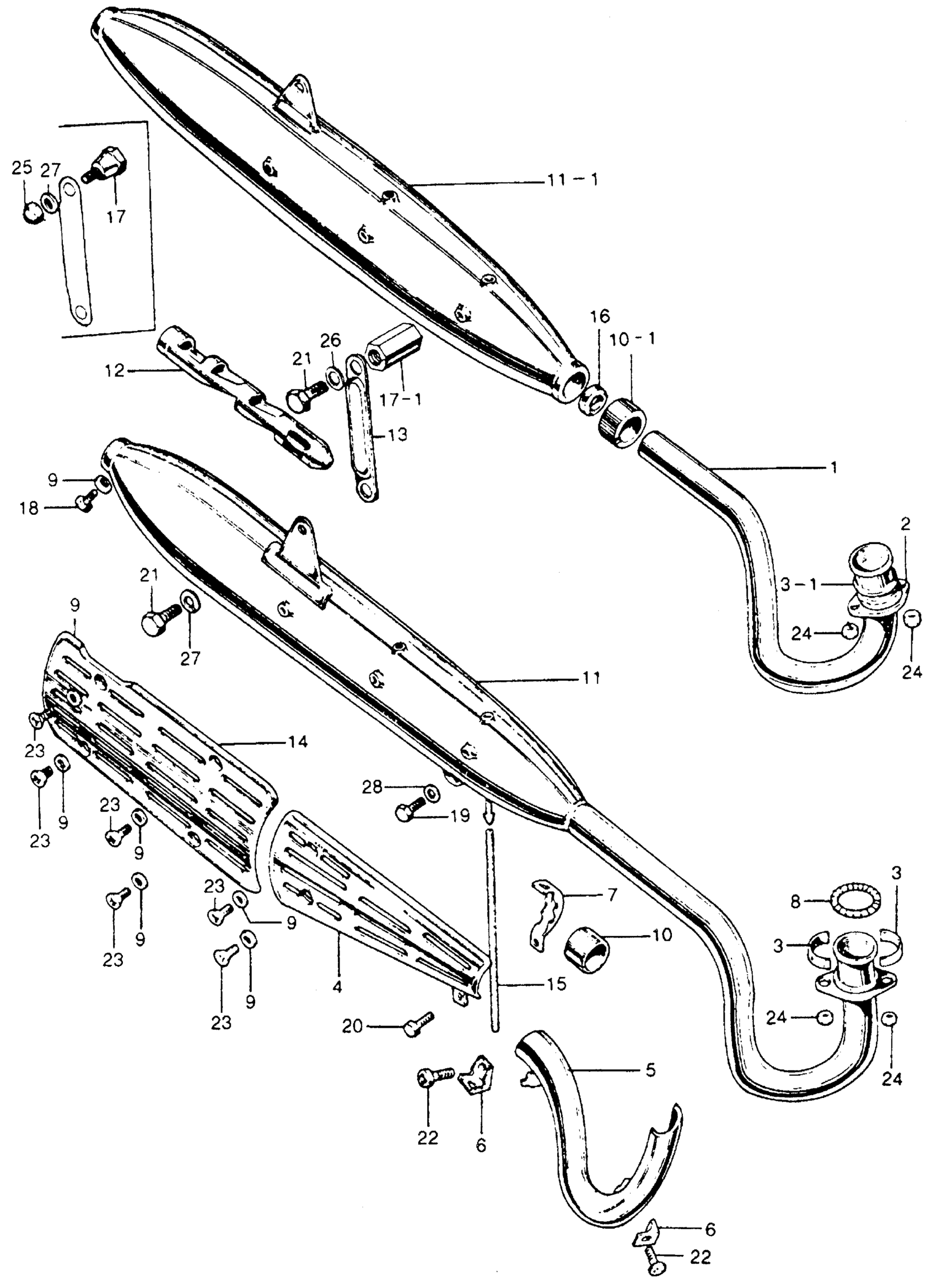

Honda S65A MOTORCYCLE, JPN, VIN# S65-A000001 MUFFLER Diagram

#

Description
Price

1

MUFFLER (NOT AVAILABLE)

18200-035-000

Unavailable

2

JOINT, EX. PIPE (NOT AVAILABLE)

18231-035-000

Unavailable

3

COLLAR, EX. PIPE JOINT (NOT AVAILABLE)

18233-035-000

Unavailable

3

COLLAR, EX. PIPE JOINT | Use from Frame SN A091798

18233-051-000

$2.56

4

PROTECTOR, EX. PIPE (NOT AVAILABLE) | Use up to Frame SN B007481

18240-035-000

Unavailable

5

COVER, EX. PIPE (NOT AVAILABLE)

18271-035-010

Unavailable

6

BAND B, EX. COVER MOUNT

18272-220-000

Unavailable

7

BAND, PROTECTOR SETTING

18281-011-000

$6.17

8

GASKET, EX. PIPE

18291-HB2-900

$3.72

8

GASKET, EX. PIPE This part replaces 18291-001-010.

18291-HB2-900

$3.72

8

GASKET, EX. PIPE This part replaces 18291-001-306.

18291-HB2-900

$3.72

9

WASHER, PLAIN (5MM)

94101-05000

$1.49

10

GASKET, MUFFLER | Use up to Frame SN A091797 This part replaces 18293-011-000.

18391-HB7-000

$11.62

10

GASKET, MUFFLER | Use from Frame SN A091798 This part replaces 18293-035-000.

18391-HB7-000

$11.62

10

GASKET, MUFFLER

18391-HB7-000

$11.62

11

MUFFLER This part replaces 18300-035-670.

18300-035-677

Unavailable

11

MUFFLER

18300-035-677

Unavailable

12

PIPE, EX. DIFFUSER (NOT AVAILABLE)

18311-035-010

Unavailable

13

STAY, RR. MUFFLER (NOT AVAILABLE)

18353-035-000Z

Unavailable

14

PROTECTOR, MUFFLER (NOT AVAILABLE)

18361-035-000

Unavailable

15

PIPE, MUFFLER DRAIN

18381-011-010

Unavailable

16

GASKET, MUFFLER (NOT AVAILABLE)

18391-011-000

Unavailable

17

SCREW, MUFFLER CLAMP (NOT AVAILABLE)

90165-001-810

Unavailable

18

BOLT, HEX. (5X8) This part replaces 92000-05008-4J.

92101-05008-4J

$2.16

18

BOLT, HEX. (5X8)

92101-05008-4J

$2.16

19

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

19

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

20

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

21

BOLT, HEX. (8X14) This part replaces 92000-08014.

92101-08014-0A

$1.61

21

BOLT, HEX. (8X14) This part replaces 92000-08014-0A.

92101-08014-0A

$1.61

21

BOLT, HEX. (8X14)

92101-08014-0A

$1.61

22

SCREW, PAN (5X14) This part replaces 93500-05014.

93500-05014-0A

$1.49

22

SCREW, PAN (5X14)

93500-05014-0A

$1.49

23

SCREW, OVAL (6X8) (NOT AVAILABLE)

93700-06008

Unavailable

24

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

24

NUT, HEX. (6MM)

94001-06200-0S

$1.49

24

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

25

NUT, CAP (8MM) This part replaces 94021-08020.

94021-08020-0S

$1.82

25

NUT, CAP (8MM)

94021-08020-0S

$1.82

25

NUT, CAP (8MM) This part replaces 94021-08060-0S.

94021-08020-0S

$1.82

25

NUT, CAP (8MM) This part replaces 94021-08090-0S.

94021-08020-0S

$1.82

25

NUT, CAP (8MM) This part replaces 94022-08020-0S.

94021-08020-0S

$1.82

26

WASHER, PLAIN (8MM)

94101-08000

$1.49

27

WASHER, SPRING (8MM)

94111-08000

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

28

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

28

WASHER, PLAIN (6MM)

94101-06800

$1.49
