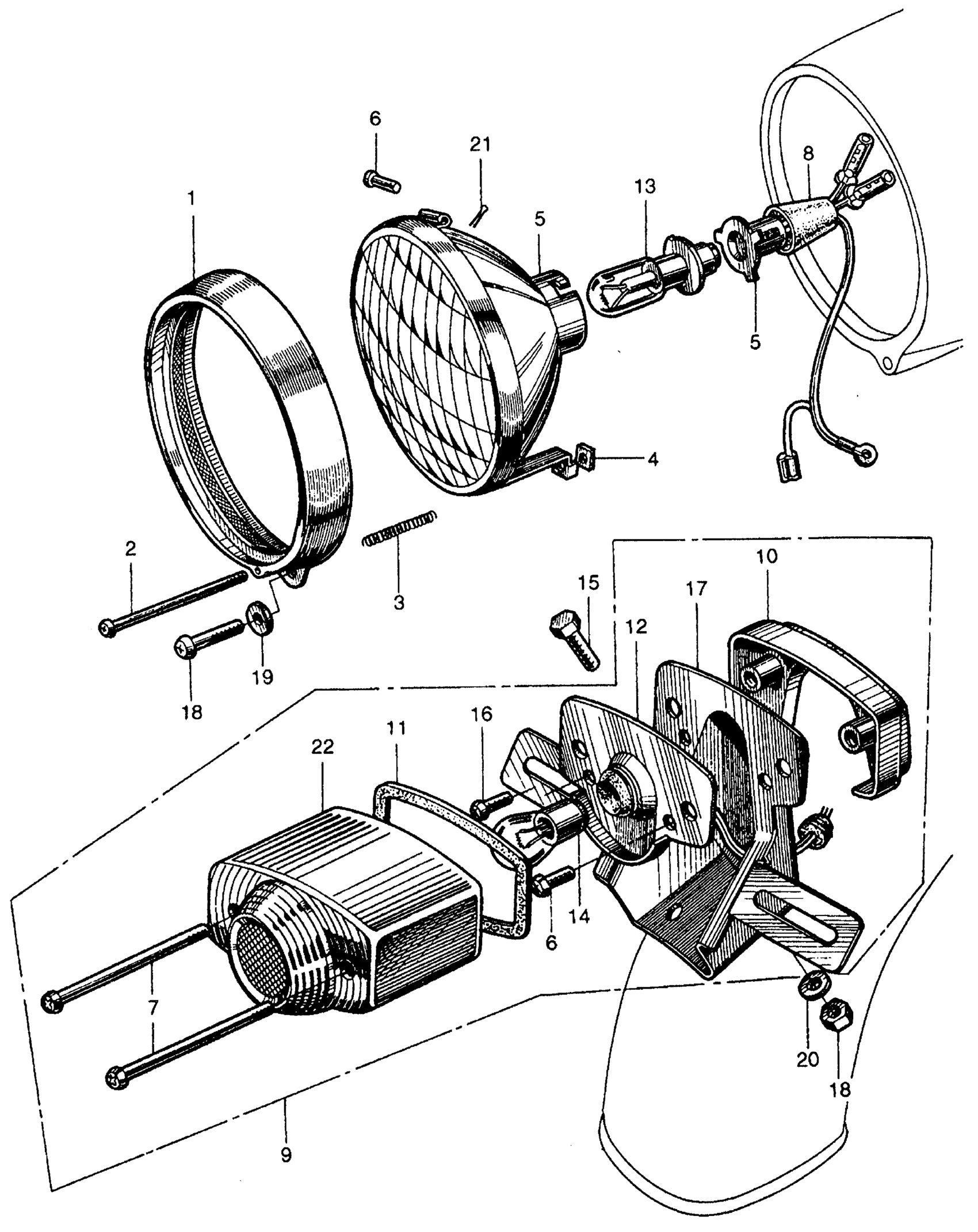

Honda S65A MOTORCYCLE, JPN, VIN# S65-A000001 HEADLIGHT + TAILLIGHT Diagram

#

Description
Price

1

RIM, HEADLIGHT (NOT AVAILABLE) | Use from Frame SN A006561 to A069157 This part replaces 33101-001-003.

33101-005-000

Unavailable

1

RIM, HEADLIGHT (NOT AVAILABLE) | Use from Frame SN A006561 to A069157

33101-005-000

Unavailable

1

RIM, HEADLIGHT | Use from Frame SN A069158

33101-034-811

Unavailable

2

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) (NOT AVAILABLE) | Use from Frame SN A006561 to A069157

33102-001-003

Unavailable

3

SPRING, HEADLIGHT BEAM ADJUSTING (NOT AVAILABLE) | Use from Frame SN A006561 to A069157 This part replaces 33107-001-003.

33107-001-020

Unavailable

3

SPRING, HEADLIGHT BEAM ADJUSTING (NOT AVAILABLE) | Use from Frame SN A006561 to A069157

33107-001-020

Unavailable

4

NUT, HEADLIGHT BEAM ADJ. | Use from Frame SN A006561 to A069157

33117-001-003

Unavailable

4

NUT, HEADLIGHT BEAM ADJ. | Use from Frame SN A069158

33117-001-003

Unavailable

5

LENS, HEADLIGHT | Use from Frame SN A006561 to A069157 This part replaces 33121-001-033.

33121-005-000

Unavailable

5

LENS, HEADLIGHT | Use from Frame SN A006561 to A069157 This part replaces 33121-001-043.

33121-005-000

Unavailable

5

LENS, HEADLIGHT | Use from Frame SN A006561 to A069157

33121-005-000

Unavailable

5

HEADLIGHT UNIT (NOT AVAILABLE) | Use from Frame SN A069158

33121-040-810

Unavailable

6

PIN, HOLDER (NOT AVAILABLE) | Use from Frame SN A006561 to A069157

33125-001-013

Unavailable

6

PIN, HOLDER (NOT AVAILABLE) | Use from Frame SN A069158

33125-034-810

Unavailable

7

SCREW, OVAL (3X60) This part replaces 93700-03060.

93700-03060-0A

$0.98

7

SCREW, OVAL (3X60)

93700-03060-0A

$0.98

7

SCREW, OVAL (3X60) This part replaces 93700-03060-0B.

93700-03060-0A

$0.98

7

SCREW, OVAL (3X60) This part replaces 93700-03060-02.

93700-03060-0A

$0.98

8

SOCKET, HEADLIGHT (NOT AVAILABLE) | Use from Frame SN A006561 to A069157

33130-022-000

Unavailable

8

SOCKET ASSY., HEADLIGHT (NOT AVAILABLE) | Use from Frame SN A069158

33130-035-810

Unavailable

9

TAILLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN A006561

33700-035-670

Unavailable

10

PLATE, TAILLIGHT LENS HOLDER | Use from Frame SN A006561

33705-268-670

Unavailable

11

GASKET, TAILLIGHT LENS | Use from Frame SN A006561

33709-268-810

Unavailable

12

SOCKET ASSY., TAILLIGHT (NOT AVAILABLE) | Use from Frame SN A006561

33710-011-671

Unavailable

13

BULB, HEADLIGHT (6V15/15W) (STANLEY)

34901-001-025

$19.11

13

BULB, HEADLIGHT (6V15/15W) (STANLEY) This part replaces 34901-001-671.

34901-001-025

$19.11

14

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) | Use from Frame SN A006561

34906-202-670

$11.50

15

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

16

SCREW, PAN (4X10) This part replaces 93500-04010.

93500-04010-0A

$1.49

16

SCREW, PAN (4X10)

93500-04010-0A

$1.49

16

SCREW, PAN (4X10) This part replaces 93500-04010-1A.

93500-04010-0A

$1.49

17

SCREW, PAN (5X12)

93500-05012-0B

$1.49

18

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

18

NUT, HEX. (6MM)

94001-06200-0S

$1.49

18

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

19

WASHER, PLAIN (5MM)

94101-05000

$1.49

20

WASHER, SPRING (6MM)

94111-06000

$1.49

21

PIN, COTTER (1.2X8)

94201-12080

Unavailable

22

LENS, TAILLIGHT

33701-268-680

Unavailable
