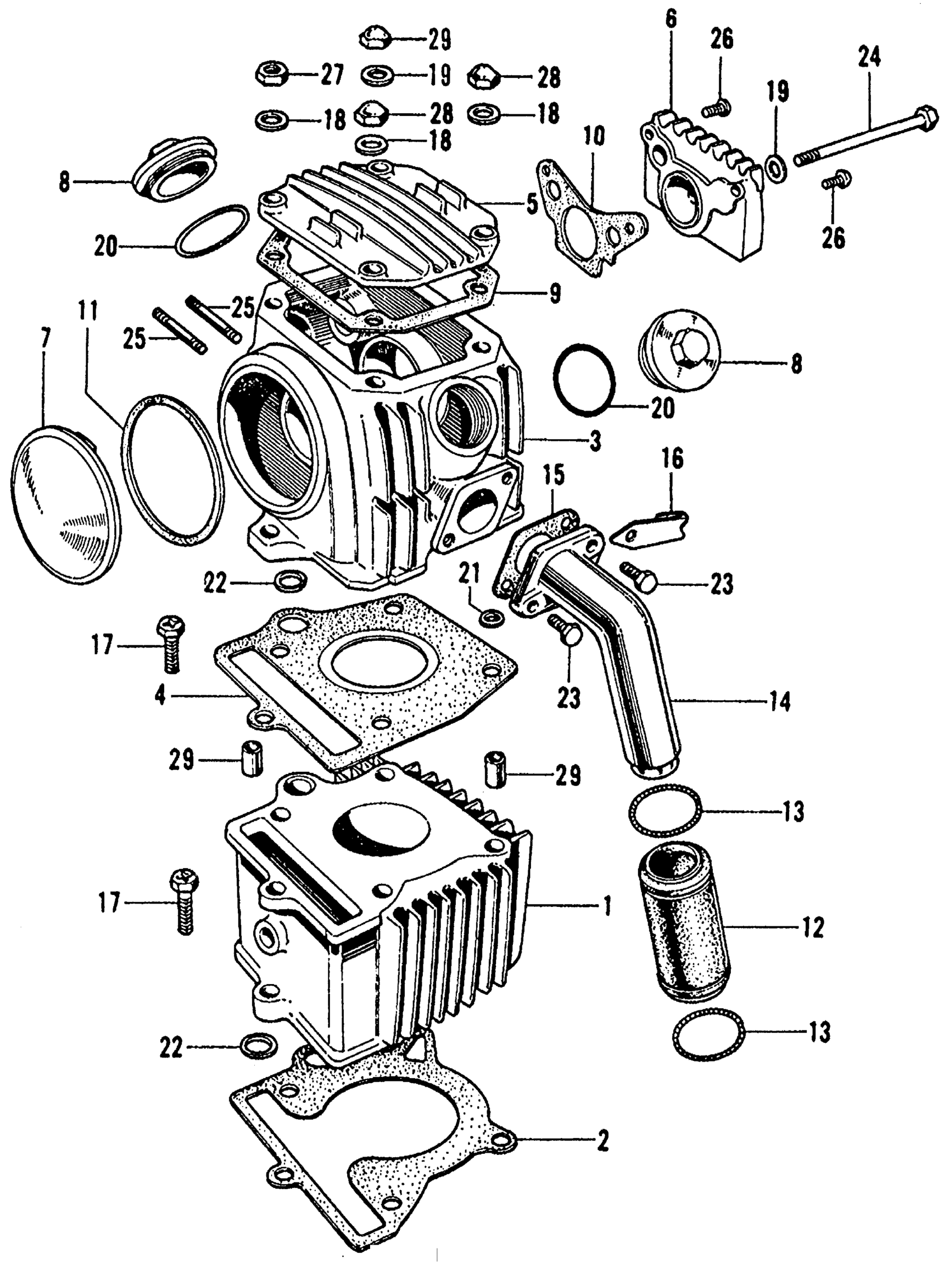

Honda S65A MOTORCYCLE, JPN, VIN# S65-A000001 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER (NOT AVAILABLE) | Use up to Engine SN B002437

12101-035-600

Unavailable

1

CYLINDER (NOT AVAILABLE) | Use from Engine SN B002438

12101-035-602

Unavailable

2

GASKET, CYLINDER This part replaces 12191-GB2-004.

12191-GW8-683

$8.88

2

GASKET, CYLINDER This part replaces 12191-GB2-306.

12191-GW8-683

$8.88

2

GASKET, CYLINDER This part replaces 12191-GW8-681.

12191-GW8-683

$8.88

2

GASKET, CYLINDER | Use up to Engine SN B002437 This part replaces 12191-035-000.

12191-GW8-683

$8.88

2

GASKET, CYLINDER | Use from Engine SN B002438 This part replaces 12191-035-020.

12191-GW8-683

$8.88

2

GASKET, CYLINDER | Use from Engine SN B002438 This part replaces 12191-118-670.

12191-GW8-683

$8.88

3

CYLINDER HEAD | Use from Engine SN A099023 to B002437

12200-035-601

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE) | Use from Engine SN B002438

12200-035-662

Unavailable

4

GASKET, CYL HD | Use up to Engine SN B002437 This part replaces 12251-035-000.

12251-035-306

Unavailable

4

GASKET, CYL HD | Use up to Engine SN B002437 This part replaces 12251-035-010.

12251-035-405

Unavailable

5

COVER, CYLINDER HEAD

12301-035-000

Unavailable

6

COVER, R. CYLINDER HEAD SIDE

12331-035-000

Unavailable

7

COVER, L. CYLINDER HEAD SIDE

12341-035-000

$25.47

8

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

8

CAP, VALVE ADJ.

12361-300-000

Unavailable

8

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

9

GASKET, CYLINDER HEAD COVER This part replaces 12391-GW8-680.

12391-KVM-C20

$4.15

9

GASKET, CYLINDER HEAD COVER This part replaces 12391-035-000.

12391-KVM-C20

$4.15

9

GASKET, CYLINDER HEAD COVER This part replaces 12391-035-306.

12391-KVM-C20

$4.15

10

GASKET, R. CYLINDER This part replaces 12394-035-000.

12394-035-010

$3.40

10

GASKET, R. CYLINDER

12394-035-010

$3.40

10

GASKET, R. CYLINDER This part replaces 12394-035-306.

12394-035-010

$3.40

11

GASKET, L. CYLINDER HEAD SIDE COVER This part replaces 12395-GW8-680.

12395-GW8-682

$4.94

11

GASKET, L. CYLINDER HEAD SIDE COVER This part replaces 12395-035-000.

12395-GW8-682

$4.94

11

GASKET, L. CYLINDER HEAD SIDE COVER This part replaces 12395-035-306.

12395-GW8-682

$4.94

12

TUBE, INLET PIPE CONNECTING (NOT AVAILABLE) | Use up to Engine SN A088974 This part replaces 16261-035-000.

16261-035-010

Unavailable

12

TUBE, INLET PIPE CONNECTING (NOT AVAILABLE)

16261-035-010

Unavailable

12

TUBE, CARBURETOR CONNECTING (NOT AVAILABLE)

16265-035-000

Unavailable

13

PIPE, INLET | Use from Engine SN A006561 to A088974 This part replaces 17111-035-000.

17111-035-010

Unavailable

13

PIPE, INLET | Use from Engine SN A006561 to A088974

17111-035-010

Unavailable

14

PIPE, INLET | Use from Engine SN A088975

17111-035-010

Unavailable

15

GASKET, IN. PIPE This part replaces 17119-035-000.

17119-088-832

$4.39

15

GASKET, IN. PIPE This part replaces 17119-035-306.

17119-088-832

$4.39

15

GASKET, IN. PIPE This part replaces 17119-088-830.

17119-088-832

$4.39

16

CLIP, IGNITION WIRE (NOT AVAILABLE)

32906-035-000

Unavailable

17

BOLT (6MM) This part replaces 90082-035-000.

90082-035-010

$2.39

17

BOLT (6MM)

90082-035-010

$2.39

18

WASHER, SEALING (6MM)

90442-035-000

$2.21

19

WASHER A, SEALING (6MM)

90443-035-000

$3.65

20

O-RING (30.8MM)

91302-001-020

$3.75

21

O-RING (8.5X1.6) (NOT AVAILABLE) | Use up to Engine SN A099022

91302-035-000

Unavailable

21

GASKET, RUBBER (9MM) | Use from Engine SN A099023 This part replaces 91306-035-000.

91306-141-000

$4.65

21

GASKET, RUBBER (9MM) | Use from Engine SN A099023

91306-141-000

$4.65

22

GASKET, RUBBER (16MM)

91303-035-000

$4.87

23

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

23

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

24

BOLT, HEX. (6X112) This part replaces 92000-06112.

92101-06110-0A

$2.92

24

BOLT, HEX. (6X112)

92101-06110-0A

$2.92

25

BOLT, STUD (6X18) This part replaces 92700-06030.

92900-06018-0B

$1.55

25

BOLT, STUD (6X18) This part replaces 92700-06031.

92900-06018-0B

$1.55

25

BOLT, STUD (6X18) This part replaces 92700-06032.

92900-06018-0B

$1.55

25

BOLT, STUD (6X18) This part replaces 92700-06032-30.

92900-06018-0B

$1.55

25

BOLT, STUD (6X18)

92900-06018-0B

$1.55

26

SCREW, PAN (6X18) This part replaces 93500-06018.

93500-06018-0A

$1.49

26

SCREW, PAN (6X18)

93500-06018-0A

$1.49

27

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

27

NUT, HEX. (6MM)

94001-06200-0S

$1.49

27

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

28

NUT, CAP (6MM) This part replaces 94021-06000.

94021-06020

$1.73

28

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

28

NUT, CAP (6MM)

94021-06020

$1.73

28

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

28

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

29

PIN A, DOWEL (8X14)

94301-08140

$2.25
