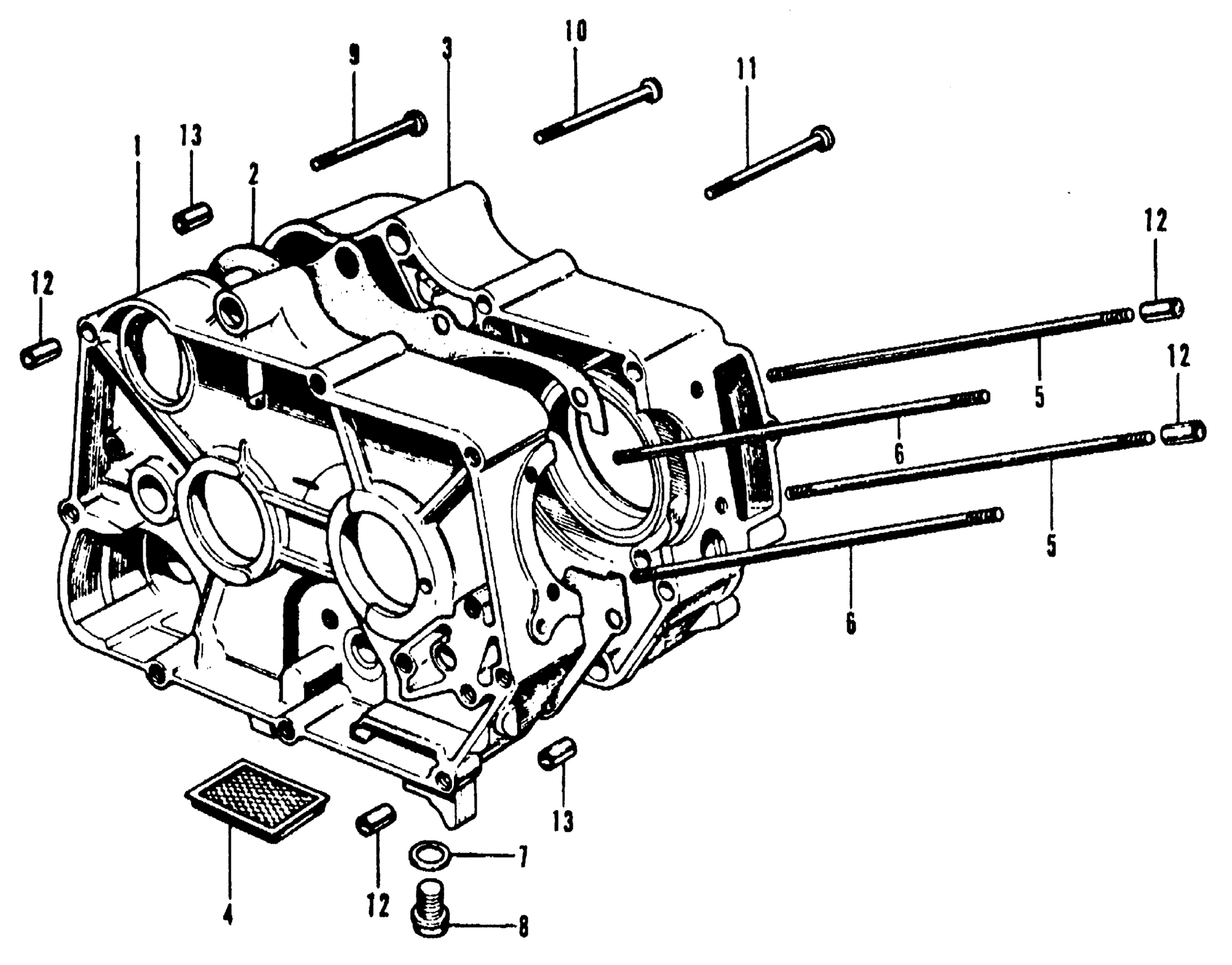

Honda S65A MOTORCYCLE, JPN, VIN# S65-A000001 CRANKCASE + CYLINDER STUD Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE) | Use up to Engine SN A032850

11100-035-020

Unavailable

1

CRANKCASE, R. (NOT AVAILABLE) | Use from Engine SN A068142 to A080875

11100-035-030

Unavailable

1

CRANKCASE, R. | Use from Engine SN A080876 to B002437 This part replaces 11100-035-040.

11100-035-080

Unavailable

1

CRANKCASE, R. | Use from Engine SN A080876 to B002437 This part replaces 11100-035-050.

11100-035-080

Unavailable

1

CRANKCASE, R. | Use from Engine SN A032851 to A068141 This part replaces 11100-035-050.

11100-035-080

Unavailable

1

CRANKCASE, R. | Use from Engine SN A080876 to B002437 This part replaces 11100-035-070.

11100-035-080

Unavailable

1

CRANKCASE, R. | Use from Engine SN A080876

11100-035-080

Unavailable

1

CRANKCASE, R. | Use from Engine SN A032851 to A068141

11100-035-080

Unavailable

1

CRANKCASE, R. (NOT AVAILABLE) | Use from Engine SN B007301

11100-035-100

Unavailable

2

GASKET, R. CRANKCASE | Use up to Engine SN A080875 This part replaces 11191-035-000.

11191-035-308

Unavailable

2

GASKET, R. CRANKCASE | Use from Engine SN A080876 to B007300 This part replaces 11191-035-030.

11191-035-308

Unavailable

2

GASKET, CRANKCASE | Use from Engine SN B007301 This part replaces 11191-035-050.

11191-035-070

Unavailable

2

GASKET, CRANKCASE | Use from Engine SN B007301 This part replaces 11191-035-060.

11191-035-070

Unavailable

2

GASKET, CRANKCASE | Use from Engine SN B007301

11191-035-070

Unavailable

2

GASKET, R. CRANKCASE | Use up to Engine SN B007300 This part replaces 11191-035-306.

11191-035-308

Unavailable

2

GASKET, CRANKCASE | Use from Engine SN B007301 This part replaces 11191-035-307.

11191-035-070

Unavailable

2

GASKET, R. CRANKCASE | Use up to Engine SN B007300

11191-035-308

Unavailable

3

CRANKCASE, L. | Use up to Engine SN A080875

11200-035-010

Unavailable

3

CRANKCASE, L. | Use from Engine SN A080876 to B002437

11200-035-020

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE) | Use from Engine SN B002438

11200-035-090

Unavailable

4

SCREEN, OIL FILTER

15421-035-010

$3.80

5

BOLT A, CYLINDER STUD

90031-035-010

$5.46

6

BOLT B, CYLINDER STUD

90032-035-000

$5.46

7

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

7

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

7

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

8

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

9

SCREW, PAN (6X50) This part replaces 93500-06048.

93500-06050-0A

$1.49

9

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

9

SCREW, PAN (6X50)

93500-06050-0A

$1.49

10

SCREW, PAN (6X60) This part replaces 93500-06060.

93500-06060-0A

$1.49

10

SCREW, PAN (6X60)

93500-06060-0A

$1.49

11

SCREW, PAN (6X65) This part replaces 93500-06065.

93500-06065-0A

$1.53

11

SCREW, PAN (6X65)

93500-06065-0A

$1.53

12

PIN A, DOWEL (8X12)

94301-08120

$2.19

13

PIN A, DOWEL (10X14)

94301-10140

$2.28
