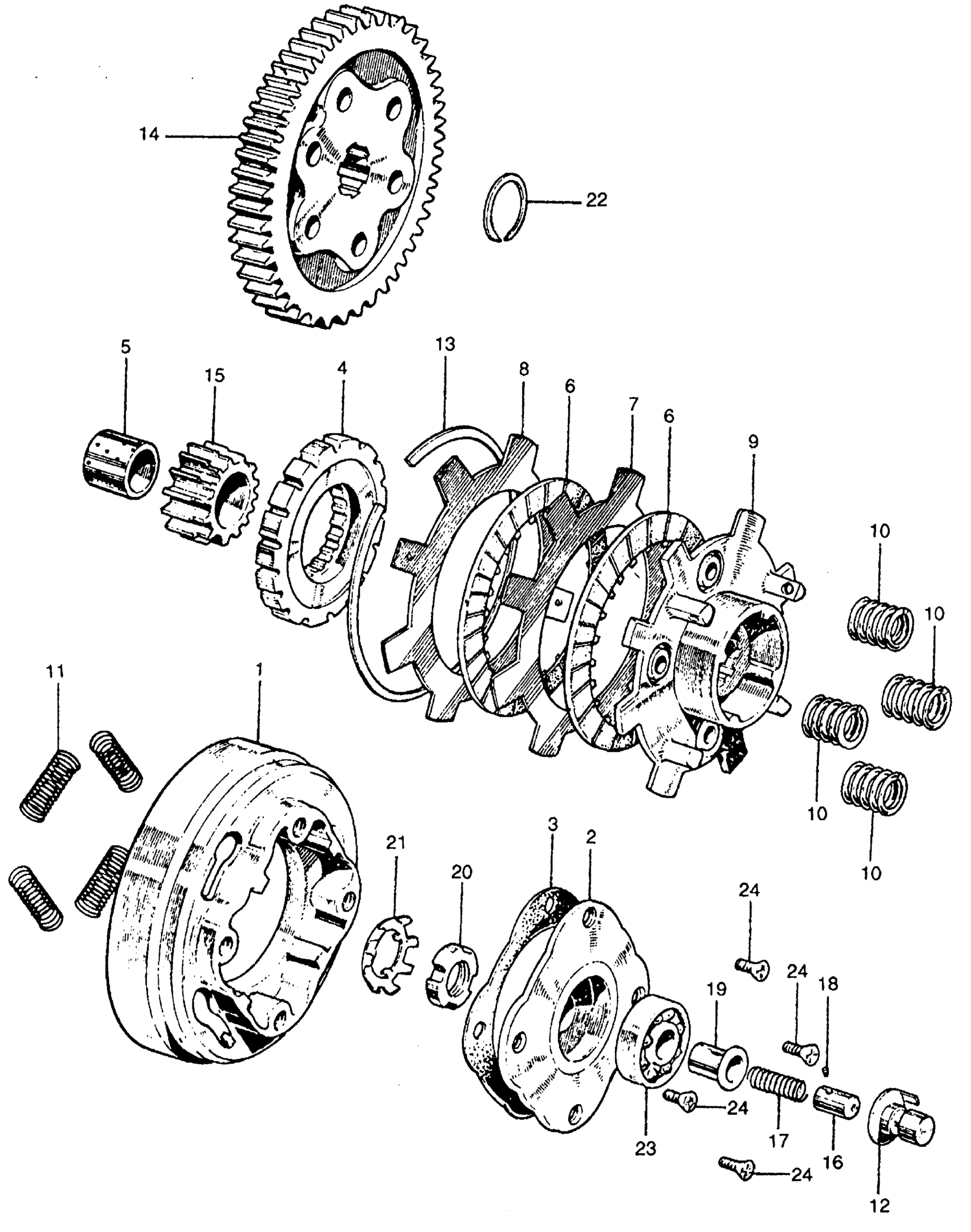

Honda S65A MOTORCYCLE, JPN, VIN# S65-A000001 CLUTCH Diagram

#

Description
Price

1

CLUTCH (OUTER)

22101-035-010

Unavailable

2

COVER, CLUTCH (OUTER) (NOT AVAILABLE)

22111-035-000

Unavailable

3

GASKET, CLUTCH COVER This part replaces 22119-035-000.

22119-165-951

Unavailable

3

GASKET, CLUTCH COVER This part replaces 22119-035-306.

22119-165-951

Unavailable

3

GASKET, CLUTCH COVER This part replaces 22119-165-950.

22119-165-951

Unavailable

4

CENTER, CLUTCH | Use up to Engine SN A006840

22120-035-000

Unavailable

4

CENTER, CLUTCH | Use from Engine SN A006841 to A060976

22120-035-010

Unavailable

4

CENTER, CLUTCH | Use from Engine SN A060977 to B008170

22120-035-020

Unavailable

4

CENTER, CLUTCH (NOT AVAILABLE) | Use from Engine SN B008171

22120-035-040

Unavailable

5

GUIDE, CLUTCH CENTER (NOT AVAILABLE) | Use up to Engine SN A060976

22131-035-010

Unavailable

6

DISK, CLUTCH FRICTION This part replaces 22201-035-000.

22201-165-951

$14.21

6

DISK, CLUTCH FRICTION This part replaces 22201-040-000.

22201-165-951

$14.21

6

DISK, CLUTCH FRICTION This part replaces 22201-087-306.

22201-165-951

$14.21

6

DISK, CLUTCH FRICTION

22201-165-951

$14.21

7

PLATE C, CLUTCH This part replaces 22311-035-000.

22331-041-000

Unavailable

7

PLATE C, CLUTCH

22331-041-000

Unavailable

8

PLATE C, CLUTCH This part replaces 22311-035-000.

22331-041-000

Unavailable

8

PLATE B, CLUTCH

22321-046-020

$9.83

8

PLATE B, CLUTCH This part replaces 22331-035-000.

22321-046-020

$9.83

8

PLATE C, CLUTCH

22331-041-000

Unavailable

9

PLATE, DRIVE | Use up to Engine SN A060976

22351-035-000

Unavailable

9

PLATE, DRIVE (NOT AVAILABLE) | Use from Engine SN A060977 to B007040 This part replaces 22351-035-010.

22351-035-020

Unavailable

9

PLATE, DRIVE (NOT AVAILABLE) | Use from Engine SN A060977

22351-035-020

Unavailable

10

SPRING, CLUTCH This part replaces 22401-035-000.

22401-088-000

Unavailable

10

SPRING, CLUTCH

22401-088-000

Unavailable

11

SPRING, CLUTCH DAMPER

22421-035-000

$4.15

12

ROD, CLUTCH PUSH This part replaces 22820-035-000.

22820-118-670

Unavailable

12

ROD, CLUTCH PUSH

22820-118-670

Unavailable

13

SET-RING (101.5MM)

22901-001-000

$4.02

13

SET-RING (101.5MM) This part replaces 22901-035-000.

22901-001-000

$4.02

14

GEAR, PRIMARY DRIVEN (67T) | Use from Engine SN B008171

23110-GCF-670

$123.47

14

GEAR, PRIMARY DRIVEN (NOT AVAILABLE) | Use from Engine SN A006841 to B008170

23110-035-010

Unavailable

14

GEAR, PRIMARY DRIVEN (67T) | Use from Engine SN B008171 This part replaces 23110-036-000.

23110-GCF-670

$123.47

14

GEAR, PRIMARY DRIVEN (67T) | Use from Engine SN B008171 This part replaces 23110-036-010.

23110-GCF-670

$123.47

14

GEAR, PRIMARY DRIVEN (67T) | Use from Engine SN B008171 This part replaces 23110-087-000.

23110-GCF-670

$123.47

14

GEAR, PRIMARY DRIVEN (67T) | Use from Engine SN B008171 This part replaces 23110-098-740.

23110-GCF-670

$123.47

15

GEAR, PRIMARY DRIVE (NOT AVAILABLE) | Use up to Engine SN A006840 This part replaces 23111-035-010.

23111-035-020

Unavailable

15

GEAR, PRIMARY DRIVE (NOT AVAILABLE) | Use up to Engine SN A060976

23111-035-020

Unavailable

15

GEAR, PRIMARY DRIVE (NOT AVAILABLE) | Use from Engine SN A060977 to B008170

23120-035-030

Unavailable

15

GEAR, PRIMARY DRIVE (18T) | Use from Engine SN B008171

23120-036-010

Unavailable

16

GUIDE, OIL (NOT AVAILABLE)

25551-035-000

Unavailable

17

SPRING, OIL GUIDE | Use up to Engine SN A088755

25555-046-000

Unavailable

17

SPRING, OIL GUIDE | Use from Engine SN A088756

25555-046-000

Unavailable

18

PIN, OIL GUIDE (NOT AVAILABLE)

25556-035-000

Unavailable

19

GUIDE, OIL THROUGH (NOT AVAILABLE)

25557-035-000

Unavailable

20

NUT, LOCK (14MM)

90231-KY4-900

$4.22

20

NUT, LOCK (14MM) This part replaces 90231-041-000.

90231-KY4-900

$4.22

21

WASHER, LOCK (14MM)

90431-001-000

Unavailable

22

CIRCLIP (OUTER) (17MM)

90601-001-000

$1.49

23

BEARING, RADIAL BALL (6001) This part replaces 96100-60010.

96100-60010-00

$17.13

23

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13

24

SCREW, FLAT (5X10) (SOURCE: VINTAGE PARTS INC.)

93600-05010

Unavailable
