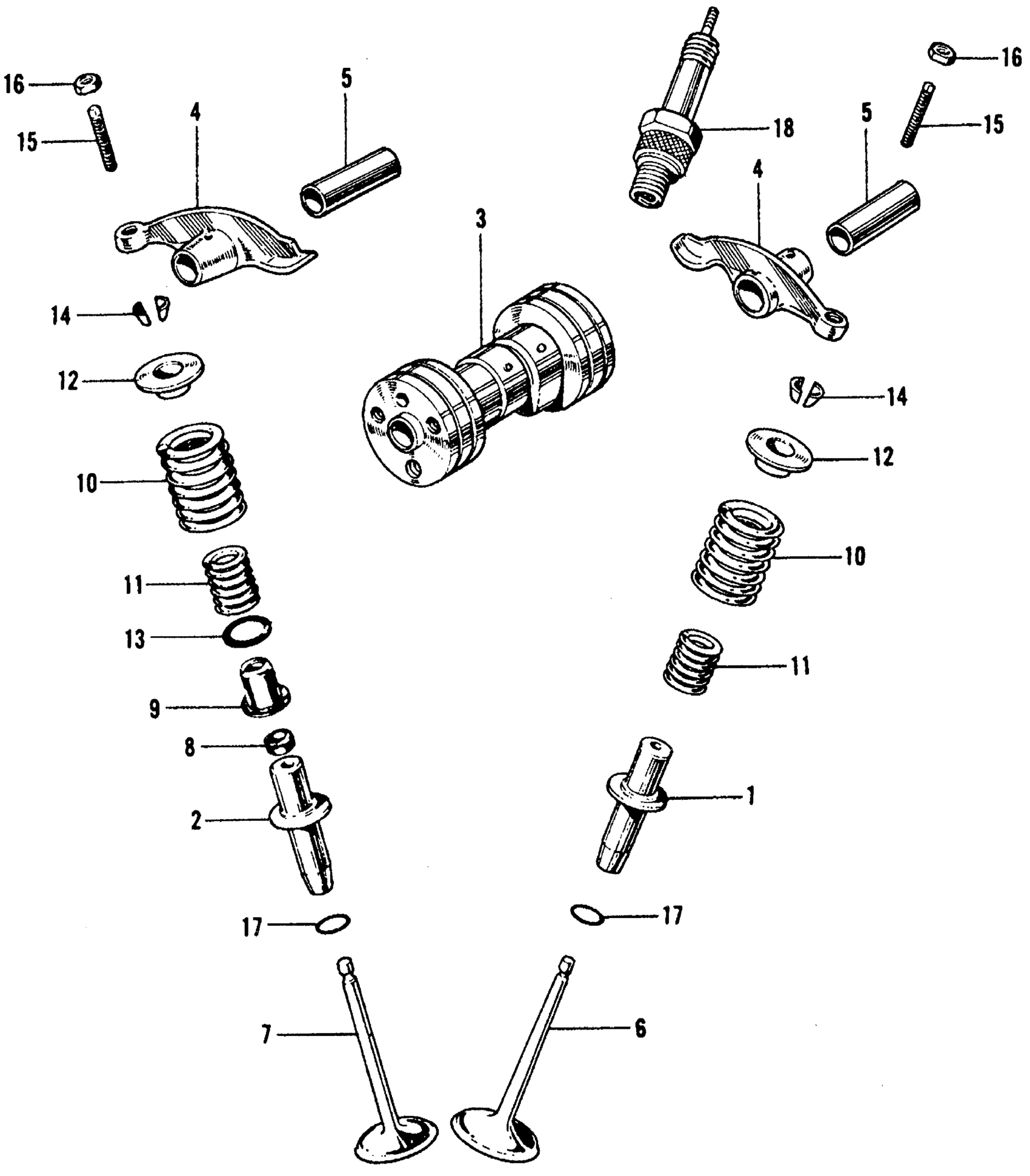

Honda S65A MOTORCYCLE, JPN, VIN# S65-A000001 CAMSHAFT + VALVE Diagram

#

Description
Price

1

GUIDE, VALVE (NOT AVAILABLE) | Use up to Engine SN A007310

12021-035-300

Unavailable

1

GUIDE, VALVE (NOT AVAILABLE) | Use from Engine SN A007311 to A099022

12021-035-810

Unavailable

1

GUIDE, VALVE | Use from Engine SN A099023 This part replaces 12021-035-811.

12023-035-405

Unavailable

1

GUIDE, VALVE | Use from Engine SN A099023

12023-035-405

Unavailable

2

GUIDE, EX. VALVE (NOT AVAILABLE) | Use from Engine SN A007311 to A099022

12023-035-810

Unavailable

2

GUIDE, EX. VALVE | Use up to Engine SN A007310 This part replaces 12023-051-300.

12023-051-320

Unavailable

2

GUIDE, EX. VALVE | Use from Engine SN A099023 This part replaces 12023-051-310.

12023-051-320

Unavailable

2

GUIDE, EX. VALVE | Use up to Engine SN A007310

12023-051-320

Unavailable

2

GUIDE, EX. VALVE | Use from Engine SN A099023

12023-051-320

Unavailable

3

CAMSHAFT (NOT AVAILABLE)

14101-035-020

Unavailable

4

ARM, VALVE ROCKER This part replaces 14431-035-000.

14431-035-020

$38.09

4

ARM, VALVE ROCKER This part replaces 14431-035-010.

14431-035-020

$38.09

4

ARM, VALVE ROCKER

14431-035-020

$38.09

5

SHAFT, VALVE ROCKER ARM

14451-035-000

$8.80

6

VALVE, IN. This part replaces 14711-035-000.

14711-087-000

Unavailable

6

VALVE, IN.

14711-087-000

Unavailable

6

VALVE, IN. This part replaces 14711-089-000.

14711-087-000

Unavailable

7

VALVE, EX. This part replaces 14721-035-000.

14721-087-010

Unavailable

7

VALVE, EX. This part replaces 14721-035-305.

14721-087-010

Unavailable

7

VALVE, EX.

14721-087-010

Unavailable

8

SEAL, VALVE STEM | Use from Engine SN A099023 This part replaces 14730-028-000.

14730-028-013

$9.71

8

SEAL, VALVE STEM | Use from Engine SN A099023

14730-028-013

$9.71

9

CAP, VALVE STEM SEAL | Use from Engine SN A099023

14731-028-000

$4.35

10

SPRING, VALVE (NOT AVAILABLE) | Use up to Engine SN A007310

14751-035-000

Unavailable

10

SPRING, VALVE (OUTER) | Use from Engine SN A007311

14751-035-600

$4.85

11

SPRING, VALVE (INNER)

14761-035-000

$3.12

12

RETAINER, VALVE SPRING (NOT AVAILABLE) | Use up to Engine SN A007310

14771-011-000

Unavailable

12

RETAINER, VALVE SPRING | Use from Engine SN A007311

14771-035-600

Unavailable

13

SEAT, VALVE SPRING (INNER) | Use from Engine SN A099023

14776-028-000

$4.37

14

COTTER, VALVE | Use from Engine SN A006561

14781-001-004

$4.95

14

COTTER, VALVE | Use from Engine SN A006561

14781-001-010

$5.66

15

SCREW, TAPPET ADJ. | Use from Engine SN A006561 This part replaces 90012-200-000.

90012-333-000

$2.75

15

SCREW, TAPPET ADJ. | Use from Engine SN A006561

90012-333-000

$2.75

16

NUT, TAPPET ADJ.

90206-001-000

$1.66

17

O-RING (9.5X1.6) | Use from Engine SN A099023

91306-028-000

$2.92

18

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57711.

98056-57713

$2.38

18

SPARK PLUG (C7HS) (NGK)

98056-57713

$2.38

18

SPARK PLUG (C7HS) (NGK) This part replaces 98056-57717.

98056-57713

$2.38
