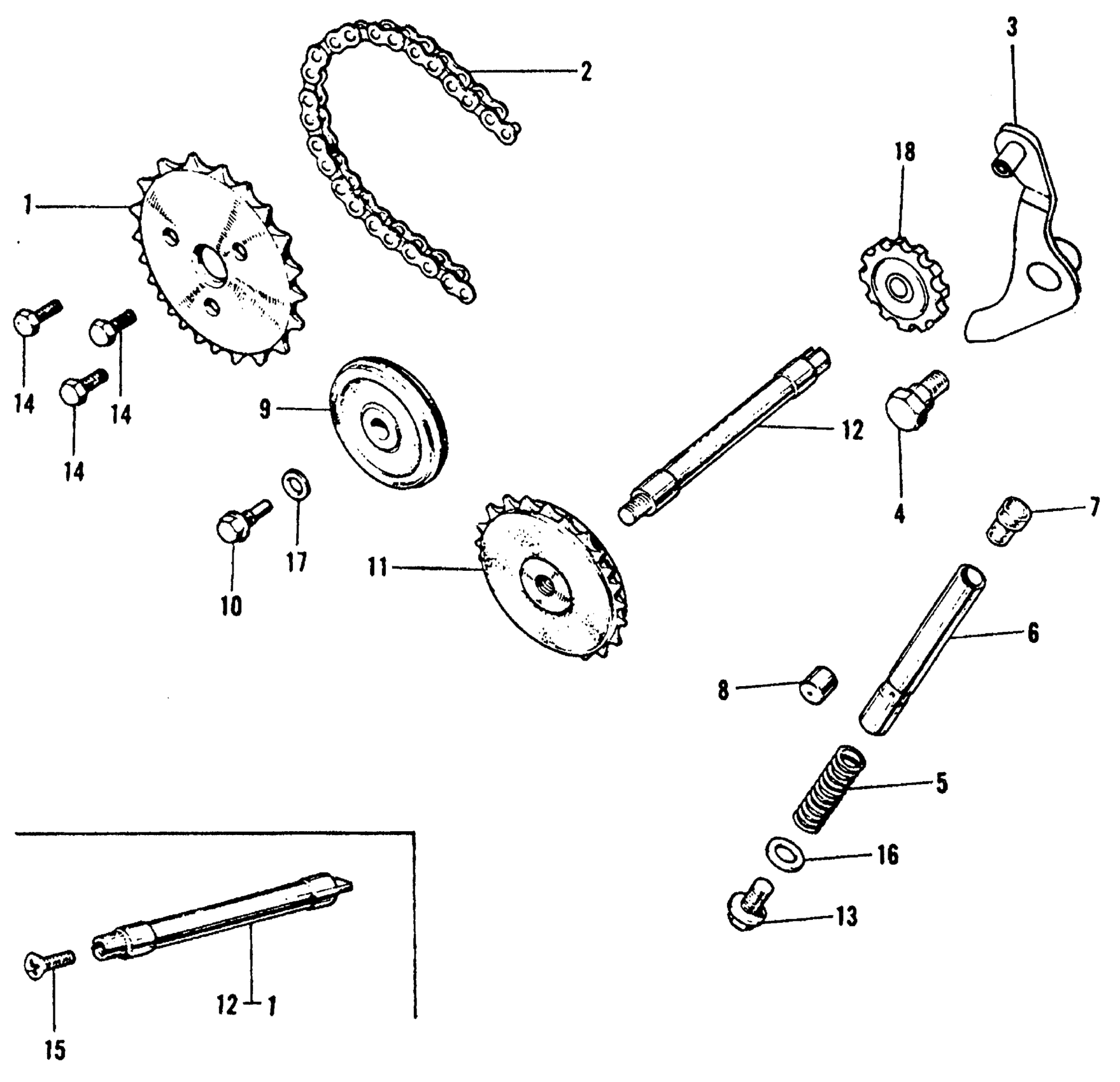

Honda S65A MOTORCYCLE, JPN, VIN# S65-A000001 CAM CHAIN + CAM CHAIN TENSIONER Diagram

#

Description
Price

1

SPROCKET, CAM (28T) This part replaces 14321-035-003.

14321-035-700

$17.46

1

SPROCKET, CAM (28T) This part replaces 14321-035-010.

14321-035-700

$17.46

1

SPROCKET, CAM (28T)

14321-035-700

$17.46

2

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-000.

14401-115-010

$29.93

2

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-003.

14401-115-010

$29.93

2

CHAIN, CAM (82L) (DAIDO) This part replaces 14401-035-005.

14401-115-010

$29.93

3

ARM, CAM CHAIN TENSIONER This part replaces 14500-035-010.

14500-035-020

$28.03

3

ARM, CAM CHAIN TENSIONER

14500-035-020

$28.03

4

PIVOT, CAM CHAIN TENSIONER

14531-035-000

$3.87

5

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

14541-035-010

Unavailable

5

SPRING, TENSIONER (NOT AVAILABLE) | Use up to Engine SN B002437

14541-035-305

Unavailable

6

ROD, TENSIONER PUSH (NOT AVAILABLE)

14551-035-000

Unavailable

6

ROD, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE)

14551-035-020

Unavailable

7

RUBBER, CAM CHAIN TENSIONER PUSH ROD HEAD

14566-035-000

Unavailable

8

VALVE, CHECK (NOT AVAILABLE)

14591-028-000

Unavailable

9

ROLLER, CAM CHAIN GUIDE This part replaces 14610-035-010.

14610-086-010

$20.24

9

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-000.

14610-086-010

$20.24

9

ROLLER, CAM CHAIN GUIDE This part replaces 14610-086-003.

14610-086-010

$20.24

10

PIN, CAM CHAIN GUIDE ROLLER This part replaces 14615-035-000.

14615-035-010

$2.84

10

PIN, CAM CHAIN GUIDE ROLLER

14615-035-010

$2.84

11

SPROCKET, CAM CHAIN GUIDE (NOT AVAILABLE) | Use up to Engine SN A087115

14670-035-010

Unavailable

11

SPROCKET, CAM CHAIN GUIDE (25T) | Use from Engine SN A087116 This part replaces 14670-035-030.

14670-GBJ-M30

$23.34

12

SPINDLE, CAM CHAIN GUIDE SROCKET | Use up to Engine SN A087115

14675-035-020

Unavailable

12

SPINDLE, CAM CHAIN GUIDE SROCKET (NOT AVAILABLE) | Use from Engine SN A087116 to B002437

14675-035-040

Unavailable

12

SPINDLE, CAM CHAIN GUIDE SPROCKET | Use from Engine SN B002438

14675-035-060

Unavailable

13

BOLT, SEALING (14MM)

90081-035-000

$4.24

14

BOLT KNOCK 5MM This part replaces 90083-035-000.

90083-035-405

Unavailable

14

BOLT, KNOCK (5MM)

90083-035-010

$2.07

15

SCREW, TAPPET (4MM) | Use up to Engine SN A087115

90091-035-010

Unavailable

16

WASHER, SEALING (14MM)

90441-035-000

$2.39

17

WASHER (8MM)

90481-035-000

$1.87

18

ROLLER, CAM CHAIN TENSIONER This part replaces 14502-035-010.

14502-086-000

$16.33

18

ROLLER, CAM CHAIN TENSIONER

14502-086-000

$16.33
