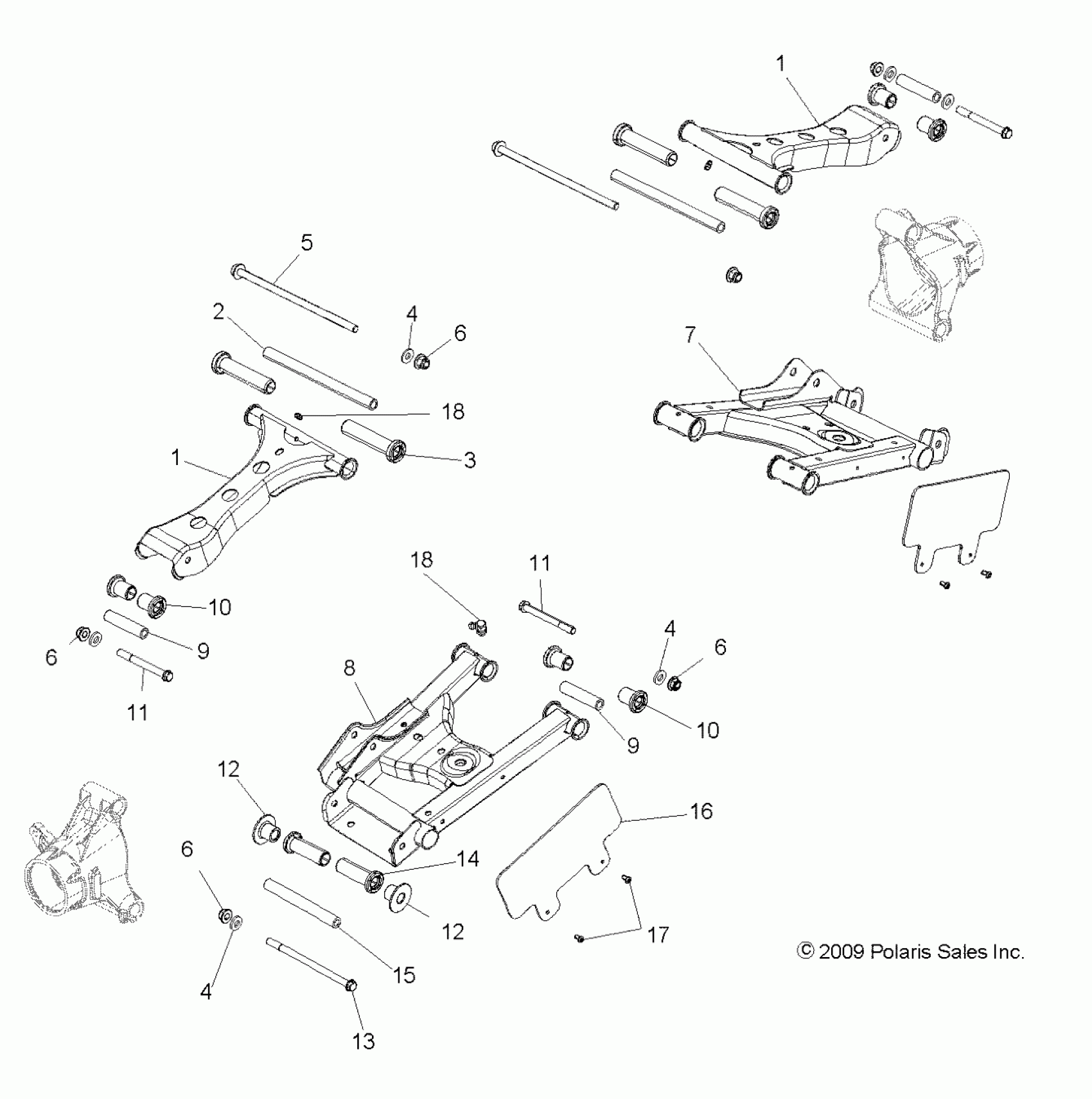

Polaris RZR 800 EFI - R10VH76 ALL OPTIONS/VY76AZ SUSPENSION, REAR CONTROL ARMS - R10VH76 ALL OPTIONS/VY76AZ (49RGRSUSPRR10RZR800) Diagram

#

Description
Price

1

Arm, Control, Upper, Rear, Matte' Black [Built 10/06/09 and Before]

1015450-458

Unavailable

1

Arm, Control, Upper, Rear, Matte' Black [Built 10/07/09 and After]

1017572-458

Unavailable

1

Arm, Control, Upper, Rear, Matte' Black [Built 10/06/09 and Before]

1015450-458

Unavailable

1

Arm, Control, Upper, Rear, Matte' Black [Built 10/07/09 and After]

1017572-458

Unavailable

2

Tube, Pivot

5136468

Unavailable

3

BUSHING, A-ARM, LONG

5436973

$5.19

3

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

4

WASHER

7556153

$1.99

4

WASHER

7556153

$1.99

4

WASHER

7556153

$1.99

5

Bolt [Built 9/30/09 and Before]

7518701

Unavailable

5

Screw [Built 10/01/09 and After]

7519086

$27.99

6

Nut, Flanged [Built 9/30/09 and Before]

7547313

$1.49

6

NUT-HXFL M10X1.25 8 ZTB NYL [Built 10/01/09 and After]

7547333

$1.59

6

Nut, Flanged [Built 9/30/09 and Before]

7547313

$1.49

6

NUT-HXFL M10X1.25 8 ZTB NYL [Built 10/01/09 and After]

7547333

$1.59

6

Nut, Flanged [Built 9/30/09 and Before]

7547313

$1.49

6

NUT-HXFL M10X1.25 8 ZTB NYL [Built 10/01/09 and After]

7547333

$1.59

6

Nut, Flanged [Built 9/30/09 and Before]

7547313

$1.49

6

NUT-HXFL M10X1.25 8 ZTB NYL [Built 10/01/09 and After]

7547333

$1.59

7

Arm, Control Lower, Rear, Matte' Black, LH [Built 10/06/09 and Before]

1015451-458

Unavailable

7

Arm, Control Lower, Rear, Matte' Black, LH [Built 10/07/09 and After]

1017573-458

Unavailable

8

Arm, Control Lower, Rear, Matte' Black, RH [Built 10/06/09 and Before]

1015452-458

Unavailable

8

Arm, Control Lower, Rear, Matte' Black, RH [Built 10/07/09 and After]

1017574-458

Unavailable

9

TUBE, PIVOT

5136100

$15.99

9

TUBE, PIVOT

5136100

$15.99

10

Bushing, Control Arm

5436832

$2.38

10

Bushing, Control Arm

5436832

$2.38

11

Bolt [Built 9/30/09 and Before]

7518468

$5.59

11

Screw [Built 10/01/09 and After]

7519043

$9.59

11

Bolt [Built 9/30/09 and Before]

7518468

$5.59

11

Screw [Built 10/01/09 and After]

7519043

$9.59

12

BUSHING, PIVOT

5136102

$10.39

12

BUSHING, PIVOT

5136102

$10.39

13

Bolt [Built 9/30/09 and Before]

7518668

$7.19

13

Screw [Built 10/01/09 and After]

7519042

$9.59

14

BUSHING, CONTROL ARM

5437229

$6.39

15

TUBE, PIVOT

5136101

Unavailable

16

Shield, CV, Rear, Black

5436014-070

$12.99

17

Screw

7512084

$1.49

18

FITTING, ZERK

7080510

$5.59

18

FITTING, ZERK

7080510

$5.59
