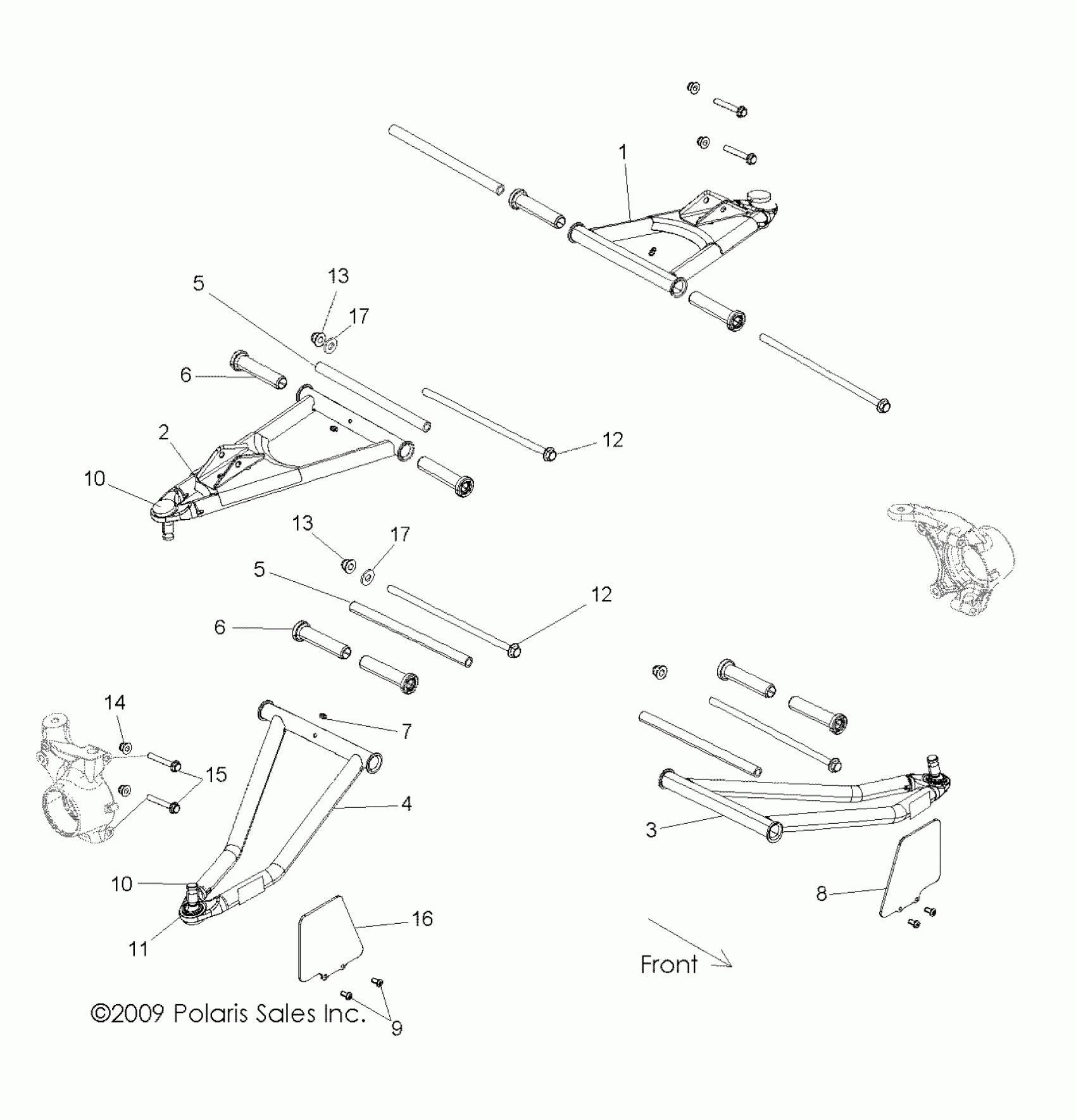

Polaris RZR 800 EFI - R10VH76 ALL OPTIONS/VY76AZ SUSPENSION, FRONT CONTROL ARMS - R10VH76 ALL OPTIONS/VY76AZ (49RGRSUSPFRT10RZR) Diagram

#

Description
Price

1

Arm, Control, Upper, Front, Matte' Black, LH [Built 10/06/09 and Before]

1015453-458

Unavailable

1

Arm, Control, Upper, Front, Matte' Black, LH [Built 10/07/09 and After]

1017568-458

Unavailable

2

Arm, Control, Upper, Front, Matte' Black, RH [Built 10/06/09 and Before]

1015454-458

Unavailable

2

Arm, Control, Upper, Front, Matte' Black, RH [Built 10/07/09 and After]

1017569-458

Unavailable

3

Arm, Control, Lower, Front, Matte' Black, LH [Built 10/06/09 and Before]

1015455-458

Unavailable

3

Arm, Control, Lower, Front, Matte' Black, LH [Built 10/07/09 and After]

1017570-458

Unavailable

4

Arm, Control, Lower, Front, Matte' Black, RH [Built 10/06/09 and Before]

1015456-458

Unavailable

4

Arm, Control, Lower, Front, Matte' Black, RH [Built 10/07/09 and After]

1017571-458

Unavailable

5

Tube, Pivot [Built 10/04/09 and Before]

5136324

$28.32

5

Tube, Pivot [Built 10/05/09 and After]

5137104

Unavailable

5

Tube, Pivot [Built 10/04/09 and Before]

5136324

$28.32

5

Tube, Pivot [Built 10/05/09 and After]

5137104

Unavailable

6

BUSHING, A-ARM, LONG

5436973

$5.19

6

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

6

BUSHING, A-ARM, LONG

5436973

$5.19

6

ASM-BUSHING,HD,W/SEAL,6.75 FLG (HEAVY DUTY) [OPTIONAL]

1543326

$12.79

7

FITTING, ZERK

7080510

$5.59

8

Shield, CV, Front, Black, LH

5436620-070

Unavailable

9

Screw

7512084

$1.49

10

Joint, Ball

7081580

$73.35

10

Joint, Ball

7081580

$73.35

11

RING, RETAINING

7710533

$2.39

12

Bolt, Flanged [Built 9/30/09 and Before]

7518458

$7.99

12

Bolt, Flanged [Built 10/01/09 and After]

7519087

$13.59

12

Bolt, Flanged [Built 9/30/09 and Before]

7518458

$7.99

12

Bolt, Flanged [Built 10/01/09 and After]

7519087

$13.59

13

Nut, Flanged [Built 9/30/09 and Before]

7547313

$1.49

13

NUT-HXFL M10X1.25 8 ZTB NYL [Built 10/01/09 and After]

7547333

$1.59

13

Nut, Flanged [Built 9/30/09 and Before]

7547313

$1.49

13

NUT-HXFL M10X1.25 8 ZTB NYL [Built 10/01/09 and After]

7547333

$1.59

14

NUT, NYLOK

7547405

$1.49

15

SCREW, FLANGE

7516733

$6.39

16

Shield, CV, Front, Black, RH

5437246-070

$34.99

17

WASHER

7556153

$1.99

17

WASHER

7556153

$1.99
