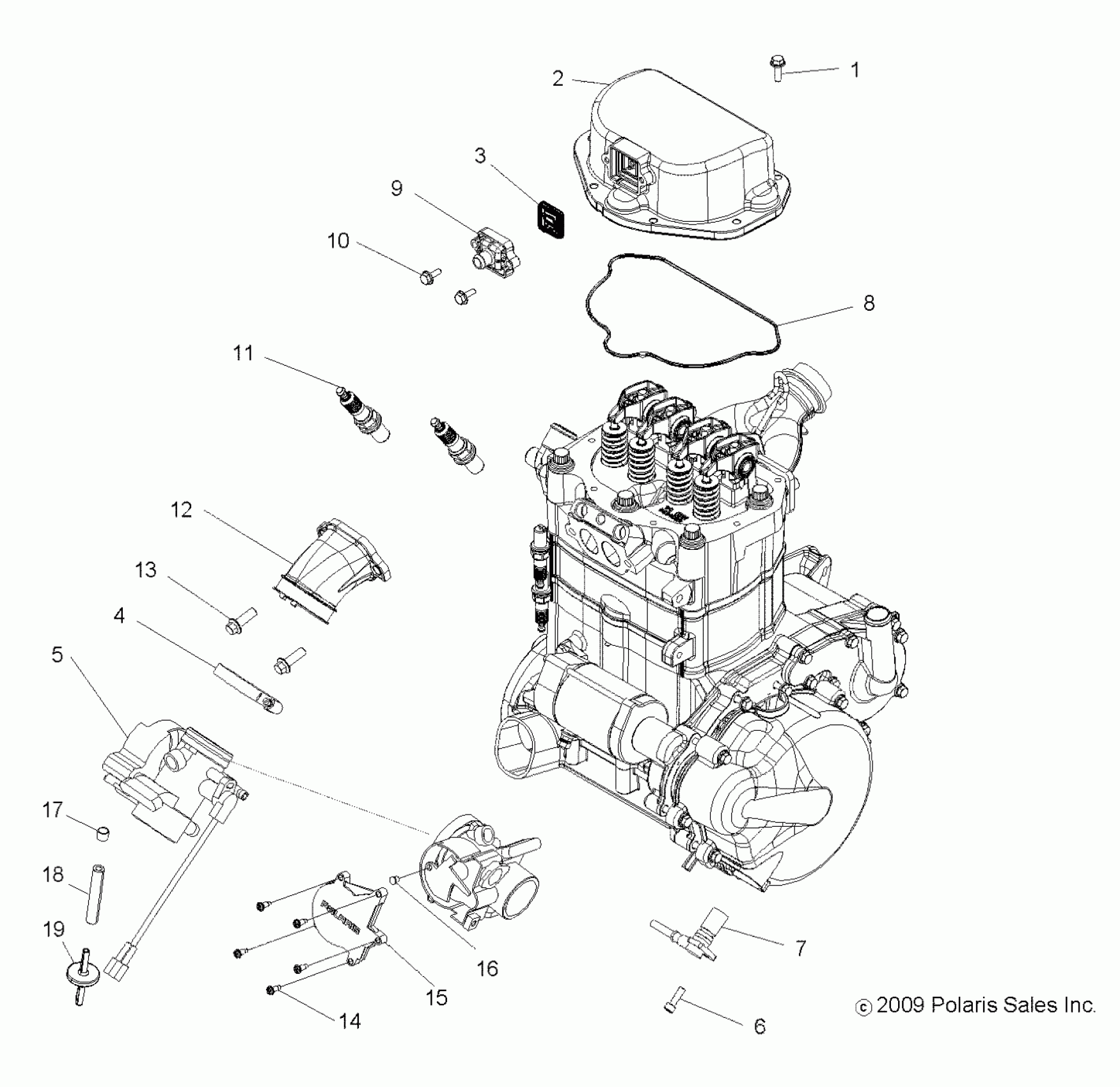

Polaris RZR 800 EFI - R10VH76 ALL OPTIONS/VY76AZ ENGINE, THROTTLE BODY and VALVE COVER - R10VH76 ALL OPTIONS/VY76AZ (49RGRTHROTTLEBODY08VISTA) Diagram

Description

Price

SCREW

7516822

$2.38

Cover, Valve

5136099

$72.84

ASM-REED W/GASKET

3021352

$32.37

CLAMP-WORM GEAR,44-70MM,HOSE

7081623

$3.17

Sensor, Throttle Position [Must also order O-Ring]

2410342

$105.22

O-Ring, TPS [Used w/2410342]

5413812

$2.02

Asm., Body, Throttle [Incl. Throttle Position Sensor, O-Ring]

1203944

$369.99

Screw

7517384

$8.73

SENSOR, CRANK POSITION

2410720

$117.37

Seal, Valve Cover

5412836

$7.27

Cover, Breather

5432533

$8.89

Screw

7516607

$10.32

PLUG, SPARK, CHAMPION RC7YC3

3021671

$3.97

Adapter

1240494

$74.99

SCREW

7516734

$3.17

Screw, Shoulder

3131515

$10.32

Asm., Cover w/O-Ring

1202578

Unavailable

Guide, Throttle Cable

3131514

$32.37

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

Hose

8450113

Unavailable

VALVE, CHECK

7052038

$11.32
