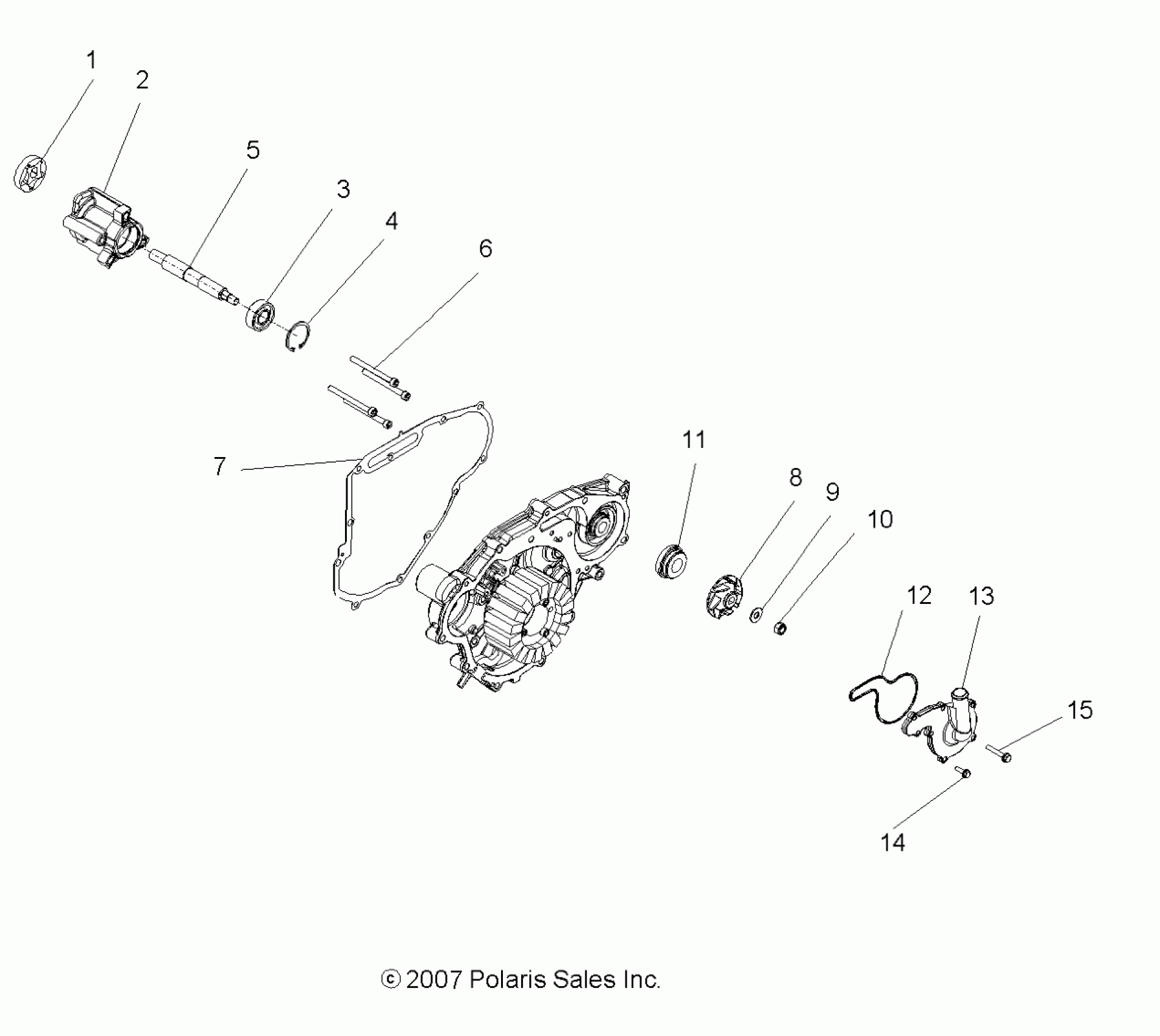

Polaris RZR 800 EFI - R10VH76 ALL OPTIONS/VY76AZ ENGINE, OIL PUMP and WATER PUMP - R10VH76 ALL OPTIONS/VY76AZ (49ATVOILPUMP08VISTA) Diagram

Description

Price

Kit, Oil Pump [Incl. 1-5 , Gear Driven Water/Oil Helix]]

2203012

Unavailable

Asm., Gerotor

1202588

$64.75

HOUSING, OIL PUMP

5135094

Unavailable

BEARING, BALL

3514561

$9.52

RING, RETAINING

7710531

$4.76

SHAFT, OIL/WATER PUMP

5135650

$90.24

SCREW

7517807

$4.76

GASKET, COVER, MAGNETO

5812936

$36.41

IMPELLER, WATER PUMP

5433684

$31.75

Washer, Flat

7555874

$2.38

Nut, Hex, Nylok

7546804

$1.19

SEAL, WATER PUMP

3610075

Unavailable

SEAL, WATER PUMP

5812571

$8.08

Cover, Water Pump

5631882

Unavailable

SCREW

7516822

$2.38

Screw

7517950

$5.56
