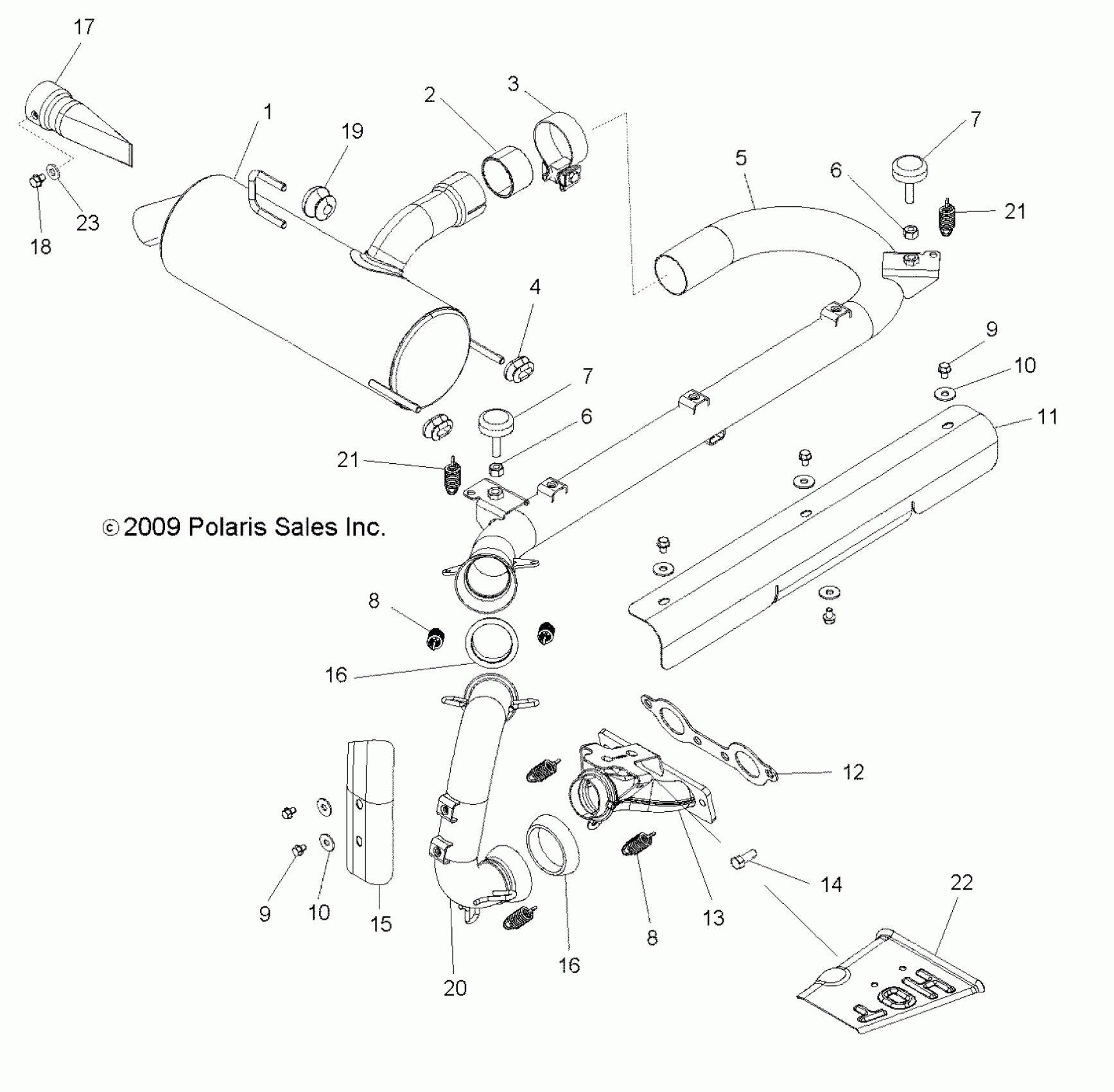

Polaris RZR 800 EFI - R10VH76 ALL OPTIONS/VY76AZ ENGINE, EXHAUST SYSTEM - R10VH76 ALL OPTIONS/VY76AZ (49RGREXHAUST10RZR) Diagram

#

Description
Price

1

Silencer, Black

1262011-489

$464.99

2

SEAL, EXHAUST

5250091

Unavailable

3

CLAMP, EXHAUST

7081382

$31.99

4

GROMMET, SILENCER MOUNT

5436598

$3.99

5

Pipe, Exhaust, Black

1261672-489

$329.99

6

NUT

7542301

$1.59

6

NUT

7542301

$1.59

7

MOUNT, TORQUE STOP

3021522

$27.99

7

MOUNT, TORQUE STOP

3021522

$27.99

8

SPRING-EXHAUST

7041789

$7.99

8

SPRING-EXHAUST

7041789

$7.99

9

Screw

7515197

$1.49

9

Screw

7515197

$1.49

10

Washer

7555935

$2.39

10

Washer

7555935

$2.39

11

Plate, Shield, Exhaust Pipe

5250077

$40.46

12

GASKET, EXHAUST

5811511

$48.56

13

Manifold, Black

1262045-489

$179.99

14

SCREW

7518984

$7.99

15

Plate, Shield, Manifold

5250076

Unavailable

16

Seal, Exhaust, Socket

3610047

$36.41

16

Seal, Exhaust, Socket

3610047

$36.41

17

Arrestor, Spark [Built 2/01/10 and After]

1262132

$64.99

17

Arrestor, Spark [Built 1/31/10 and Before]

1261957

$64.99

18

SCREW

7519145

$3.99

19

Grommet, Silencer Mount

5413377

Unavailable

20

Headpipe, Black

1261851-489

$189.99

21

SPRING-EXHAUST

7041687

$5.65

21

SPRING-EXHAUST

7041687

$5.65

22

Shield, Manifold, Top

5252237

$23.99

23

Washer, Lock

7552616

Unavailable
