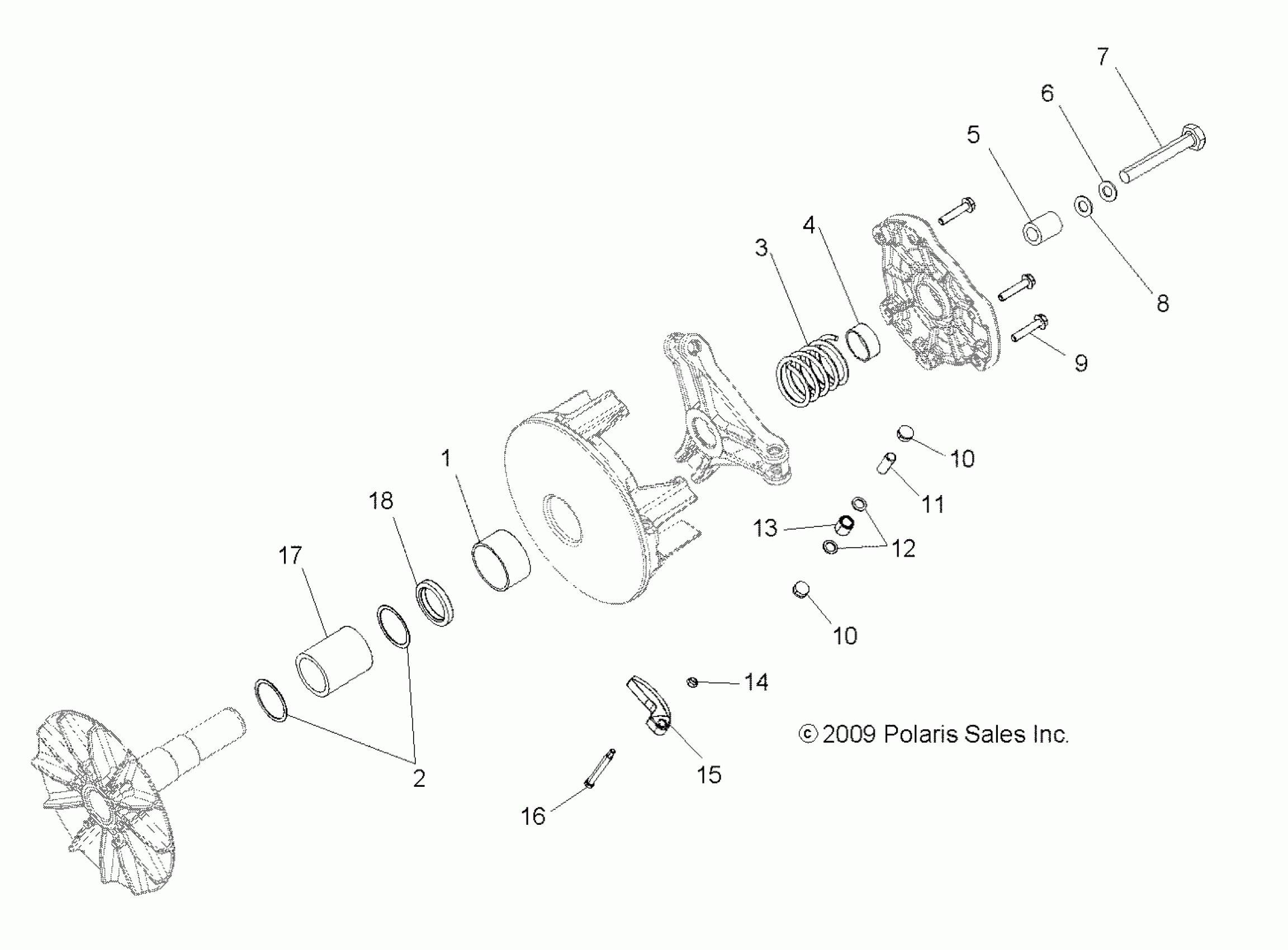

Polaris RZR 800 EFI - R10VH76 ALL OPTIONS/VY76AZ DRIVE TRAIN, PRIMARY CLUTCH - R10VH76 ALL OPTIONS/VY76AZ (49RGRCLUTCHDRV10RZR) Diagram

Asm., Drive Clutch, Basic, Bearing [Incl. All Less 3,5-8,15][Built 1/01/10 and After]

1322920

Unavailable

Asm., Drive Clutch, Basic [Incl. All Less 3,5-8,15][Built 12/31/09 and Before]

1322851

$719.99

BEARING

3514492

$31.99

WASHER-CLUTCH,VESPEL

7556335

$6.39

SPRING-CLUTCH, 35-240

7043594

$47.99

Bearing, Cover

3514684

$15.99

BUSHING-.437 X.770 X.50

5430261

$7.19

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.79

Bolt

7518197

Unavailable

WASHER-.440X1.25X.190 FL-Y

5210748

$3.99

SCREW

7518062

$4.79

BUTTON, CLUTCH

5431936

Unavailable

BUTTON, CLUTCH

5431936

Unavailable

PIN-ROLLER

5020422

$2.39

WASHER-CLUTCH,SPIDER ROLLER

5438247

$1.59

ASM-ROLLER AND BUSHING

1321622

$32.37

NUT, FLEXLOC

7541906

$3.19

Weight, Shift, 23-62G

5632337

$31.99

BOLT, SHOULDER

7512266

$3.19

BEARING-NEEDLE [Built 1/01/10 and After]

3514609

$35.99

Asm., Bearing, Non-Braking [Built 12/31/09 and Before]

1521185

$59.99

Spacer, Clutch, PM [Built 1/01/10 and After]

5632328

Unavailable

Spacer, Clutch [Built 12/31/09 and Before]

5632060

$52.79
