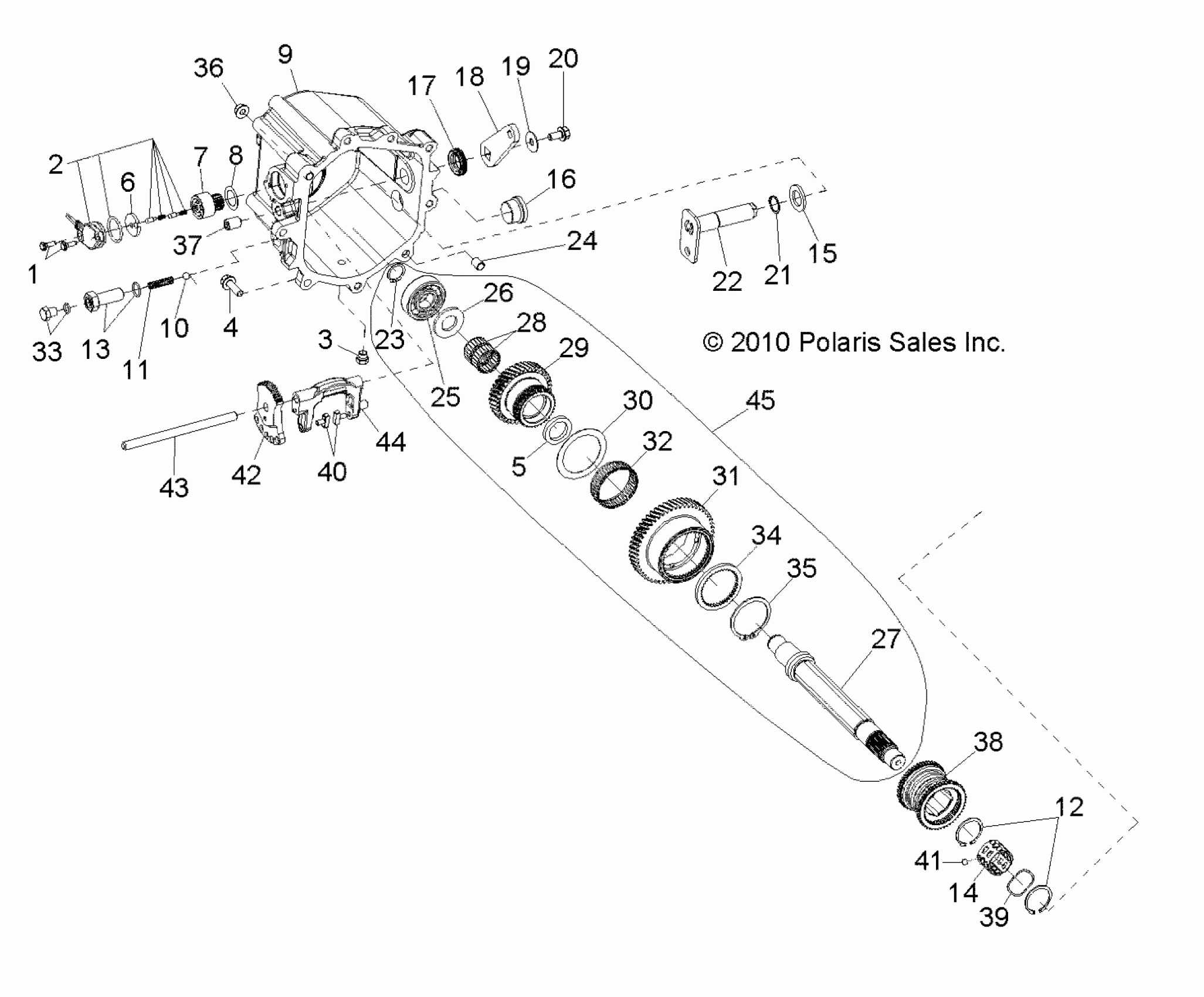

Polaris RZR 800 EFI - R10VH76 ALL OPTIONS/VY76AZ DRIVE TRAIN, MAIN GEARCASE INTERNALS 2 (Built 5/17/10 and After) - R10VH76 ALL OPTIONS/VY76AZ (49RGRTRANSINTL23235269) Diagram

#

Description
Price

-

Asm., Transmission, Sub [Incl. All]

3235269

Unavailable

1

SCREW, FLANGE

3234525

$9.59

2

KIT, SENSOR [INCL. 3-5]

3234871

$241.99

3

PLUG, DRAIN

5133731

$11.19

4

SCREW, FLANGE

7518172

$7.19

5

Washer, Thrust

-------

Unavailable

6

SPACER

3234523

$11.19

7

SENSOR, DRUM GEAR

3234522

$79.19

8

WASHER

3234521

$7.19

9

ASM., COVER, SHIFT HOUSING [INCL. 17]

3234890

$234.07

10

BALL

3234520

$5.59

11

SPRING, COMPRESSION

3234870

$12.79

12

RING, RETAINING

3235074

$6.39

13

ASM., SLEEVE, DETENT

3234481

$43.99

14

CAGE, BALL BEARING

3235075

$15.99

15

WASHER

3234899

$10.39

16

PLUG, FILL, W/O-RING

5133736

$23.99

17

SEAL, OIL

3234493

$11.99

18

LEVER, SHIFT CABLE

3234492

$27.99

19

WASHER

3234491

$5.59

20

SCREW

3234490

$5.59

21

RING, RETAINING

3234494

$4.79

22

Asm., Shifter

3234900

Unavailable

23

RING, RETAINING

3234552

$7.19

24

BUSHING, DOWEL

3234503

$6.39

25

BEARING, BALL

3235277

$47.99

26

WASHER, THRUST

3235276

$31.99

27

KIT, CLUTCH, INTERMEDIATE SHAFT ASM.

3235302

$195.99

28

BEARING, NEEDLE ROLLER

3235069

Unavailable

29

GEAR, CLUTCH

3235085

Unavailable

30

WASHER, THRUST

3234887

$27.99

31

Gear, Clutch, 53T

3234535

Unavailable

32

BEARING, NEEDLE

3234536

$31.99

33

ASM., SCREW [INCL. 14]

3234869

$10.55

34

PLATE, RETAINING

3234874

Unavailable

35

RING, RETAINING

3234879

$12.79

36

NUT, FLANGED

3234500

$4.79

37

SET, SCREW

3234484

$5.59

38

COLLAR, SHIFT

3235072

$421.19

39

SPRING, WAVE

3235076

$10.39

40

BLADE, CLUTCH YOKE

3234868

$12.79

41

BALL

3235077

$7.99

42

Plate, Gear Detent

3235067

$177.60

43

PIN, PIVOT

3234914

$27.99

44

Yoke, Clutch

3235066

$177.60

45

Kit, Clutch Shaft Asm. [Incl. 23,25-32,34,35, and from Drive Train, Main Gearcase Internals 1 Page, Ref. 12-14,34]

3235271

$749.99
