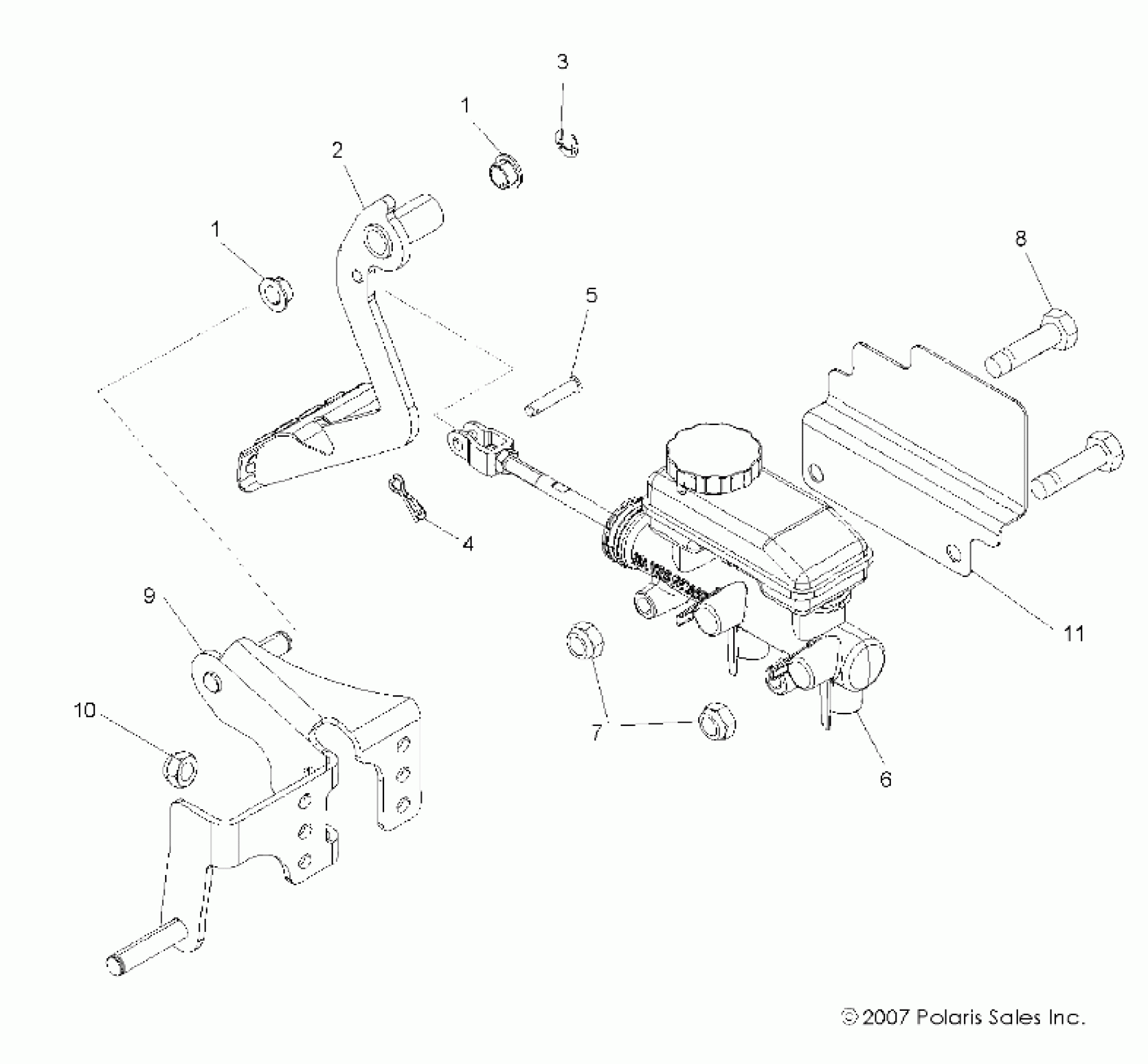

Polaris RZR 800 EFI - R10VH76 ALL OPTIONS/VY76AZ BRAKES, PEDAL and MASTER CYLINDER - R10VH76 ALL OPTIONS/VY76AZ (49RGRBRAKEFOOT08VISTA) Diagram

#

Description

Price

1

Bushing, Pedal Pivot

5437284

$12.70

1

Bushing, Pedal Pivot

5437284

$12.70

2

PEDAL, BRAKE, MATTE' BLACK

1015481-458

$36.41

3

Ring, Retaining

7710901

$8.08

4

PIN-CLIP,14MM

7661140

$1.19

5

PIN, CLEVIS

7661843

$2.38

6

ASM., MASTER CYLINDER

1911234

$259.03

7

NUT-5/16-18 NYLOK-Y

7542324

$0.79

8

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.76

9

Mount, Pedal

1016839

$71.43

10

NUT-5/16-18 HX FLG NL-Y [Built 12/31/09 and Before]

7542343

$4.76

10

NUT- M8X1.25, FLG, NYLOC-OLIVE D [Built 1/01/10 and After]

7547332

$3.97

11

SHIELD, MASTER CYLINDER

5251507

$34.99
