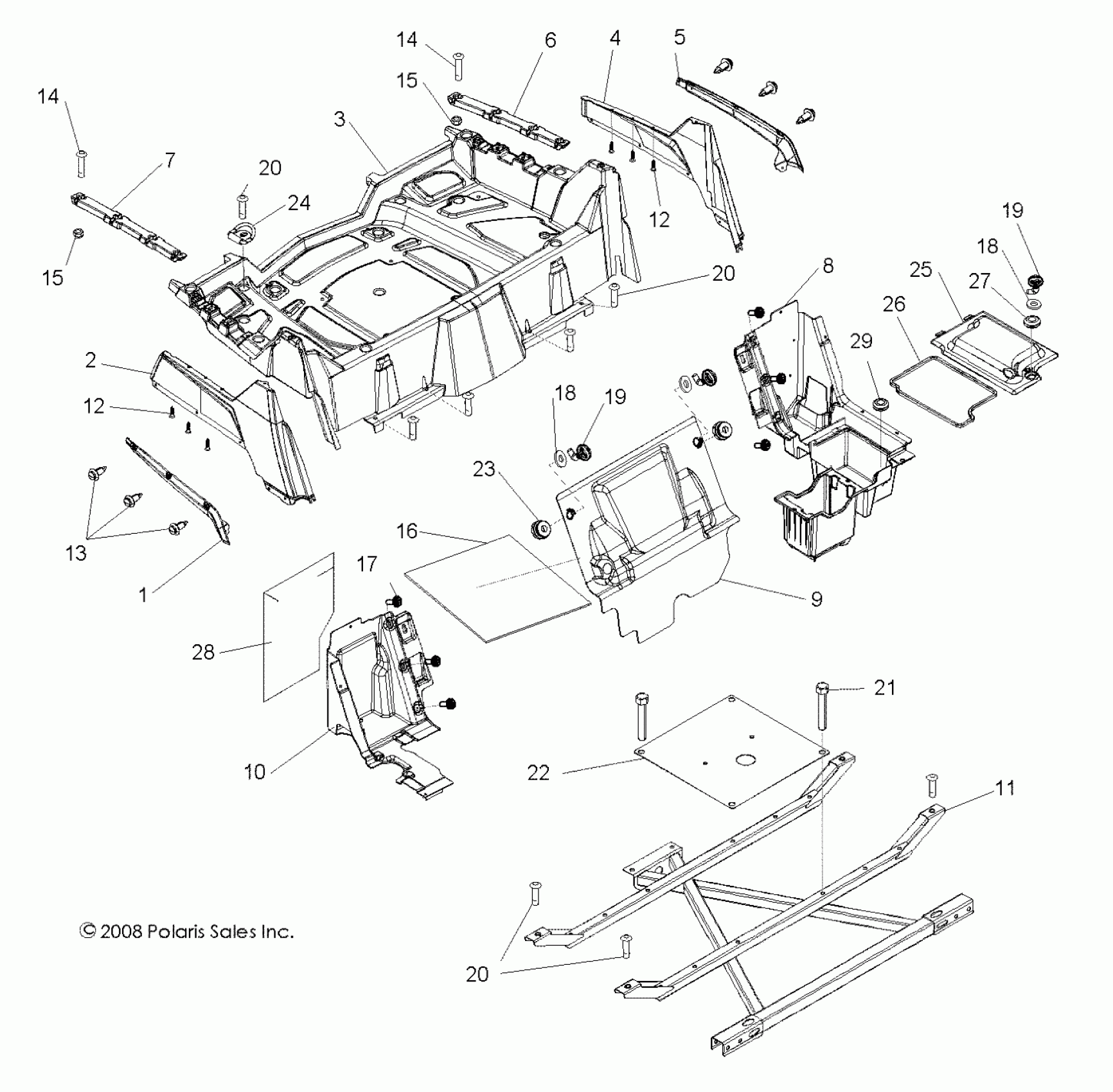

Polaris RZR 800 EFI - R10VH76 ALL OPTIONS/VY76AZ BODY, REAR RACK and FENDERS - R10VH76 ALL OPTIONS/VY76AZ (49RGRRACKMTG09RZR) Diagram

#

Description
Price

1

FLAIR, FENDER, REAR, RH BLACK

5438210-070

$44.51

2

Fender, Rear, RH, Pearl White [AA][AC][AE][AF]

5437474-538

Unavailable

2

Fender, Rear, RH, Red [AD]

5437393-293

$579.99

2

Fender, Rear, RH, Sunset Red [AZ]

5437474-520

Unavailable

2

Fender, Rear, RH, Stealth Black [AS]

5437474-464

Unavailable

2

Fender, Rear, RH, Tequila Gold [AT]

5437474-578

Unavailable

2

Fender, Rear, RH, Indy Red [AI]

5437474-293

Unavailable

2

Fender, Rear, RH, Turbo Silver [AJ]

5437474-402

$804.99

2

Fender, Rear, RH, Sagebrush Metallic [AG]

5437393-498

$279.27

3

Asm., Rack, Rear, Black [Incl. Warning Decals]

2633389-070

Unavailable

4

Fender, Rear, LH, Pearl White [AA][AC][AE][AF]

5437472-538

Unavailable

4

Fender, Rear, LH, Red [AD]

5437392-293

$579.99

4

Fender, Rear, LH, Sunset Red [AZ]

5437472-520

Unavailable

4

Fender, Rear, LH, Stealth Black [AS]

5437472-464

Unavailable

4

Fender, Rear, LH, Tequila Gold [AT]

5437472-578

$206.35

4

Fender, Rear, LH, Turbo Silver [AJ]

5437472-402

Unavailable

4

Fender, Rear, LH, Indy Red [AI]

5437472-293

Unavailable

4

Fender, Rear, LH, Sagebrush Metallic [AG]

5437392-498

$329.99

5

FLAIR, FENDER, REAR, LH, BLACK

5438211-070

$48.56

6

BRACKET, RACK, TIE DOWN, LH, BLACK

5436849-070

$52.60

7

BRACKET, RACK, TIE DOWN, RH, BLACK

5436850-070

$52.60

8

Panel, Divider, Rear, LH, Black

5437395-070

$145.70

9

Panel, Divider, Rear, Main, Black

5437394-070

$203.32

10

Panel, Divider, Rear, RH, Black

5437396-070

Unavailable

11

SUPPORT, RACK, REAR, BLACK

1015565-329

$91.27

12

SCREW

7517561

$1.59

12

SCREW

7517561

$1.59

13

Rivet

7661855

$1.19

14

SCREW

7517230

$1.19

14

SCREW

7517230

$1.19

15

NUT, FLANGED

7542153

$1.59

15

NUT, FLANGED

7542153

$1.59

16

Foam, Sound Attention, Cut

5813298

Unavailable

17

Screw

7512084

$1.19

18

WASHER

7555919

$4.99

18

WASHER

7555919

$4.99

19

LATCH, 1/4 TURN

7081500

$5.56

19

LATCH, 1/4 TURN

7081500

$5.56

20

SCREW

7517685

$1.59

20

SCREW

7517685

$1.59

20

SCREW

7517685

$1.59

21

SCREW

7518382

$5.69

22

Shield, Box

5251419

$52.60

23

GROMMET-LATCH

5413428

$3.17

24

Ring, Tiedown [AH][AM][AO][AP][AS][AZ]

7081195

$11.32

25

Cover, Storage, Black

5437822-070

$109.27

26

Seal, Storage

5813400

Unavailable

27

Grommet, Storage

5813401

Unavailable

28

FOIL, RH PANEL

5813380

$4.84

29

Grommet, Caplug

5413582

$4.03
