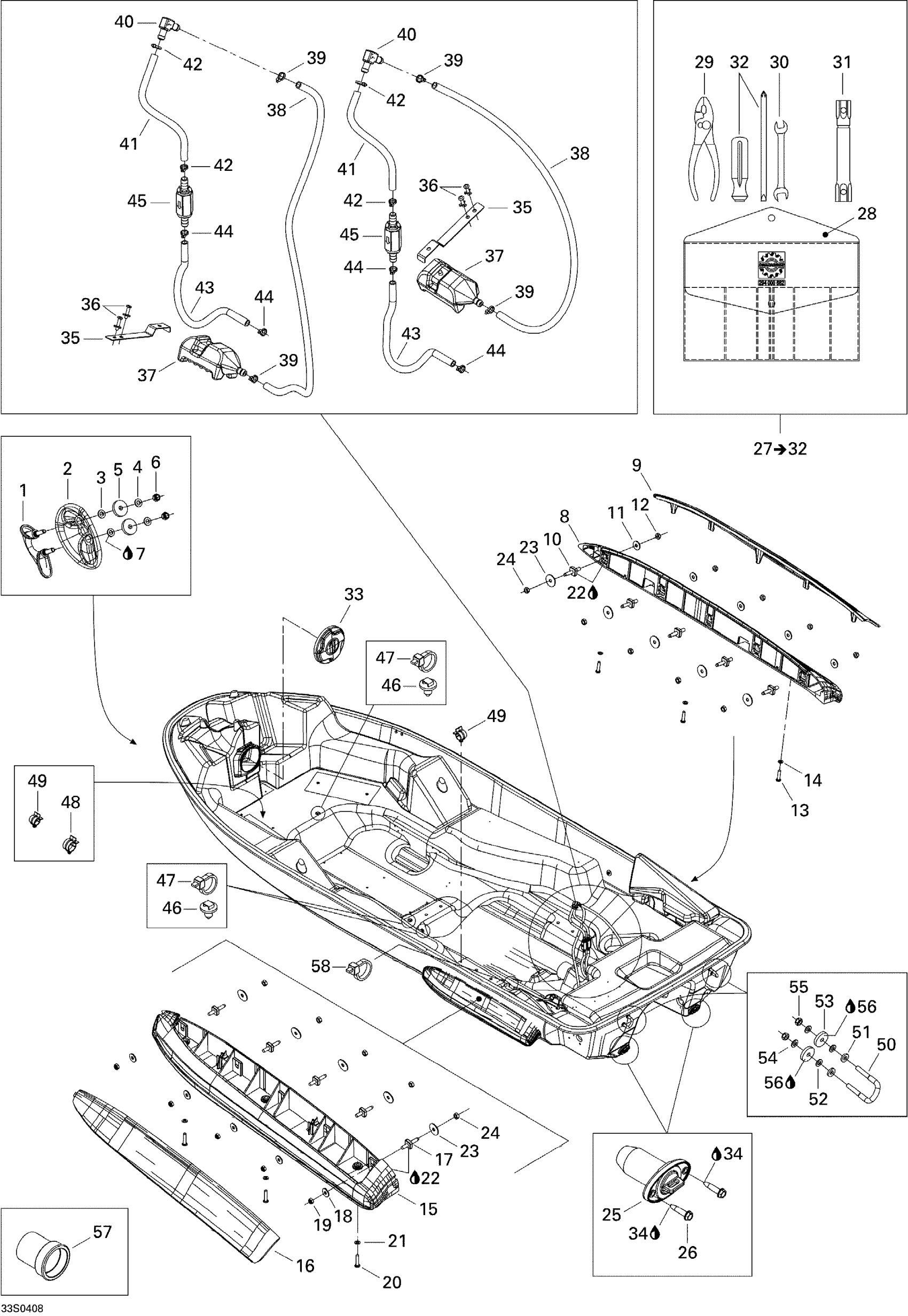

Sea-doo RXP, 2004 Hull Diagram
#
1
Eye-Bow (Black) This part replaces 292000708.
292000452
Unavailable
2
Black Shell
292001837
Unavailable
3
Stainless, Flat Washer 8 mm
234081600
Unavailable
4
Flat Washer 8 mm, Stainless
250200175
Unavailable
5
Rubber Washer
293830037
Unavailable
6
Hex. Elastic Nut M8
232581600
Unavailable
7
Silicone Sealant 51388, 300 ml
296000309
Unavailable
8
RH SPONSON - Call your local BRP dealership
292000818
Unavailable
9
RH SPONSON COVER - Call your local BRP dealership
292000815
Unavailable
10
THREADED INSERT - Call your local BRP dealership
293450227
Unavailable
11
Flat Washer M6, Stainless
234062600
Unavailable
12
Hex. Elastic Stop Nut M6
232561600
Unavailable
13
Phillips Screw 10-14 X 7/8”
211000037
Unavailable
14
Flat Washer M5, Stainless
234051600
Unavailable
15
LH SPONSON - Call your local BRP dealership
292000816
Unavailable
16
LH SPONSON COVER - Call your local BRP dealership
292000817
Unavailable
17
THREADED INSERT - Call your local BRP dealership
293450227
Unavailable
18
Flat Washer M6, Stainless
234062600
Unavailable
19
Hex. Elastic Stop Nut M6
232561600
Unavailable
20
Phillips Screw 10-14 X 7/8”
211000037
Unavailable
21
Flat Washer M5, Stainless
234051600
Unavailable
22
Silicone Sealant 51388, 300 ml
296000309
Unavailable
23
Flat Washer M6
250200046
Unavailable
24
Hex. Elastic Stop Nut M6
232561600
Unavailable
25
Drain Plug
292001252
Unavailable
26
Hex. Screw 10-14 X 7/8”
211000023
Unavailable
27
Tool Kit | Includes 52 to 57
294000682
Unavailable
28
Not Available As Spare Part - Friction Washer
Unavailable
29
Not Available As Spare Part - Friction Washer
Unavailable
30
FORK WRENCH - Call your local BRP dealership
529017300
Unavailable
31
Socket Wrench
529035731
Unavailable
32
DRIVER SCREW - Call your local BRP dealership
529019200
Unavailable
33
EXTINGUISHER HOUSING CAP - Call your local BRP dealership
269501939
Unavailable
34
Silicone Sealant 51388, 300 ml
296000309
Unavailable
35
LH SPRING CLIP - Call your local BRP dealership
292000398
Unavailable
36
Avdel Rivet 3/16"
293150037
Unavailable
37
Bailer Screen
292000688
Unavailable
38
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
39
Tie Wrap 94 mm | 4X4
293750001
Unavailable
40
ELBOW FITTING 90 - Call your local BRP dealership
293710057
Unavailable
41
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
42
Tie Wrap 94 mm | 4X4
293750001
Unavailable
43
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
Unavailable
44
Tie Wrap 94 mm | 4X4
293750001
Unavailable
45
Check Valve
276000093
Unavailable
46
Mount Dart
293730040
Unavailable
47
Tie-Rap 180 mm
414115200
Unavailable
48
Retainer
275500590
Unavailable
49
Cable Retainer
275500527
Unavailable
50
U-Clamp
292000933
Unavailable
51
Flat Washer M8.5 x 18
293050001
Unavailable
52
Flat Washer 8 mm, Nylon
234081100
Unavailable
53
Rubber Washer
293830037
Unavailable
54
Flat Washer 8 mm, Stainless
250200175
Unavailable
55
Hex. Elastic Nut M8
232581600
Unavailable
56
Silicone Sealant 51388, 300 ml
296000309
Unavailable
57
HULL INSERT, 50 MM - Call your local BRP dealership
292000974
Unavailable
58
Tie Wrap 368 mm
293750008
Unavailable
