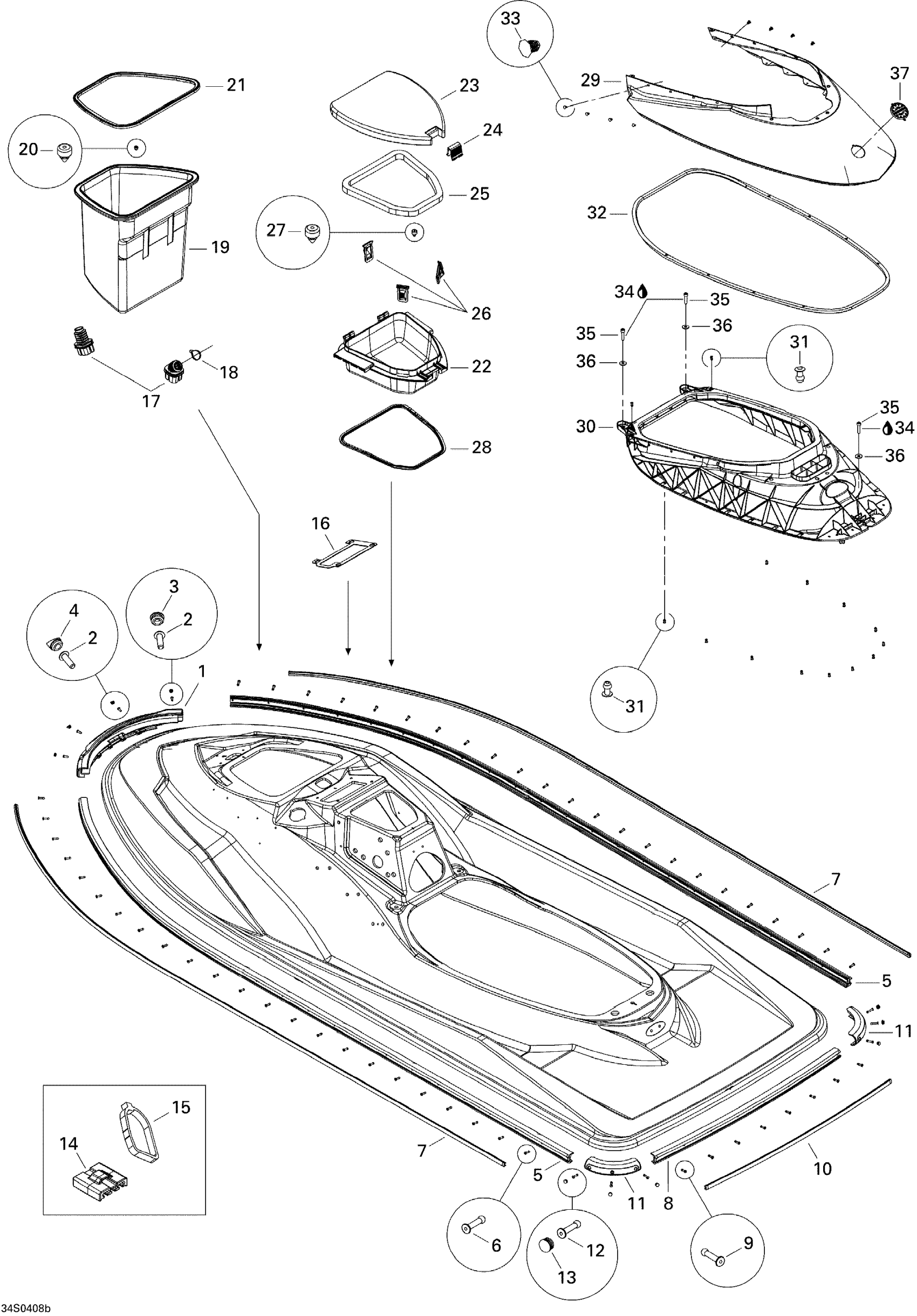

Sea-doo RXP, 2004 Body 2 Diagram
#
1
BUMPER NOSE, BLACK - Call your local BRP dealership
291001942
Unavailable
2
Plastite Torx Screw #10 X 7/8"
250000207
Unavailable
3
Bumper Plug, Black
291001519
Unavailable
4
Bumper Plug, Black
291001040
Unavailable
5
Black, Side Bumper
204050270
Unavailable
6
Pop Rivet 3/16"
293150005
Unavailable
7
Side Bumper Trim, Apple Green
291001849
Unavailable
7
SIDE BUMPER TRIM - Call your local BRP dealership
291001840
Unavailable
8
REAR BUMPER, BLACK - Call your local BRP dealership
291002242
Unavailable
9
Pop Rivet 3/16"
293150005
Unavailable
10
SIDE BUMPER TRIM - Call your local BRP dealership
291001840
Unavailable
10
Rear Bumper Trim, Apple Green
291001850
Unavailable
11
Bumper Corner
291002244
Unavailable
12
Pop Rivet 3/16"
293150013
Unavailable
13
Bumper Plug, Black
291000339
Unavailable
14
Tie-Rap Mount
293750025
Unavailable
15
Tie-Rap 180 mm
414115200
Unavailable
16
GASKET - Call your local BRP dealership
293250171
Unavailable
17
GROMMET - Call your local BRP dealership
293720042
Unavailable
18
Tie-Rap 180 mm
414115200
Unavailable
19
STORAGE TRAY - Call your local BRP dealership
269500691
Unavailable
20
Rubber Bumper
293830005
Unavailable
21
Seal Tray 1000Mm Long
219704368
Unavailable
22
GLOVE BOX - Call your local BRP dealership
269500717
Unavailable
23
GLOVE BOX DOOR - Call your local BRP dealership
269500928
Unavailable
24
LATCH - Call your local BRP dealership
269500719
Unavailable
25
GASKET - Call your local BRP dealership
293250100
Unavailable
26
RETAINER LATCH - Call your local BRP dealership
269500820
Unavailable
27
Rubber Bumper
293830005
Unavailable
28
Was 293250099 Gasket
219704377
Unavailable
29
UPPER ENGINE COVER - Call your local BRP dealership
291002618
Unavailable
30
LOWER ENGINE COVER - Call your local BRP dealership
291002542
Unavailable
31
Pop Rivet 3/16"
293150088
Unavailable
32
Seal Tray 1000Mm Long
219704368
Unavailable
33
Black, Dart
293730016
Unavailable
34
Loctite 243, 10 ml
293800060
Unavailable
35
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership
205083560
Unavailable
36
Flat Washer 8 mm, Stainless
234082600
Unavailable
37
Bumper Plug
291002467
Unavailable
