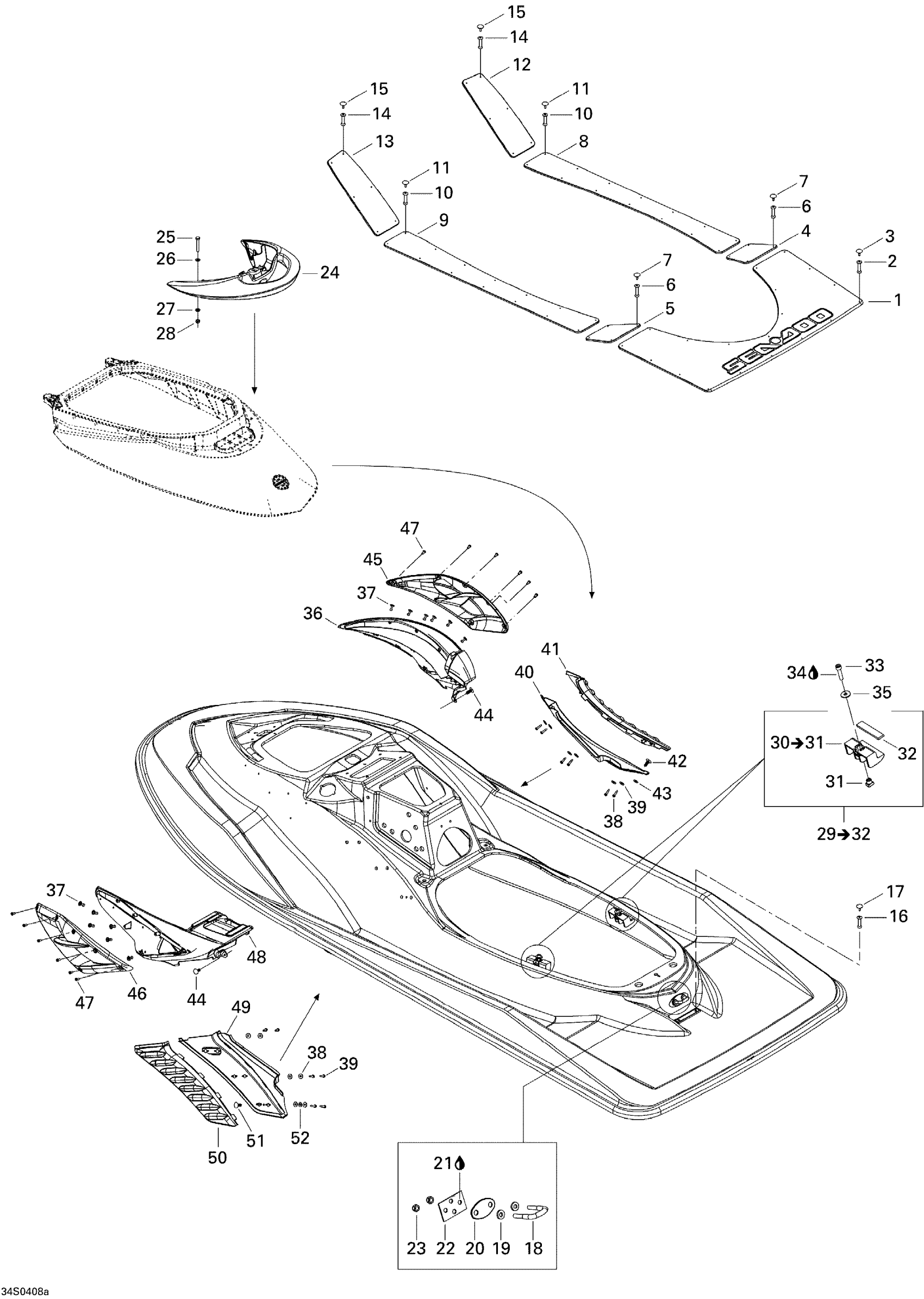

Sea-doo RXP, 2004 Body 1 Diagram
#
1
Rear Carpet | RXP (Apple Green)
291001916
Unavailable
1
Rear Carpet | RXP (Yellow)
291001996
Unavailable
2
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
3
Black, Snap Cap
293000014
Unavailable
4
RH Rear Carpet
291001917
Unavailable
5
LH Rear Carpet
291001918
Unavailable
6
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
7
Black, Snap Cap
293000014
Unavailable
8
RH Center Carpet
291001988
Unavailable
9
LH Center Carpet
291001989
Unavailable
10
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
11
Black, Snap Cap
293000014
Unavailable
12
RH Front Carpet
291001983
Unavailable
13
LH Front Carpet
291001984
Unavailable
14
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
15
Black, Snap Cap
293000014
Unavailable
16
Rivet 1/8"
293150016
Unavailable
17
Black, Snap Cap
293000014
Unavailable
18
U-CLAMP - Call your local BRP dealership
292000011
Unavailable
19
Flat Washer M8.5 x 18
293050001
Unavailable
20
Black, Finition Plate
291001386
Unavailable
21
Silicone Sealant 51388, 300 ml
296000309
Unavailable
22
RETAINER PLATE - Call your local BRP dealership
291001387
Unavailable
23
Hex. Elastic Nut M8
232581600
Unavailable
24
Grab Handle, Apple Green
269000740
Unavailable
24
GRAB HANDLE, YELLOW - Call your local BRP dealership | RXP (Yellow)
269001104
Unavailable
25
HEX. SCREW M8 X 55 - Call your local BRP dealership
207085560
Unavailable
26
Stainless, Flat Washer 8 mm
234081600
Unavailable
27
Flat Washer 8 mm, Stainless
234082600
Unavailable
28
Hex. Elastic Nut M8
232581600
Unavailable
29
Link Bridge Ass'y
291001931
Unavailable
30
Link Bridge Ass'y
291001931
Unavailable
31
Square Nut M8
211100033
Unavailable
32
Pad
291001932
Unavailable
33
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership
205083560
Unavailable
34
Loctite 243, 10 ml
293800060
Unavailable
35
Flat Washer 8 mm, Stainless
234082600
Unavailable
36
RH Superior Moulding, Apple Green | RXP (Apple Green)
291001877
Unavailable
36
RH Superior Moulding, Metallic Pewter | RXP (Yellow)
291001997
Unavailable
37
Pop Rivet 3/16"
293150123
Unavailable
38
Hex. Screw 10-14 X 7/8”
211000023
Unavailable
39
Flat Washer, Stainless/Neoprene
211200055
Unavailable
40
RH Moulding, Apple Green
291001635
Unavailable
40
RH Moulding, Metallic Pewter | RXP (Yellow)
291002003
Unavailable
41
RH KNEE PAD, SILVER - Call your local BRP dealership
269001293
Unavailable
41
RH Knee Pad, Black | RXP (Yellow)
269000746
Unavailable
42
Black, Dart
293730006
Unavailable
43
Rubber Washer 5 mm
250200024
Unavailable
44
Black, Dart
293730006
Unavailable
45
RH GRILL - Call your local BRP dealership
273000218
Unavailable
46
LH GRILL - Call your local BRP dealership
273000219
Unavailable
47
Allen Plastite Screw #12
250000099
Unavailable
48
LH Superior Moulding, Apple Green | RXP (Apple Green)
291001876
Unavailable
48
LH Superior Moulding, Metallic Pewter | RXP (Yellow)
291001999
Unavailable
49
LH Moulding, Apple Green
291001634
Unavailable
49
LH Moulding, Metallic Pewter | RXP (Yellow)
291002004
Unavailable
50
LH KNEE PAD, SILVER - Call your local BRP dealership
269001292
Unavailable
50
LH Knee Pad, Black | RXP (Yellow)
269000745
Unavailable
51
Black, Dart
293730006
Unavailable
52
Rubber Washer 5 mm
250200024
Unavailable
