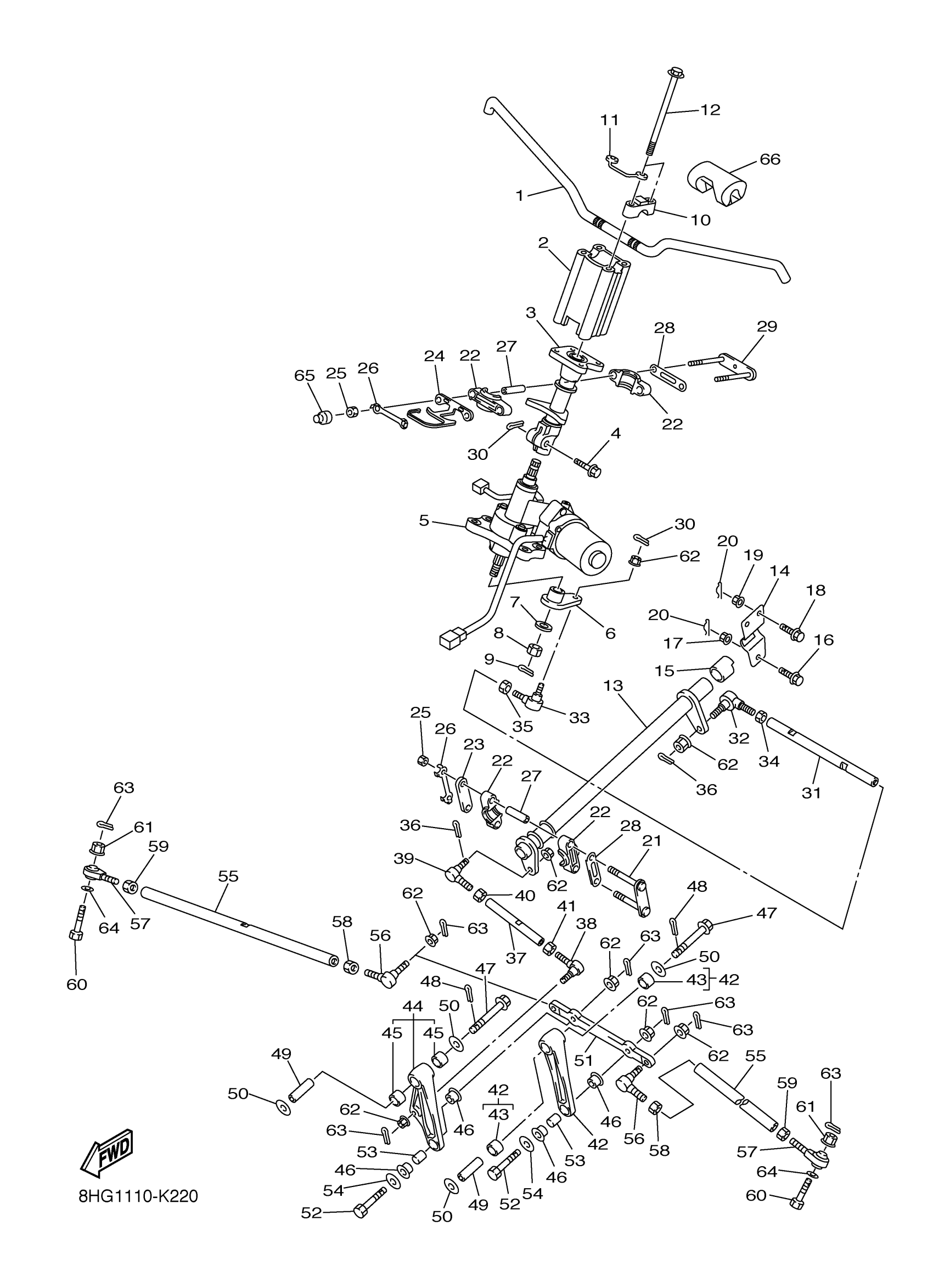

Find the part on the Steering diagram for your 2012 Yamaha Apex (RX10PBL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Apex (RX10PBL) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

8HG-26111-00-00

1
Out of stock

2

JOINT

8GT-2381B-00-00

—
Out of stock

3

COLUMN, STEERING 2

8HG-23813-01-00

—
Out of stock

4

BOLT, WITH WASHER

90119-08144-00

—
Out of stock

5

POWER STRG. ACTUATOR ASSY

3B4-238B0-51-00

—
Out of stock

6

ARM, PITMAN

8HG-23816-00-00

1
Out of stock

7

WASHER, PLATE

90201-16021-00

1
Out of stock

8

NUT U

95612-16100-00

—
Out of stock

9

PIN, COTTER

91490-20035-00

1
Out of stock

10

HOLDER, HANDLE UPPER

1E6-23441-00-00

1
Out of stock

11

HOLDER

8FP-23857-00-00

1
Out of stock

12

BOLT

8GT-23876-00-00

1
Out of stock

13

COLUMN, STEERING

8FA-23811-00-00

—
Out of stock

14

COVER, STEERING

8FA-23818-02-00

1
Out of stock

15

BEARING, STEERING UPPER

8FA-23873-01-00

1
Out of stock

16

BOLT, WASHER BASED(4KD)

90105-10728-00

—
Out of stock

17

NUT, S/L FLANGE

95602-10200-00

—
Out of stock

18

BOLT, WASHER BASED(JA1)

90105-08552-00

—
Out of stock

19

NUT, SELF-LOCKING

95602-08200-00

—
Out of stock

20

CLIP 136253750000

90468-12006-00

—
Out of stock

21

HOLDER, BEARING

8FA-23872-00-00

—
Out of stock

22

PLANE BEARING, STEERING

8FA-23812-00-00

—
Out of stock

23

HOLDER 2

8FA-23867-00-00

—
Out of stock

24

HOLDER, BEARING

8FP-23872-00-00

—
Out of stock

25

NUT(6L2)

95333-08600-00

—
Out of stock

26

WASHER, LOCK 1

1UY-23894-01-00

—
Out of stock

27

COLLAR

8HF-2412G-00-00

—
Out of stock

28

WASHER, PLAIN

8FA-23843-00-00

—
Out of stock

29

HOLDER, BEARING

8HG-23872-00-00

—
Out of stock

30

PIN, COTTER

91490-20025-00

—
Out of stock

31

ROD, STEERING

8FA-23828-00-00

—
Out of stock

32

JOINT, UNIVERSAL 3

8CR-23847-00-00

—
Out of stock

33

JOINT, UNIVERSAL 2

8CR-23845-10-00

—
Out of stock

34

NUT (3WP1)

95317-10700-00

—
Out of stock

35

NUT, HEXAGON (8A5)

90170-10186-00

—
Out of stock

36

PIN, COTTER

91490-20025-00

—
Out of stock

37

ROD, STEERING RELAY

8HG-23821-00-00

—
Out of stock

38

JOINT, UNIVERSAL 3

8CR-23847-00-00

—
Out of stock

39

JOINT, UNIVERSAL 2

8CR-23845-10-00

—
Out of stock

40

NUT (3WP1)

95317-10700-00

—
Out of stock

41

NUT, HEXAGON (8A5)

90170-10186-00

—
Out of stock

42

ARM PIVOT ASSY

8FG-2389K-00-00

—
Out of stock

43

BUSH, FORMED

90383-17001-00

—
Out of stock

44

ARM PIVOT ASSY. , 2

8FA-2389M-00-00

—
Out of stock

45

BEARING

93317-41785-00

—
Out of stock

46

BUSH, SOLID

90381-14001-00

—
Out of stock

47

BOLT, FLANGE

90105-12017-00

—
Out of stock

48

CLIP, RING

8FA-2384N-00-00

—
Out of stock

49

COLLAR

8FA-2412G-00-00

—
Out of stock

50

WASHER, PLATE

90201-121U3-00

—
Out of stock

51

ARM, IDLER

8FU-23826-00-00

—
Out of stock

52

BOLT, PIN HOLE (8M6)

90102-10044-00

—
Out of stock

53

COLLAR

90387-10070-00

—
Out of stock

54

WASHER PLATE (3L6)

90201-10742-00

—
Out of stock

55

ROD, TIE

8HG-23831-00-00

—
Out of stock

56

JOINT, UNIVERSAL 2

8CR-23845-10-00

—
Out of stock

57

JOINT, UNIVERSAL 3

8FA-23847-00-00

—
Out of stock

58

NUT (3WP1)

95317-10700-00

—
Out of stock

59

NUT, HEXAGON (8A5)

90170-10186-00

—
Out of stock

60

BOLT, PIN HOLE (8M6)

90102-10044-00

—
Out of stock

61

NUT, NYLON

95707-10300-00

—
Out of stock

62

NUT, FLANGE(3BM)

95704-10500-00

—
Out of stock

63

PIN, COTTER

91490-20025-00

—
Out of stock

64

WASHER PLATE (3L6)

90201-08759-00

—
Out of stock

65

CAP 2

35R-25335-00-00

—
Out of stock

66

PAD, STEERING

8FR-23815-00-00

—
Out of stock
