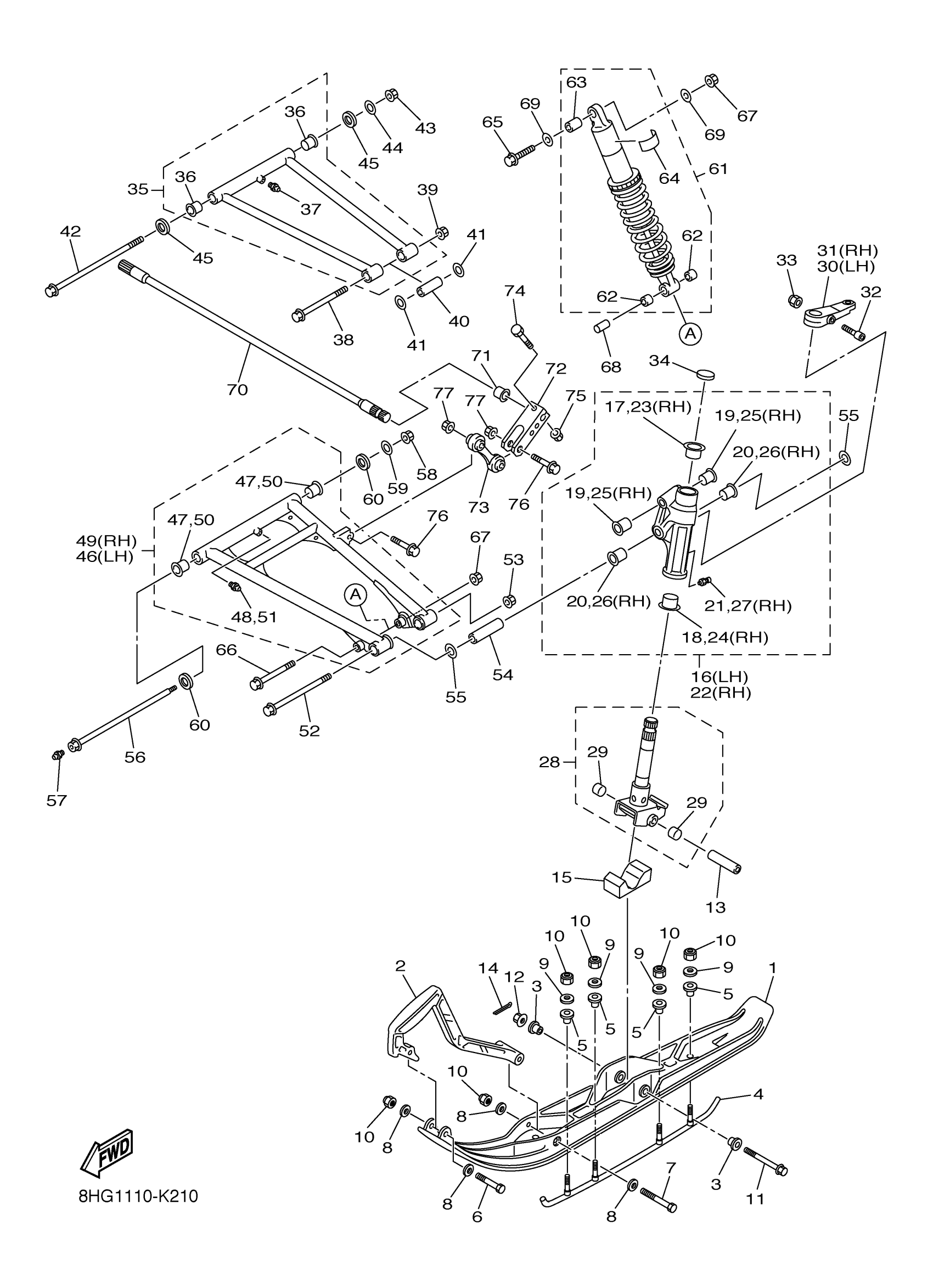

Find the part on the Ski diagram for your 2012 Yamaha Apex (RX10PBL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Yamaha Apex (RX10PBL) Ski Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8HV-F3711-00-00

1
Out of stock

2

REINFORCEMENT, HEAD

8HG-23712-20-00

1
Out of stock

3

. COLLAR 1

8EX-F3754-00-00

1
Out of stock

4

8HG RUNNER (2011 APEX)

SMA-8HG11-00-00

1
Out of stock

5

BUSH, SKI 1

8EK-F3751-00-00

1
Out of stock

6

BOLT, HEXAGON

97017-08055-00

1
Out of stock

7

BOLT, REINFORCEMENT HEAD 2

8HG-F3756-10-00

1
Out of stock

8

WASHER, PLATE (3L7)

90201-08784-00

1
Out of stock

9

WASHER 2

8HG-F3738-00-00

1
Out of stock

10

NUT, NYLON

95717-08300-00

1
Out of stock

11

BOLT, FLANGE

90105-10070-00

1
Out of stock

12

NUT, SELF-LOCKING(JN5)

95607-10200-00

1
Out of stock

13

COLLAR

90387-1012H-00

1
Out of stock

14

PIN, COTTER

91490-20025-00

1
Out of stock

15

STOPPER 1

8HG-23743-00-00

1
Out of stock

16

STEERING KNUCKLE ASSY (LEFT)

8HG-23501-00-00

—
Out of stock

17

BUSH, SOLID

90381-25115-00

—
Out of stock

18

BUSH, SOLID

90381-32001-00

—
Out of stock

19

BUSH, SOLID

90381-15N50-00

—
Out of stock

20

BUSH, SOLID

90381-18N51-00

—
Out of stock

21

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

22

STEERING KNUCKLE ASSY (RIGHT)

8HG-23502-00-00

—
Out of stock

23

BUSH, SOLID

90381-25115-00

—
Out of stock

24

BUSH, SOLID

90381-32001-00

—
Out of stock

25

BUSH, SOLID

90381-15N50-00

—
Out of stock

26

BUSH, SOLID

90381-18N51-00

—
Out of stock

27

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

28

COLUMN, SKI ASSY

8HG-23803-00-00

—
Out of stock

29

BUSH, BIMETAL FORMED

90384-16N51-00

—
Out of stock

30

ARM, OUTSIDE 1

8FA-23851-00-00

—
Out of stock

31

ARM, OUTSIDE 2

8FA-23852-00-00

—
Out of stock

32

BOLT, HEXAGON SOCKET HEAD

90110-08104-00

—
Out of stock

33

NUT, SELF-LOCKING

95602-08200-00

—
Out of stock

34

CAP, CASE

3YK-22472-40-00

—
Out of stock

35

FRONT UPPER ARM COMP.

8HG-23540-00-00

—
Out of stock

36

BUSH, SOLID

90381-15N50-00

—
Out of stock

37

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

38

BOLT, FLANGE

90105-10230-00

—
Out of stock

39

NUT, S/L FLANGE

95602-10200-00

—
Out of stock

40

COLLAR

90387-10099-00

—
Out of stock

41

WASHER, PLATE

90201-10052-00

—
Out of stock

42

BOLT

90109-10056-00

—
Out of stock

43

NUT, S/L FLANGE

95602-10200-00

—
Out of stock

44

WASHER, PLATE

90201-10052-00

—
Out of stock

45

WASHER

90209-15N50-00

—
Out of stock

46

FRONT LOWER ARM COMP. (LEFT)

8HG-23570-00-00

—
Out of stock

47

BUSH, SOLID

90381-16N51-00

—
Out of stock

48

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

49

FRONT LOWER ARM COMP. (RIGHT)

8HG-23580-00-00

—
Out of stock

50

BUSH, SOLID

90381-16N51-00

—
Out of stock

51

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

52

BOLT, FLANGE

90105-12078-00

—
Out of stock

53

NUT, SELF-LOCKING

95602-12200-00

—
Out of stock

54

COLLAR

90387-12054-00

—
Out of stock

55

WASHER, PLATE(8CJ)

90201-120T5-00

—
Out of stock

56

BOLT, UNION

90401-10045-00

—
Out of stock

57

NIPPLE, GREASE

93700-06M03-00

1
Out of stock

58

NUT, S/L FLANGE

95602-10200-00

—
Out of stock

59

WASHER, PLATE

90201-10052-00

—
Out of stock

60

WASHER

90209-15N50-00

—
Out of stock

61

ABSORBER ASSY 1

8HG-2376A-00-00

—
Out of stock

62

BUSH, BIMETAL FORMED

90384-15N51-00

—
Out of stock

63

DAMPER, BUSH B

8FA-2331R-00-00

—
Out of stock

64

LABEL, WARNING

4AA-22259-60-00

—
Out of stock

65

BOLT, WASHER BASED (4K0)

90105-10169-00

—
Out of stock

66

BOLT, FLANGE

90105-10288-00

—
Out of stock

67

NUT, S/L FLANGE

95602-10200-00

—
Out of stock

68

COLLAR

90387-10N59-00

—
Out of stock

69

WASHER, PLATE

90201-10052-00

—
Out of stock

70

BAR, STABILIZER FRONT

8FG-2386E-10-00

—
Out of stock

71

BUSH, STABILIZER FRONT

8FG-2386G-00-00

—
Out of stock

72

ARM, STABILIZER

8FG-2386L-00-00

—
Out of stock

73

JOINT, STABILIZER 1

8ES-2385L-00-00

—
Out of stock

74

BOLT

90101-06046-00

—
Out of stock

75

NUT, U FLANGE

95604-06200-00

—
Out of stock

76

BOLT, FLANGE(4FM)

95814-08030-00

—
Out of stock

77

NUT, U FLANGE(4KG)

95604-08200-00

—
Out of stock
