2005 Yamaha RX-1 (RX10K) Engine Bracket Diagram

← All diagrams

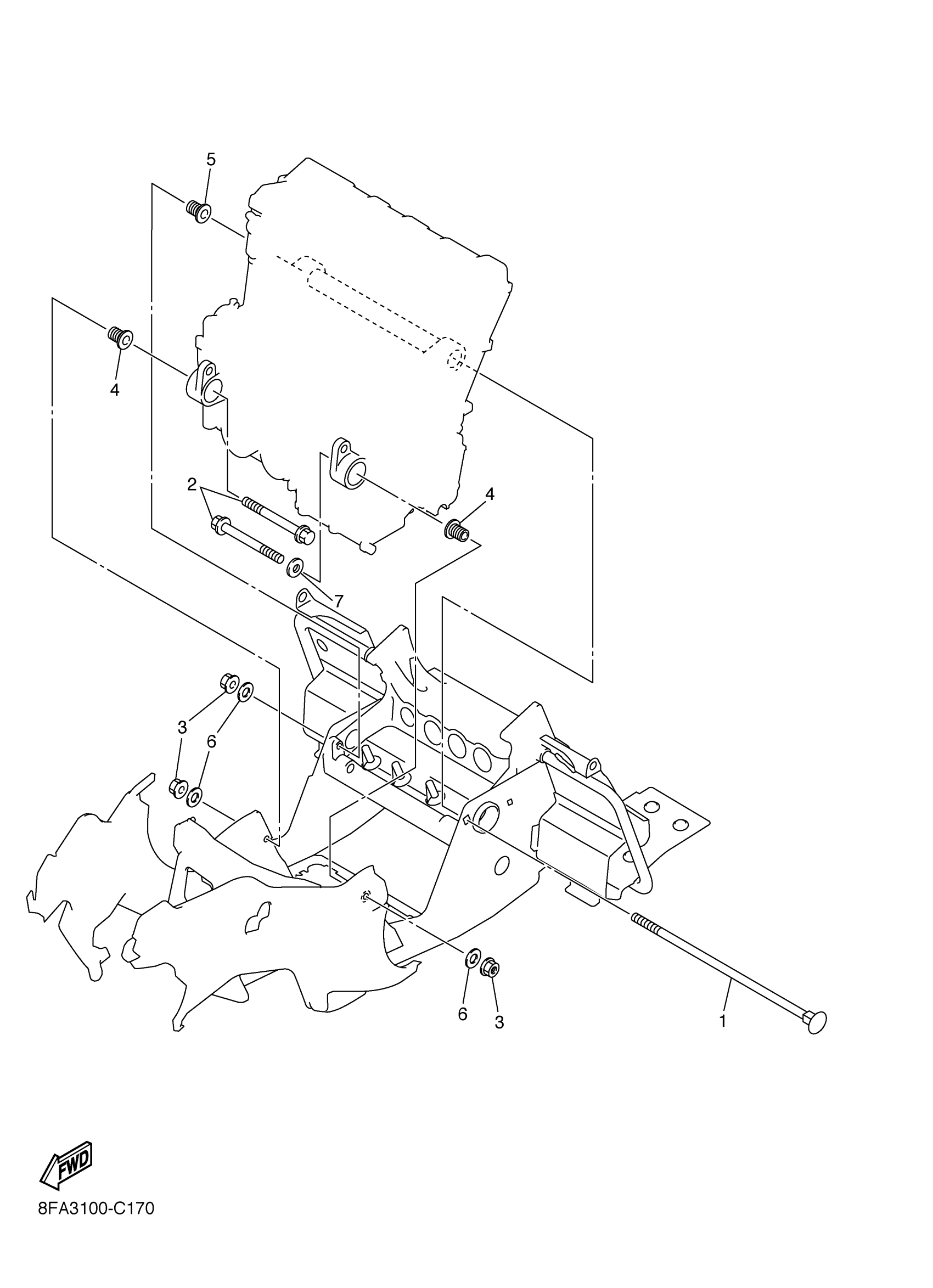

Find the part on the Engine Bracket diagram for your 2005 Yamaha RX-1 (RX10K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Yamaha RX-1 (RX10K) Engine Bracket Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT, ENGINE MOUNT

8FA-21481-02-00

—

$51.09

In stock

2

BOLT, FLANGE

95817-12100-00

1

$3.02

In stock

3

NUT(3EF)

90179-12657-00

1

$5.32

In stock

4

BOLT, ENGINE ADJUSTING

8FG-21495-00-00

—

$24.86

In stock

5

BOLT

8FG-2149C-00-00

1

$31.97

In stock

6

WASHER, PLATE(8CJ)

90201-120T5-00

1

$4.91

In stock

7

WASHER, PLATE (5E3)

90201-125A3-00

1
Out of stock
