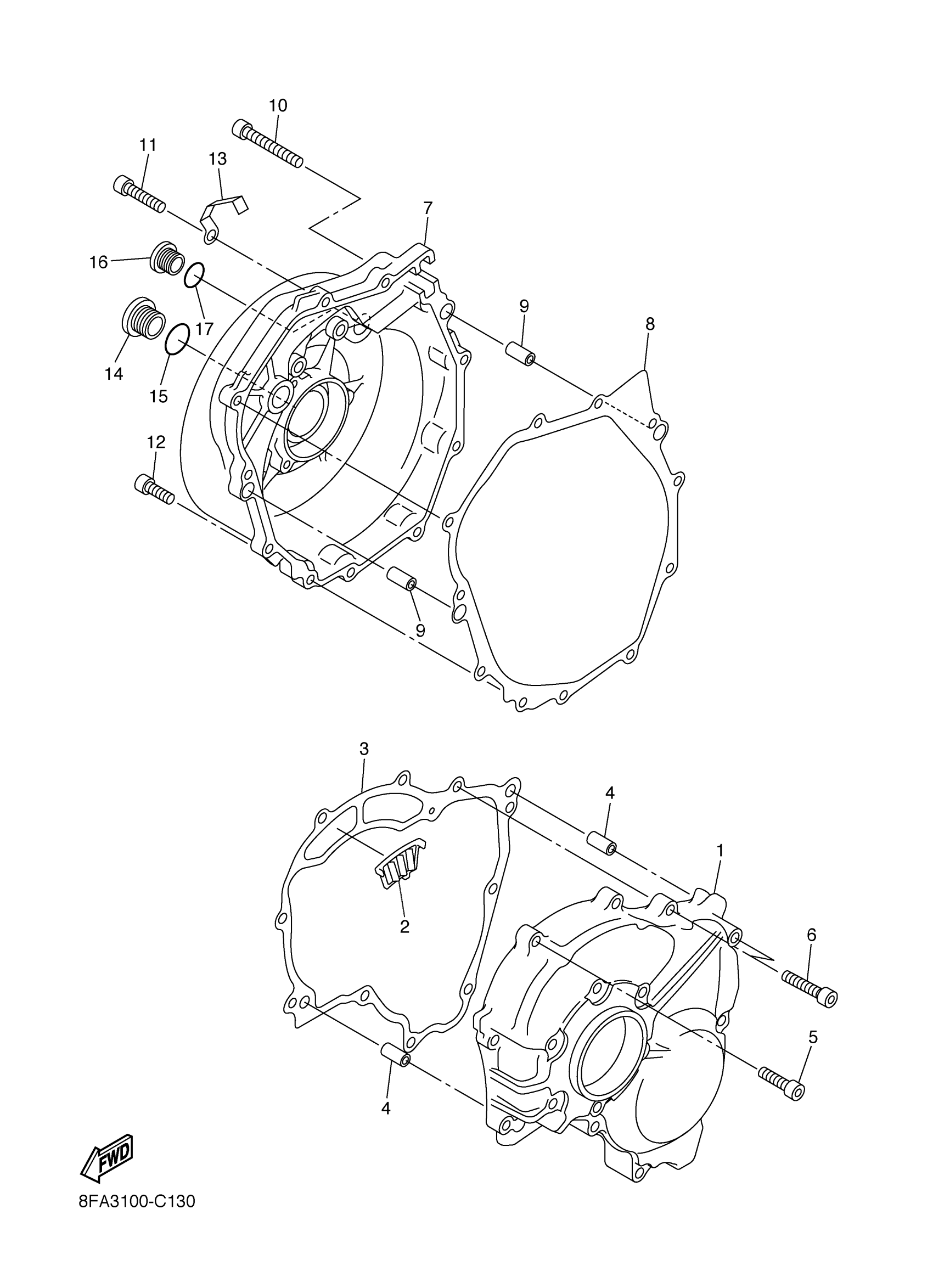

Yamaha RX10K (RX-1) 8FU1 2005 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

8FA-15411-00-00

Unavailable

2

SEPARATOR, OIL

8FA-15358-00-00

Unavailable

3

GASKET, CRANKCASE COVER 1

8FA-15451-01-00

Unavailable

4

PIN, STRAIGHT

90250-08017-00

Unavailable

5

BOLT,SOCKET

91317-06025-00

$1.91

6

BOLT, HEXAGON SOCKET HEAD

90110-06058-00

Unavailable

7

COVER, CRANKCASE 2

8FA-15421-02-00

Unavailable

8

GASKET, CRANKCASE COVER 2

8FA-15461-01-00

$13.39

9

PIN, DOWEL

99530-08012-00

$4.89

10

BOLT,SOCKET

91317-06035-00

$3.27

11

BOLT,SOCKET

91317-06025-00

$1.91

12

BOLT,SOCKET HEAD

91314-06020-00

$1.91

13

CLAMP(4AJ)

90462-08225-00

$7.35

14

PLUG, STRAIGHT SCREW (15A)

90340-32080-00

$24.85

15

O-RING (341)

93210-32172-00

$5.39

16

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

Unavailable

17

O-RING (2H9)

93210-14369-00

Unavailable
