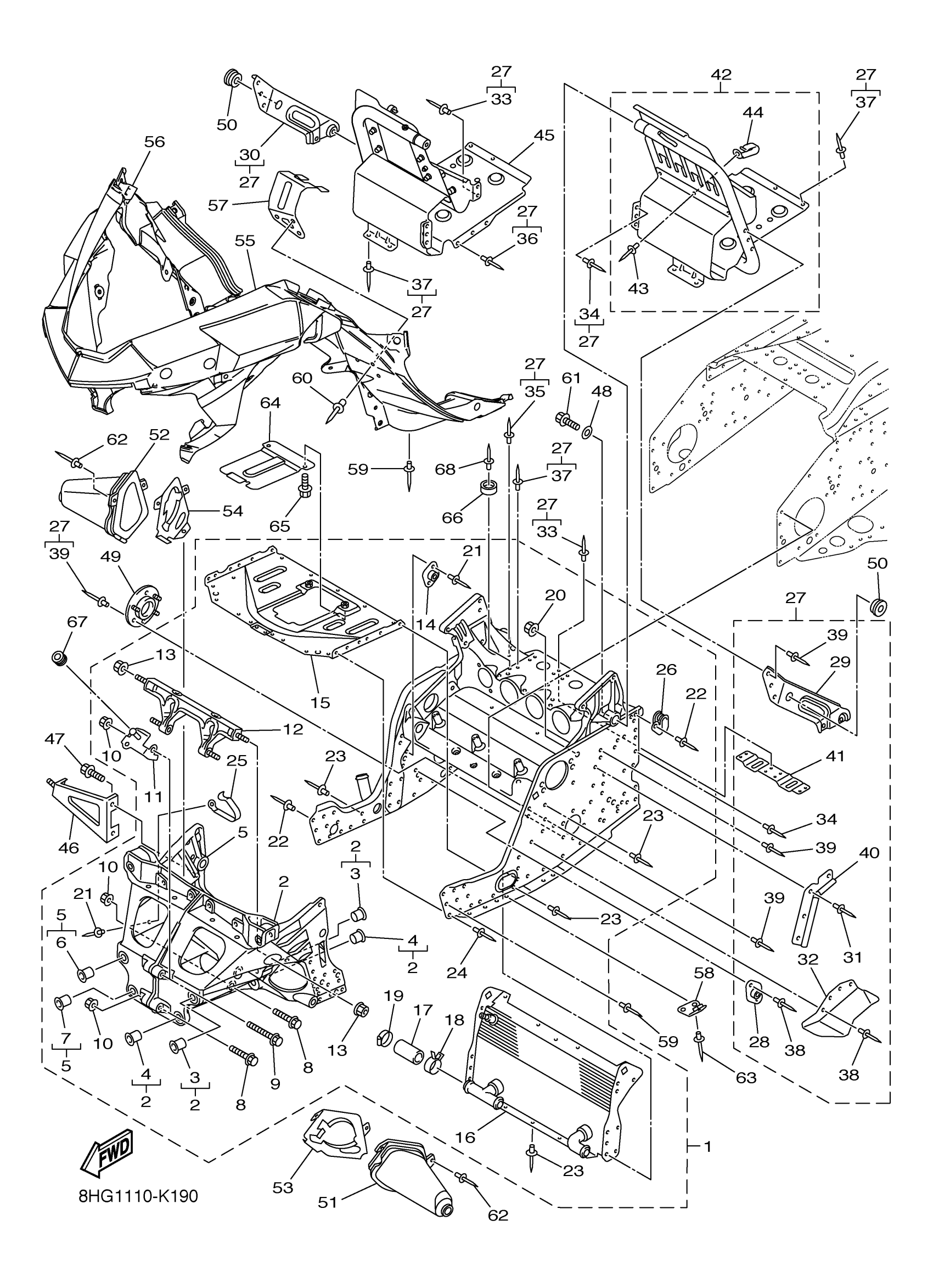

2017 Yamaha Apex (RX10HL) Frame 1 Diagram
Find the part on the Frame 1 diagram for your 2017 Yamaha Apex (RX10HL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
5
BULKHEAD 2
8FA-W2198-20-00
—
Out of stock
19
HOSE CLAMP ASSY
90450-35001-00
—
Out of stock
44
CLAMP(51Y)
90465-08277-00
—
Out of stock
60
RIVET, BLIND(8CH)
90267-47187-00
—
Out of stock
