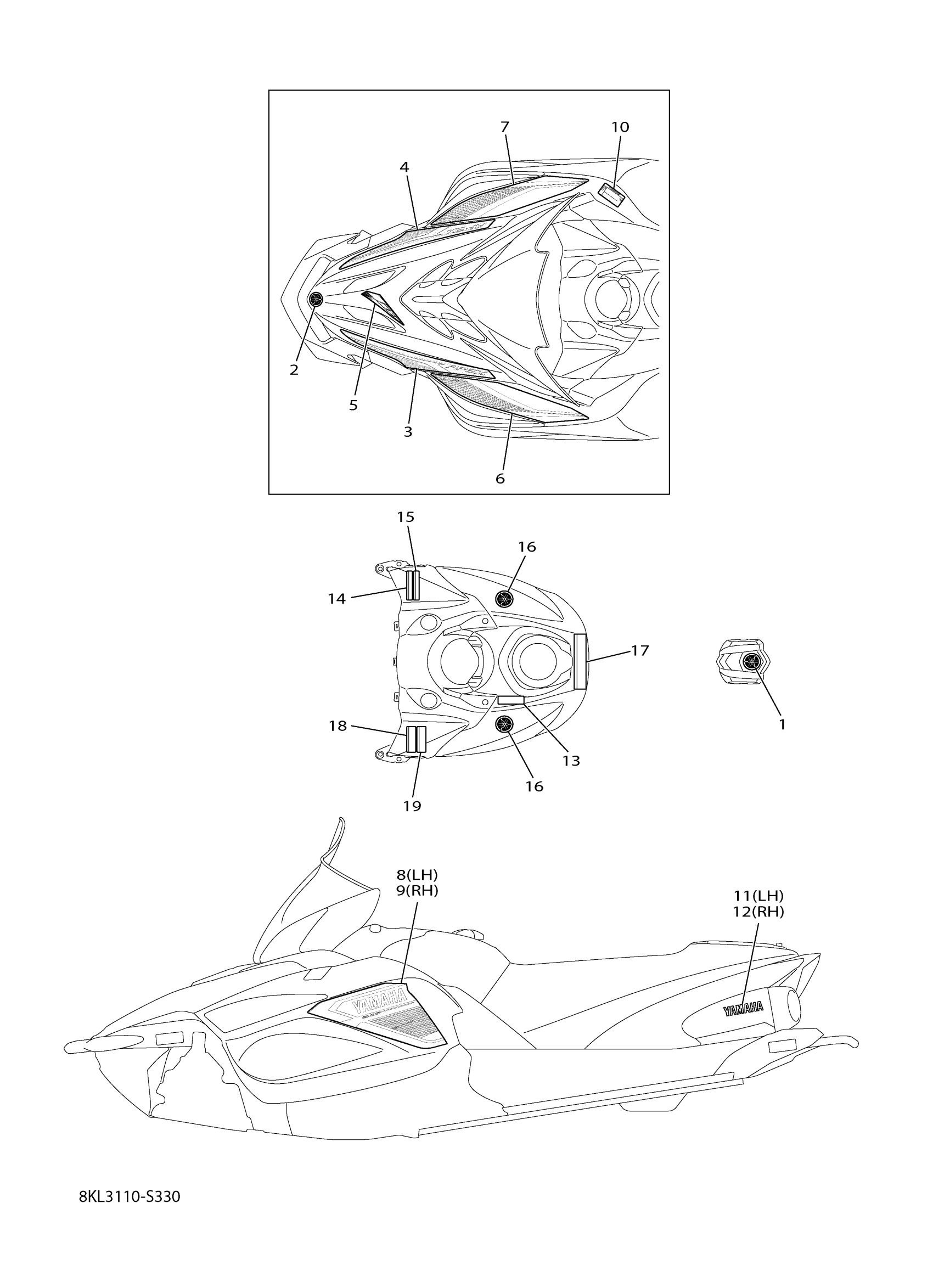

Find the part on the Emblem diagram for your 2017 Yamaha Apex (RX10HL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Apex (RX10HL) Emblem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EMBLEM

8AC-2414B-01-00

1

$33.63

In stock

2

EMBLEM

8AC-2414B-01-00

1

$33.63

In stock

3

GRAPHIC, SHROUD

8KM-7711L-00-00

1

$61.08

In stock

4

GRAPHIC, SHROUD

8KM-7711M-00-00

1

$61.08

In stock

5

GRAPHIC 3

8HG-7711C-00-00

—

$25.49

In stock

6

GRAPHIC 1

8KM-7711A-00-00

1

$121.88

In stock

7

GRAPHIC 2

8KM-7711B-00-00

1

$121.88

In stock

8

GRAPHIC 4

8KM-7711D-00-00

—

$108.37

In stock

9

GRAPHIC 5

8KM-7711E-00-00

—

$108.37

In stock

10

LABEL, WARNING 3

8FR-77763-E0-00

1

$3.52

In stock

11

EMBLEM, YAMAHA

99241-00140-00

1
Out of stock

12

EMBLEM, YAMAHA

99241-00140-00

1
Out of stock

13

LABEL, CAUTION

8GC-2415E-E0-00

—

$1.88

In stock

14

LABEL, WARNING 2

8GC-77762-A0-00

1

$3.60

In stock

15

LABEL, WARNING 2

8GC-77762-B0-00

—

$3.60

In stock

16

EMBLEM

5PW-2413B-00-00

—
Out of stock

17

LABEL, WARNING 1

8FR-77761-E0-00

—

$15.49

In stock

18

LABEL, NOTICE WINDSHIELD 1

8ET-2815K-00-00

—

$6.23

In stock

19

LABEL, NOTICE WINDSHIELD 1

8ET-2815K-11-00

—
Out of stock
