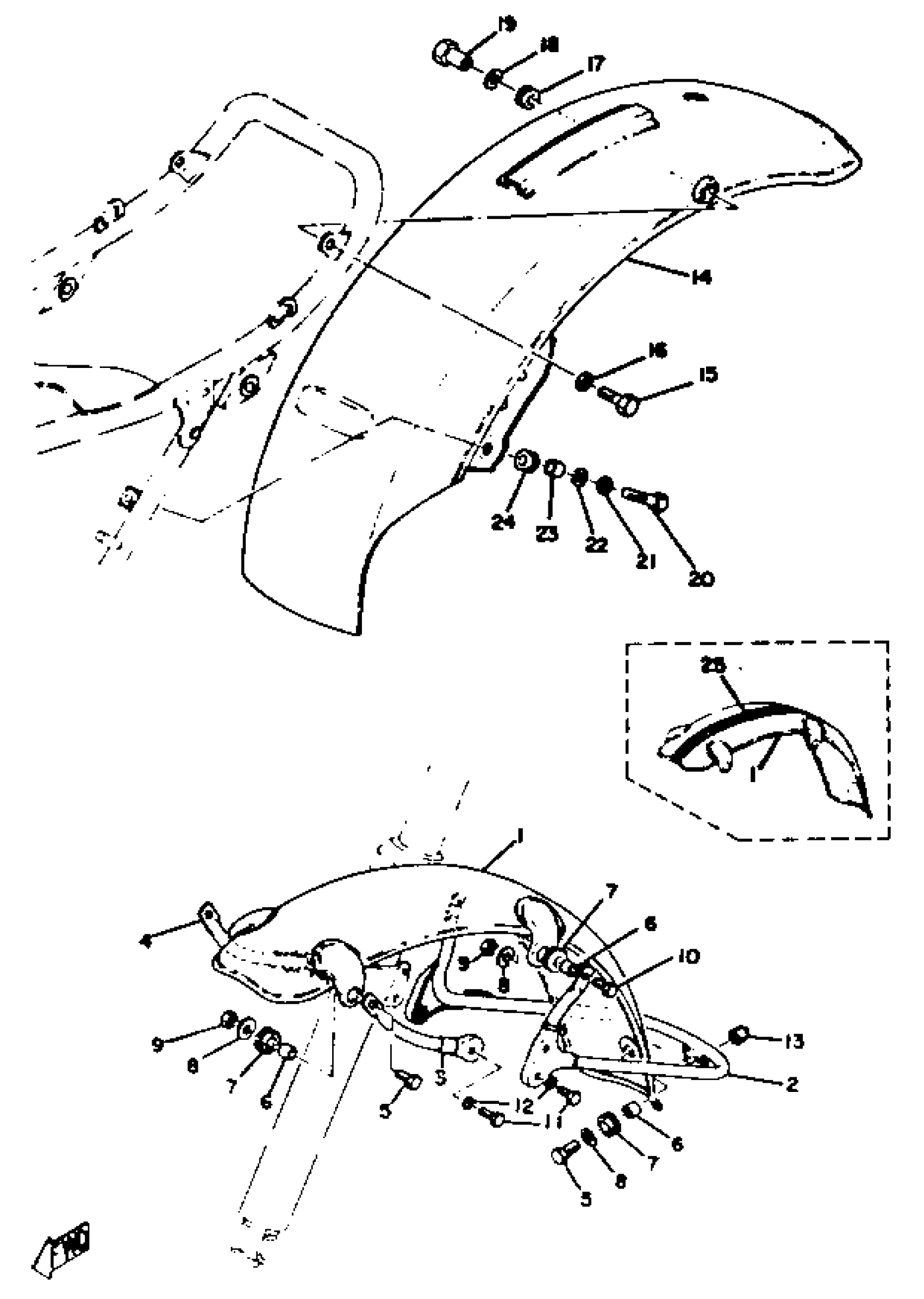

Yamaha RT2 (DT2) 1972 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

(214-21510-00-35)

Unavailable

1

FENDER, FRONT

(308-21510-00-35)

Unavailable

2

BRACKET, FENDER

(214-21512-00-93)

Unavailable

2

BRACKET, FENDER

(308-21512-00-93)

Unavailable

3

STAY, FENDER 1

(214-21513-00-00)

Unavailable

4

STAY, FENDER 2

(214-21514-00-00)

Unavailable

5

BOLT(3DM)

97024-06020-00

$5.75

6

COLLAR (J10)

90387-06026-00

$6.45

7

GROMMET 839774310000

90480-14023-00

$4.34

8

WASHER, PLATE

90201-06380-00

$0.54

9

NUT, HEXAGON

95380-06600-00

$4.11

10

BOLT, HEXAGON

97017-06025-00

$2.78

10

BOLT(3DM)

97024-06020-00

$5.75

11

BOLT(3DM)

97024-06020-00

$5.75

12

WASHER, SPRING

92995-06100-00

$2.95

13

NUT (J17)

95380-06800-00

Unavailable

14

FENDER, REAR

(275-21610-00-35)

Unavailable

14

FENDER, REAR

(308-21610-00-35)

Unavailable

15

BOLT(3DM)

97024-06020-00

$5.75

16

WASHER, SPRING

92995-06100-00

$2.95

17

DAMPER, REAR

168-21639-00-00

Unavailable

18

WASHER, PLATE

90201-15239-00

Unavailable

19

NUT, REAR FENDER

(275-21635-00-00)

Unavailable

20

BOLT, HEXAGON

97017-06025-00

$2.78

21

WASHER, SPRING

92995-06100-00

$2.95

22

WASHER, PLATE

90201-06380-00

$0.54

23

COLLAR (J10)

90387-06026-00

$6.45

24

GROMMET 839774310000

90480-14023-00

$4.34

25

MOLD, FENDER

(308-21519-00-00)

Unavailable
