1970 Yamaha RT1 (RT1M) Shifter 2 Diagram

← All diagrams

Find the part on the Shifter 2 diagram for your 1970 Yamaha RT1 (RT1M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

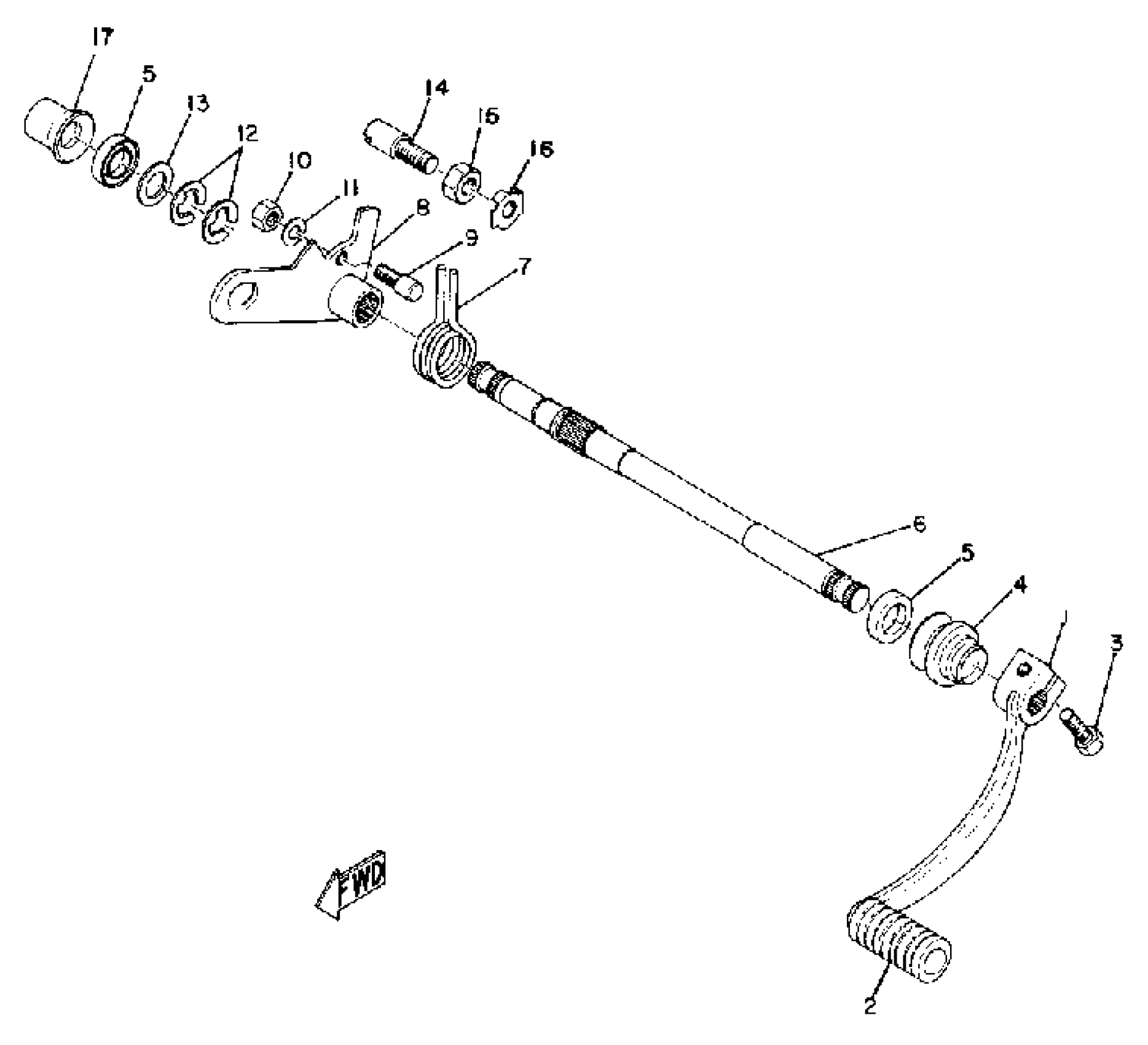

1970 Yamaha RT1 (RT1M) Shifter 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, SHIFT

214-18111-01-00

1
Out of stock

2

COVER, CHANGE PEDAL

132-18113-01-00

1
Out of stock

3

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

4

BOOT

214-18131-00-00

1
Out of stock

5

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

5

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

6

SHAFT, SHIFT

214-18125-01-00

1
Out of stock

7

SPRING TORSION 214181240000

90508-32052-00

1
Out of stock

8

LEVER, SHIFT 1

(214-18121-01-00)

1
Out of stock

9

SCREW 214181860000

90149-06017-00

1
Out of stock

10

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

11

WASHER, LOCK

90215-06016-00

1
Out of stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

CIRCLIP

99006-10600-00

1

$6.91

In stock

13

WASHER,PLATE

90201-12168-00

1
Out of stock

14

SCREW, ADJUSTING (367)

90149-08094-00

—

$4.91

In stock

15

. NUT

95380-08700-00

1

$3.07

In stock

16

WASHER

90215-08015-00

1
Out of stock

17

COVER, SHIFT SHAFT

(214-18129-00-00)

1
Out of stock
