1970 Yamaha RT1 (RT1M) Clutch Diagram

← All diagrams

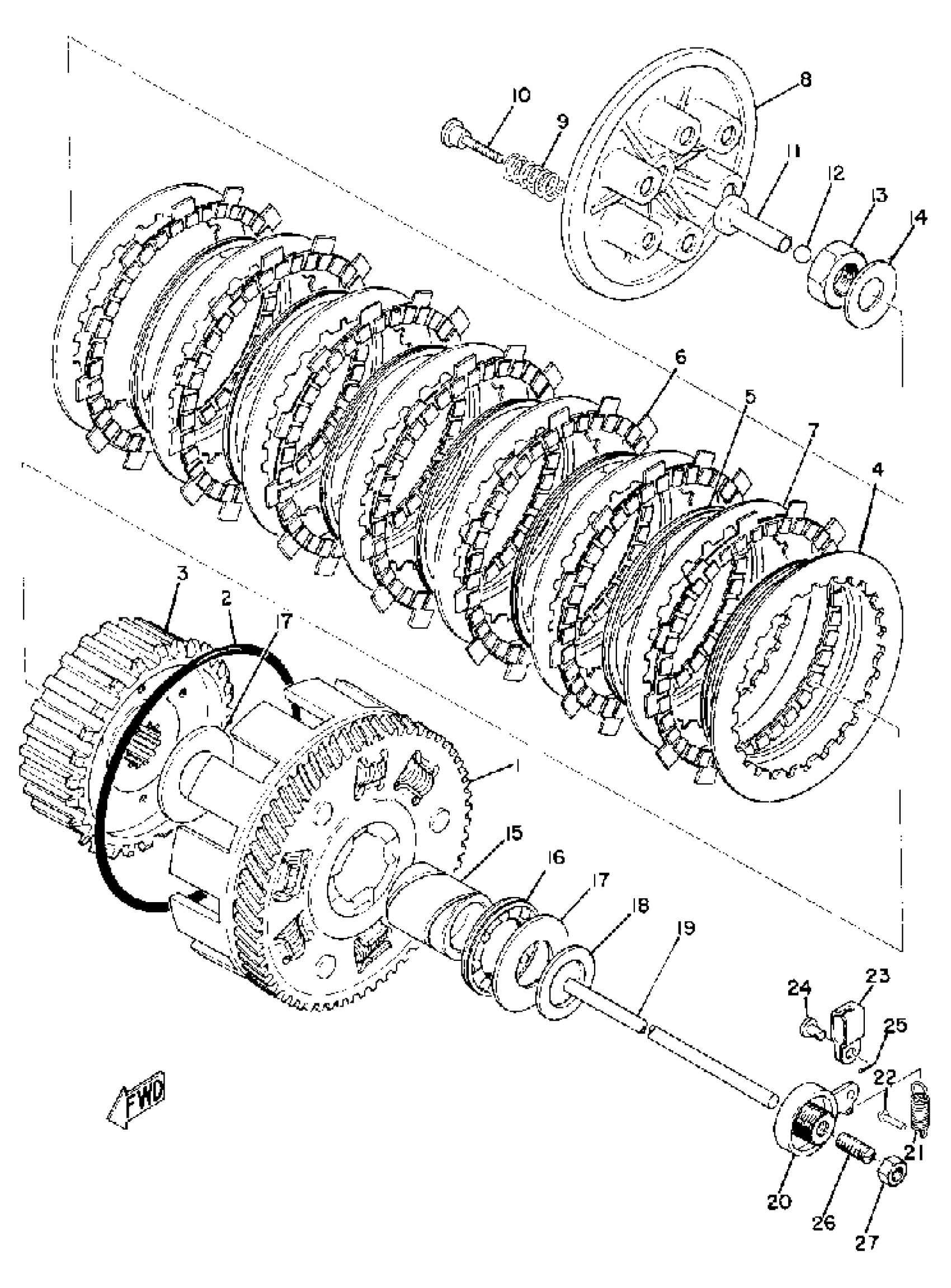

Find the part on the Clutch diagram for your 1970 Yamaha RT1 (RT1M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha RT1 (RT1M) Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRIMARY DRVEN GEAR

(214-16150-01-00)

1
Out of stock

1

CLUTCH ASSEMBLY

(275-16301-00-00)

1
Out of stock

2

O-RING

(93211-20102-00)

1
Out of stock

3

BOSS, CLUTCH

(214-16371-02-00)

1
Out of stock

4

. PLATE, CLUTCH 1

214-16324-00-00

1
Out of stock

5

. RING, CUSHION

168-16367-00-00

1
Out of stock

6

PLATE, FRICTION

5Y1-16331-01-00

1

$25.90

In stock

7

PLATE, CLUTCH 2

168-16325-10-00

1

$13.32

In stock

8

. PLATE, PRESSURE 1

214-16351-00-00

1
Out of stock

9

SPRING (137-16333-00)

90501-20122-00

1
Out of stock

9

SPRING, COMPRESSION (400)

90501-20361-00

1

$10.92

In stock

10

SCREW, SPECL SHAPE

(90149-05147-00)

1
Out of stock

11

ROD, PUSH

174-16356-00-00

1
Out of stock

12

BALL

93505-16006-00

1

$2.22

In stock

13

NUT

90170-18089-00

1
Out of stock

14

SPRING

214-16119-00-00

—
Out of stock

15

SPACER 1

(214-16181-00-00)

1
Out of stock

16

BEARING, FLAT #41

93341-23307-00

1
Out of stock

17

PLATE, THRUST (2)

170-16164-00-00

—
Out of stock

18

WASHER, PLATE(1FK)

90201-252K4-00

—
Out of stock

19

ROD, PUSH 2

183-16357-00-00

1
Out of stock

20

PUSH LEVER ASSEMBLY

214-16340-00-00

1
Out of stock

21

SPRING, TENSION

90506-10020-00

1
Out of stock

22

HOOK, SPRING

132-16346-00-00

—
Out of stock

23

JOINT

214-16389-00-00

—
Out of stock

24

PIN W/HOLE 214163790000

90240-06005-00

—

$10.66

In stock

25

. PIN, COTTER

91401-10015-00

1
Out of stock

26

BOLT, SET (214-16343-00)

90113-08017-00

1
Out of stock

27

NUT

90179-08179-00

—
Out of stock
