1970 Yamaha RT1 (RT1M) Rear ARM & Chain Case Diagram

← All diagrams

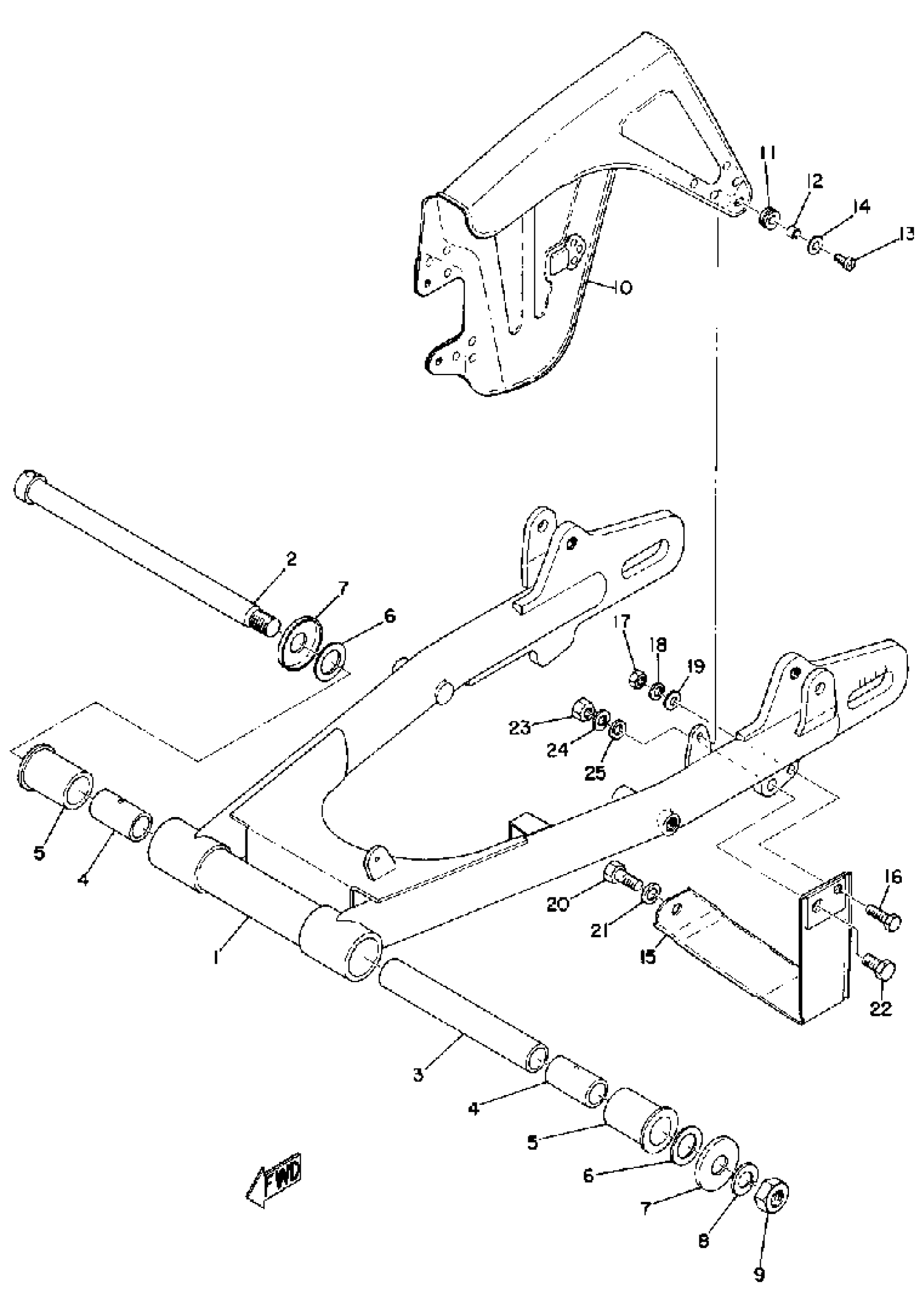

Find the part on the Rear ARM & Chain Case diagram for your 1970 Yamaha RT1 (RT1M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha RT1 (RT1M) Rear ARM & Chain Case Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM

(275-22110-00-33)

1
Out of stock

2

SHAFT, PIVOT

275-22141-00-00

1
Out of stock

3

COLLAR

90387-16128-00

1
Out of stock

4

COLLAR

90387-16226-00

1
Out of stock

5

BUSH 1482212300

90386-22018-00

1

$31.31

In stock

6

SHIM,REAR ARM

240-22127-00-00

1

$5.74

In stock

7

COVER,THRUST 1

1A0-22128-00-00

1
Out of stock

8

WASHER(6TC)

92907-14100-00

1

$5.62

In stock

9

NUT(6TC)

95337-14600-00

1

$10.25

In stock

10

CASE, CHAIN

(214-22311-00-35)

1
Out of stock

11

GROMMET (141-82596-00)

90480-12096-00

1
Out of stock

12

SPACER

90560-05001-00

1
Out of stock

13

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

14

WASHER, PLATE

90201-06M08-00

1
Out of stock

15

GUARD, CHAIN

(214-22318-01-33)

1
Out of stock

16

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

20

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

BOLT, HEXAGON

97017-08025-00

—

$7.46

In stock

23

NUT(6L2)

95333-08600-00

—

$3.20

In stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

25

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock
