1970 Yamaha RT1 (RT1M) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1970 Yamaha RT1 (RT1M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

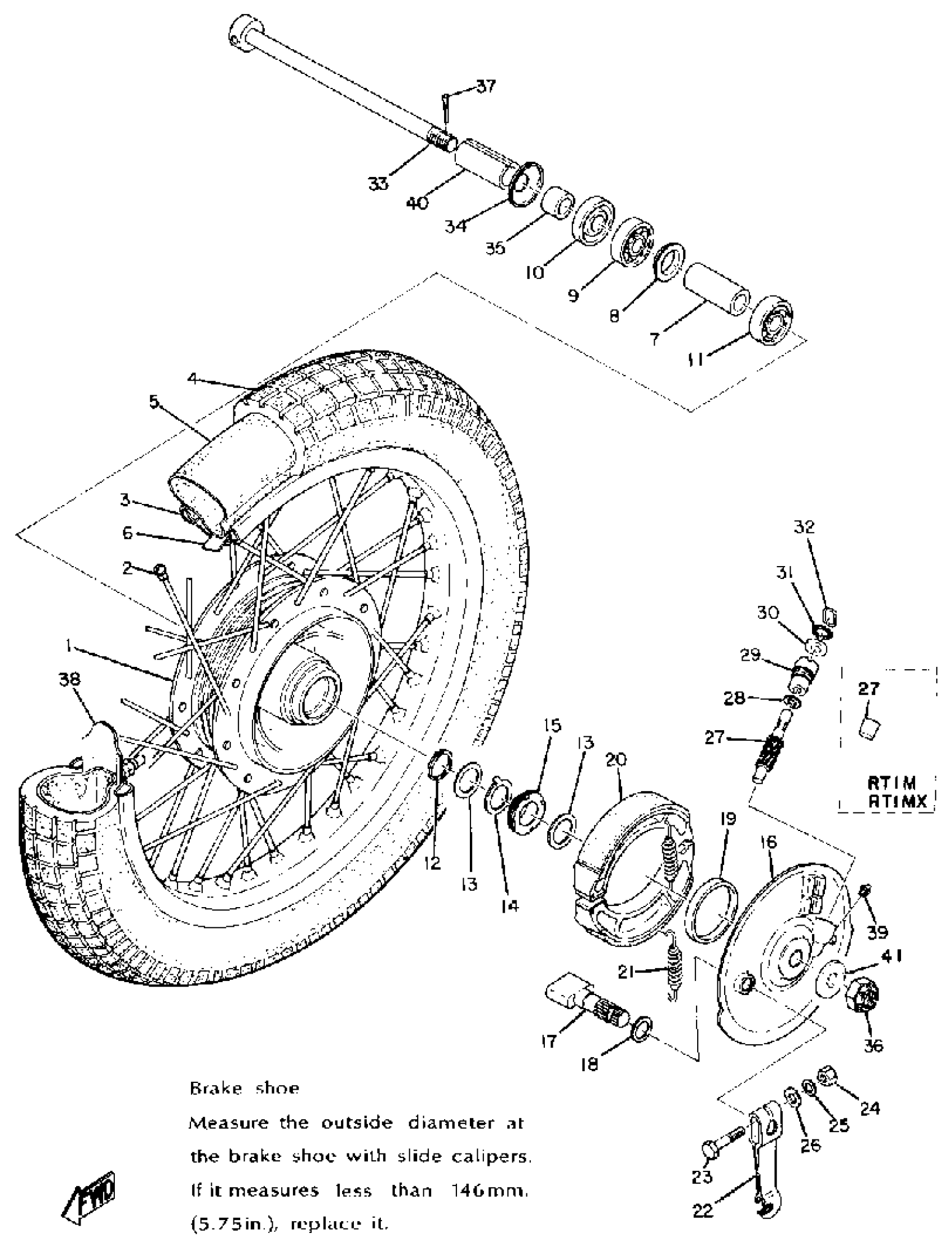

1970 Yamaha RT1 (RT1M) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(227-25111-00-00)

1
Out of stock

2

SPOKE SET, FRONT

(214-25104-00-00)

1
Out of stock

2

SPOKE SET, FRONT

(214-25104-10-00)

1
Out of stock

2

SPOKE SET, INNER 1

(214-25196-80-00)

1
Out of stock

2

SPOKE SET, INNER 1

(214-25196-90-00)

1
Out of stock

2

SPOKE SET, OUTER 1

(214-25197-80-00)

1
Out of stock

2

SPOKE SET, OUTER 1

(214-25197-90-00)

1
Out of stock

3

RIM 1.60X19

(94416-19035-00)

1
Out of stock

3

RIM 1.60X21

(94416-21038-00)

1
Out of stock

4

275X21 BS M7

(94127-21216-00)

1
Out of stock

4

325X19 DUNLP TRIAL

(94132-19063-00)

1
Out of stock

5

TUBE (2.75-21)(2YY)

94227-21293-00

1
Out of stock

5

TUBE

(94232-19064-00)

1
Out of stock

6

BAND, RIM

94327-19111-00

1

$12.51

In stock

6

BAND, RIM

(94327-21024-00)

1
Out of stock

7

SPACER(1EE)

90560-15293-00

—
Out of stock

8

FLANGE, SPACER

146-25116-00-00

—
Out of stock

9

BRG, R-B (7H4)

93306-20211-00

—

$22.05

In stock

10

OIL SEAL (20X35X7-136)

93102-20009-00

—

$9.10

In stock

11

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

—

$21.28

In stock

12

CIRCLIP(1EY)

99009-22400-00

—

$6.17

In stock

13

WASHER PLATE 214251470000

90201-22283-00

—

$5.38

In stock

14

CLUTCH, METER

214-25149-01-00

—

$6.68

In stock

15

GEAR, DRIVE

214-25135-00-00

1
Out of stock

16

PLATE, BRAKE SHOE

(214-25121-01-00)

1
Out of stock

16

BRAKE SHOE PLT ASSEMBLY

(438-25120-10-00)

1
Out of stock

17

CAMSHAFT

(214-25151-00-00)

1
Out of stock

18

WASHER PLATE 341251470000

90201-25286-00

—
Out of stock

19

OIL SEAL (50X62X7-214)

93105-50010-00

—

$13.85

In stock

20

BRAKE SHOE KIT

3GW-W253A-00-00

—
Out of stock

21

—

$8.09

In stock

22

LEVER, CAMSHAFT 1

214-25155-01-00

1
Out of stock

23

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

24

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

27

GEAR, METER

214-25138-00-00

—

$18.32

In stock

27

PLUG, TAPER

(90336-18023-00)

1
Out of stock

28

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

29

BUSHING

109-25136-00-00

—

$8.78

In stock

30

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

31

O-RING (26H)

93210-14579-00

—

$5.69

In stock

32

RING, STOP

102-25137-00-00

—
Out of stock

33

AXLE, WHEEL

275-25181-00-00

1
Out of stock

34

COVER, HUB DUST

1R0-25118-00-00

—

$4.92

In stock

35

COLLAR

90387-157G5-00

1
Out of stock

36

NUT, CASTLE(2UJ)

90171-14056-00

—

$10.57

In stock

37

PIN, COTTER

91490-30030-00

—

$7.15

In stock

38

SPACER, BEAD

1T1-25194-00-00

—

$53.98

In stock

39

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

40

COLLAR

90387-15117-00

1
Out of stock

41

WASHER, PLAIN

92990-14200-00

—

$1.71

In stock
