1970 Yamaha RT1 (RT1M) Front Fork Diagram

← All diagrams

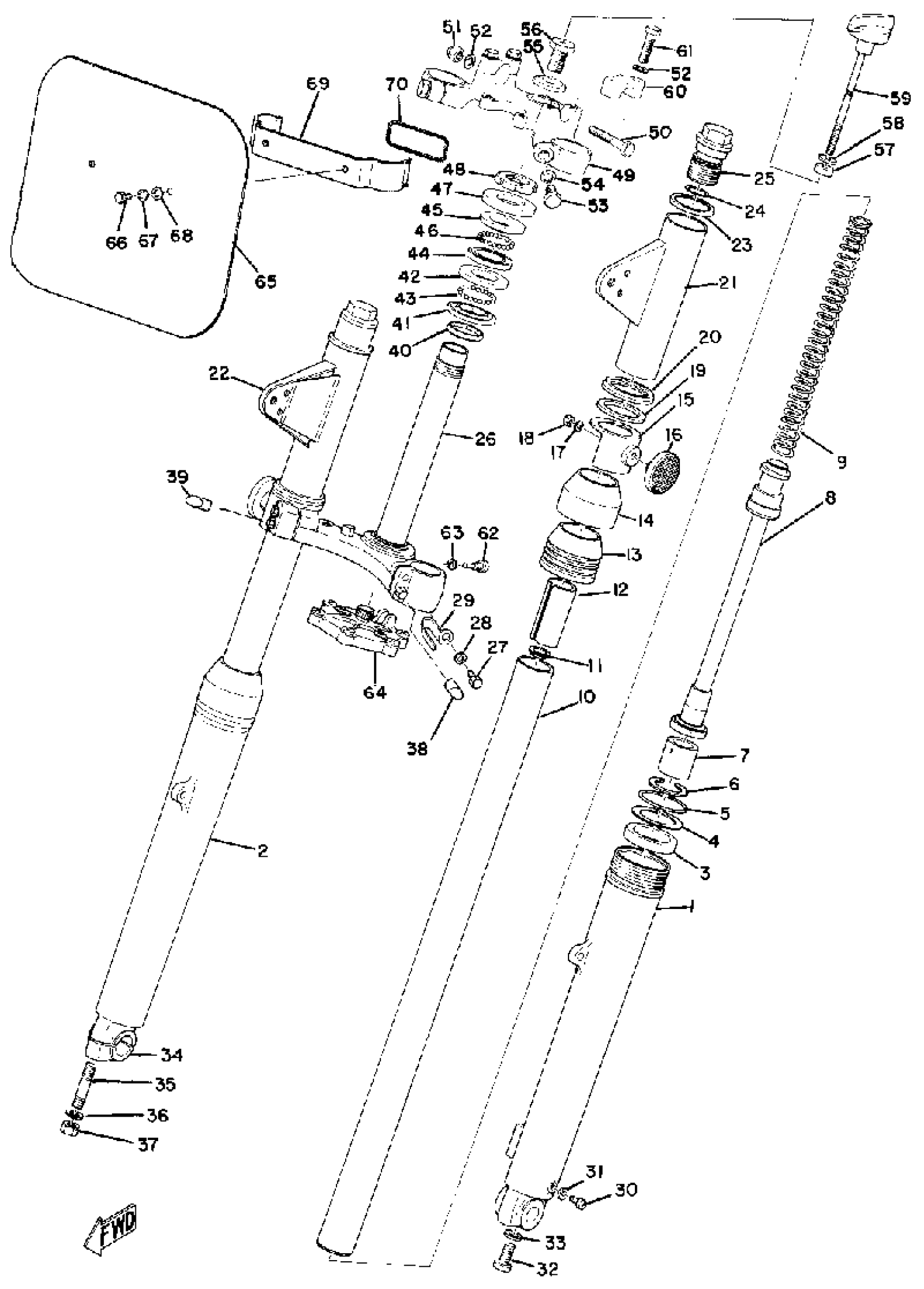

Find the part on the Front Fork diagram for your 1970 Yamaha RT1 (RT1M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha RT1 (RT1M) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(291-23100-60-33)

1
Out of stock

1

TUBE, OUTER 1

(291-23126-60-00)

1
Out of stock

2

TUBE, OUTER 2

(291-23136-60-00)

1
Out of stock

3

OIL SEAL

584-23145-50-00

1

$52.72

In stock

4

.. WASHER, OIL SEAL

214-23146-00-00

1
Out of stock

5

.. CLIP, OIL SEAL

214-23156-00-00

1
Out of stock

6

. CIRCLIP, INNER

93450-30033-00

1
Out of stock

7

PISTON, FRONT FORK

(278-23171-50-00)

1
Out of stock

8

CYLINDER, FRTFRK

(291-23170-60-00)

1
Out of stock

9

. SPRING, FRONT FORK

214-23141-00-00

1
Out of stock

10

. TUBE, INNER 1

291-23124-60-00

1
Out of stock

11

. SEAT, SPRING UPPER

278-23142-50-00

1
Out of stock

12

SPACER

(291-23118-60-00)

1
Out of stock

13

SEAL,DUST

278-23144-50-00

—

$31.64

In stock

13

. SEAL, DUST

292-23144-00-00

1
Out of stock

14

. COVER, DUST SEAL

278-23148-50-00

1
Out of stock

15

COVER, OUTER 1

(275-23122-60-00)

1
Out of stock

16

. REFLECTOR, FRONT 1

341-85111-00-00

1
Out of stock

17

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

18

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

19

. GASKET (LAMP STAY)

291-23163-61-00

1
Out of stock

20

. GUIDE, COVER LOWER

447-23116-52-00

1
Out of stock

21

COVER, UPPER 1

(291-23121-60-33)

1
Out of stock

22

COVER, UPPER 2

(291-23131-60-33)

1
Out of stock

23

. GUIDE, COVER UPPER

168-23115-00-00

1
Out of stock

24

. GASKET

214-23114-00-00

1
Out of stock

25

BOLT, CAP

(291-23111-60-00)

1
Out of stock

26

UNDER BRACKET

(291-23340-30-33)

1
Out of stock

27

BOLT, AXLE HOLDER

18G-23128-00-00

—

$7.77

In stock

28

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

29

HOLDER, CABLE 1

(256-23318-60-00)

1
Out of stock

30

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

31

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

32

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

—

$7.65

In stock

33

GASKET

509-23158-L0-00

—

$14.34

In stock

34

. HOLDER, AXLE (291-23167-60)

291-23167-61-00

1
Out of stock

35

BOLT, STUD (278)

90116-08261-00

—
Out of stock

36

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

37

NUT(6L2)

95333-08600-00

—

$3.20

In stock

38

STAY, PLATE FTNG 1

(263-21581-00-00)

1
Out of stock

39

STAY, PLATE FTNG 2

(263-21591-00-00)

1
Out of stock

40

SEAL, DUST

164-23462-00-00

—

$6.42

In stock

41

RACE, BALL 1

B6E-23411-00-00

—

$7.02

In stock

42

RACE, BALL 2

B6E-23412-00-00

—

$9.71

In stock

43

BALL

93501-04011-00

—
Out of stock

44

RACE, BALL 1

BP2-23411-00-00

—

$8.40

In stock

45

RACE, BALL 2

BP2-23412-00-00

—

$5.71

In stock

46

BALL

93503-16003-00

—

$2.14

In stock

47

COVER, BALL RACE

122-23416-00-00

—

$6.40

In stock

48

NUT

90179-25004-00

—

$20.78

In stock

49

CROWN, HANDLE

(275-23435-02-33)

1
Out of stock

50

BOLT

97013-08045-00

—
Out of stock

51

NUT, CROWN

95303-08800-00

—

$7.52

In stock

52

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

52

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

53

BOLT (8J7)

97013-10030-00

—

$8.91

In stock

53

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

54

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

55

WASHER, SPECIAL SHAPE

90209-14022-00

1
Out of stock

56

BOLT

90101-14113-00

1
Out of stock

57

WASHER, PLATE 1412342700

90202-06008-00

—

$3.91

In stock

58

WASHER, PLATE

90201-06061-00

1
Out of stock

59

SHAFT, DAMPER

(214-23419-01-00)

1
Out of stock

60

HOLDER, HANDLE UPR

(315-23441-00-93)

1
Out of stock

61

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

62

BOLT

(214-23492-00-00)

1
Out of stock

63

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

64

HDLBR SMY DMPR ASSEMBLY

5G2-23490-00-00

1
Out of stock

65

PLATE, NUMBER

(263-23485-00-00)

1
Out of stock

66

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

67

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

68

WASHER, PLATE

90201-06086-00

—
Out of stock

69

STAY, PLATE

(263-23487-00-00)

1
Out of stock

70

O-RING

(93210-67057-00)

1
Out of stock
