1997 Yamaha RT180 (RT180J) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 1997 Yamaha RT180 (RT180J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

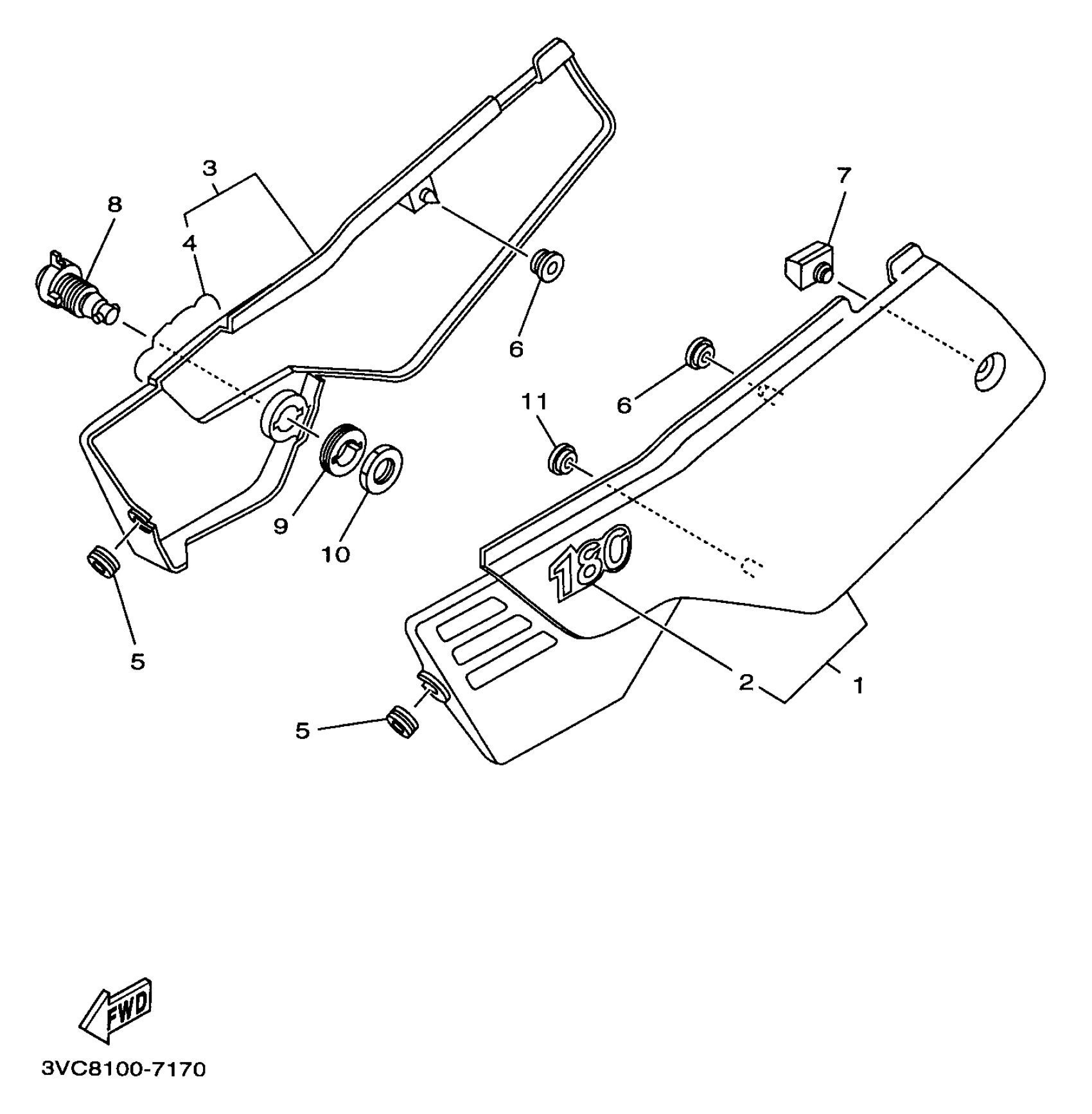

1997 Yamaha RT180 (RT180J) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SIDE COVER

3VC-F1710-40-00

1
Out of stock

2

. GRAPHIC 7

3VC-F1785-00-00

1
Out of stock

3

SD.CVR.RH

3VC-F1721-20-00

1
Out of stock

4

. GRAPHIC 7

3VC-F1785-00-00

1
Out of stock

5

DAMPER, SIDE COVER (437)

90480-12053-00

1

$5.78

In stock

6

GROMMET

90480-01827-00

1
Out of stock

7

PAD, SEAT

502-29472-00-00

1
Out of stock

8

LOCK ASSEMBLY

3VC-F178K-00-00

1
Out of stock

9

GROMMET (1E6)

90480-24186-00

1

$6.68

In stock

10

NUT, HEXAGON (1E6)

90170-22187-00

1

$9.83

In stock

11

GROMMET

90480-13014-00

1

$6.85

In stock
