1997 Yamaha RT180 (RT180J) Fender Diagram

← All diagrams

Find the part on the Fender diagram for your 1997 Yamaha RT180 (RT180J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

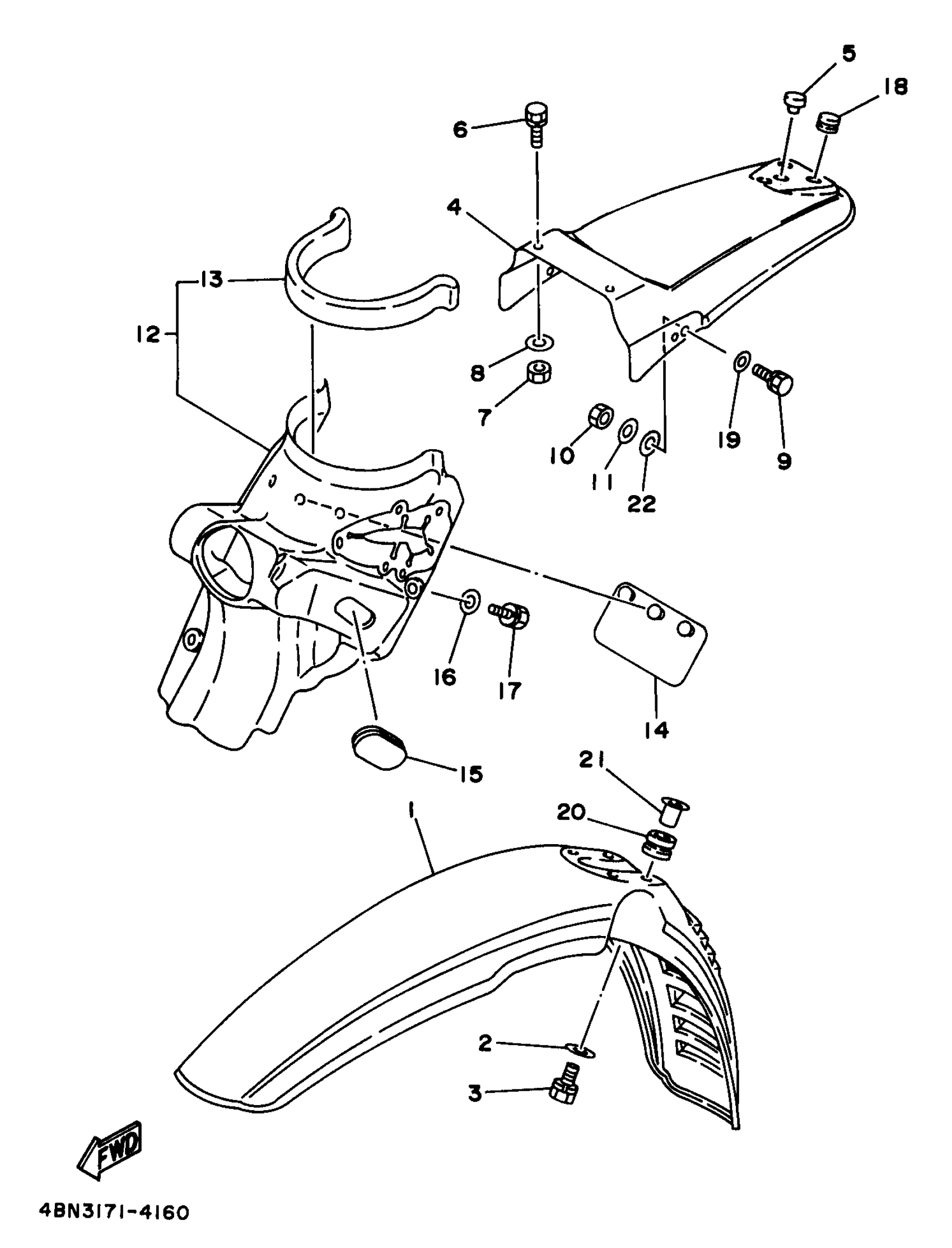

1997 Yamaha RT180 (RT180J) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

4BN-F1511-10-00

1
Out of stock

2

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

3

BOLT, WITH WASHER

97502-06425-00

1
Out of stock

4

FENDER, REAR

58W-F1611-30-00

1
Out of stock

5

GROMMET

90480-16800-00

1
Out of stock

6

BOLT, WITH WASHER

97502-06414-00

1
Out of stock

7

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

8

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

9

BOLT, WITH WASHER M8

97502-08616-09

1
Out of stock

10

NUT

812-14594-00-00

1

$5.34

In stock

11

WASHER(6TC)

92907-08200-00

1
Out of stock

12

GUARD,MUD

23K-F1620-00-00

1
Out of stock

13

DAMPER

2A6-21639-00-00

—
Out of stock

14

FLAP

1M1-21621-00-00

1
Out of stock

15

GROMMET

90480-01254-00

1
Out of stock

16

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

17

BOLT, WITH WASHER

97502-06416-00

1
Out of stock

18

GROMMET

90480-16800-00

1
Out of stock

19

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

20

GROMMET

90480-14198-00

—
Out of stock

21

COLLAR

90387-06158-00

—

$6.17

In stock

22

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock
