1997 Yamaha RT180 (RT180J) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1997 Yamaha RT180 (RT180J), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

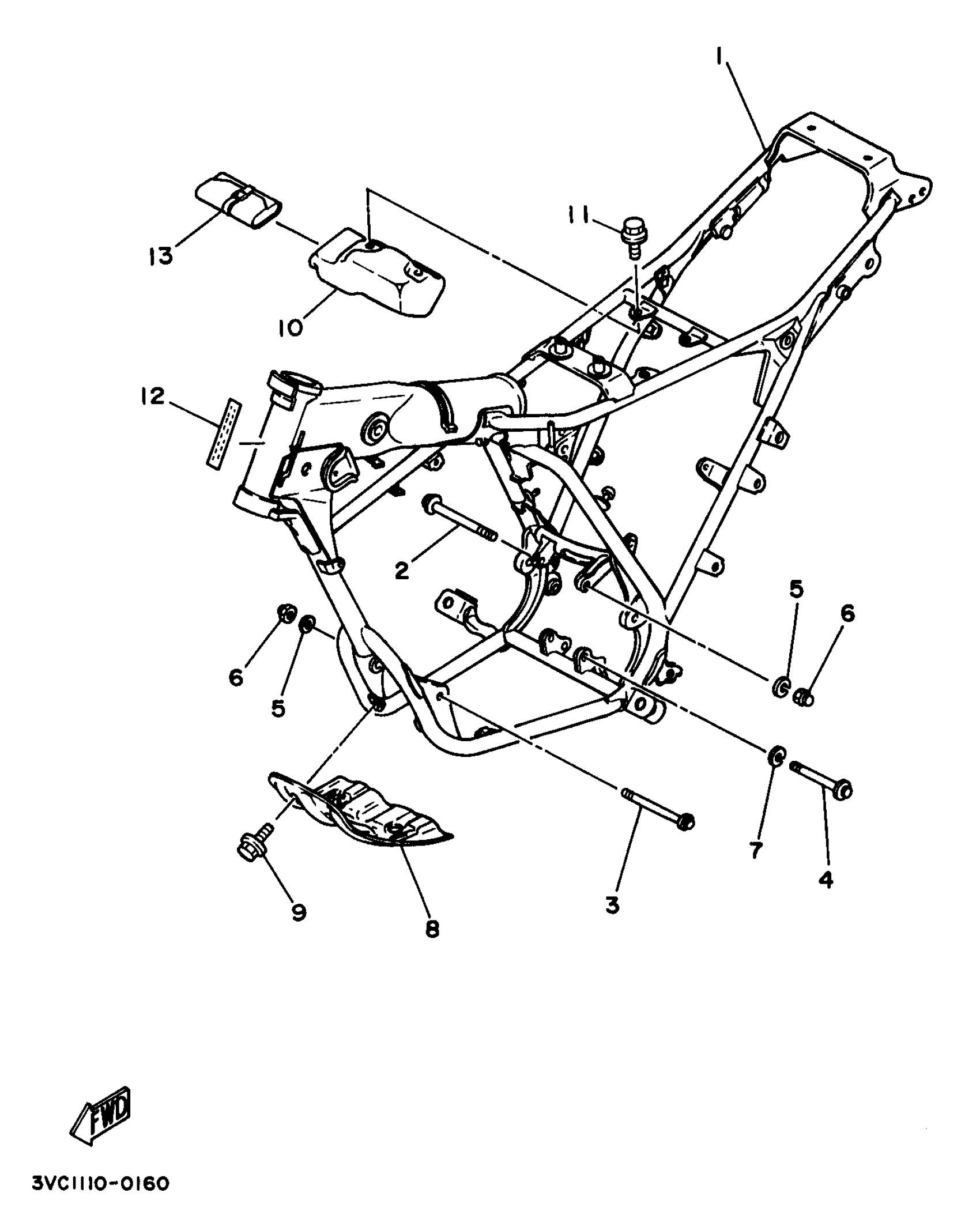

1997 Yamaha RT180 (RT180J) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

3VC-F1110-02-35

1
Out of stock

2

BOLT (1W1)

90105-08099-00

1

$5.34

In stock

3

BOLT, WASHER BASED (401)

90105-08120-00

1

$6.26

In stock

4

BOLT

90105-10037-00

—

$7.51

In stock

5

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

6

NUT

90179-08859-00

1
Out of stock

7

WASHER(6TA)

92907-10100-00

1

$6.18

In stock

8

PROTECTOR, ENGINE

5L9-F1471-00-00

1
Out of stock

9

BOLT, WITH WASHER

97502-06212-00

1
Out of stock

10

BOX COMP.

5L9-F1170-00-00

1
Out of stock

11

BOLT, HEXAGON W/W DEEP RECESS

97E95-06510-00

1
Out of stock

12

PLATE, EPA U50

3VC-2179X-00-00

1
Out of stock

13

TOOL KIT

4VW-F8100-01-00

1
Out of stock
