1995 Yamaha RT180 (RT180G) Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1995 Yamaha RT180 (RT180G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

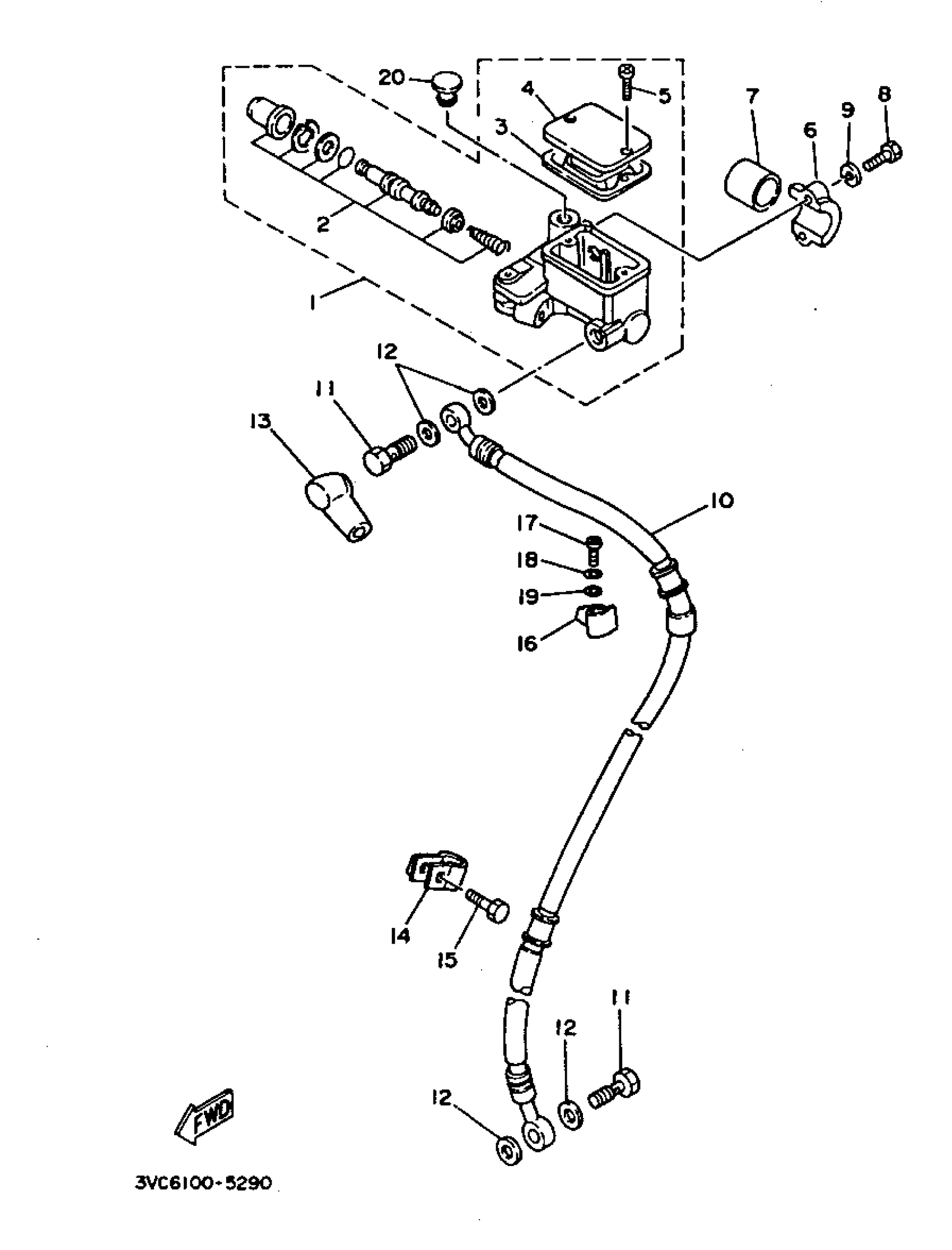

1995 Yamaha RT180 (RT180G) Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MASTER CYLINDER SUB ASSY

39F-25870-00-00

—
Out of stock

2

CYL KIT,MASTER

5VK-25807-00-00

—

$65.54

In stock

3

DIAPHRAGM, RESERVOIR

55U-25854-00-00

1

$21.68

In stock

4

CAP, RESERVOIR (FRONT)

2KF-25852-02-00

1
Out of stock

5

SCREW, FLAT

98707-04012-00

1

$1.43

In stock

6

BRACKET, MASTER CYLINDER

4L0-25867-00-00

—

$28.31

In stock

7

SPACER

90560-22807-09

1
Out of stock

8

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

9

WASHER(6TA)

92907-06600-00

1

$0.78

In stock

10

HOSE,BRAKE 1

2TW-F5872-19-00

1
Out of stock

11

BOLT, UNION(3GM)

90401-10159-00

1

$8.85

In stock

12

WASHER, PLATE

90201-10886-00

1
Out of stock

13

BOOT, MASTER CYLINDER

3V9-F5862-00-00

1
Out of stock

14

HOLDER, CABLE 1

4BN-F3318-00-00

1
Out of stock

15

BOLT,SOCKET

91317-06010-00

1

$6.91

In stock

16

HOLDER, BRAKE HOSE 1

4BN-F5875-00-00

1
Out of stock

17

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

—
Out of stock

18

WASHER, SPRING

92907-06100-00

—
Out of stock

19

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

20

CAP

2WL-F5825-00-00

1
Out of stock
