1995 Yamaha RT180 (RT180G) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1995 Yamaha RT180 (RT180G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

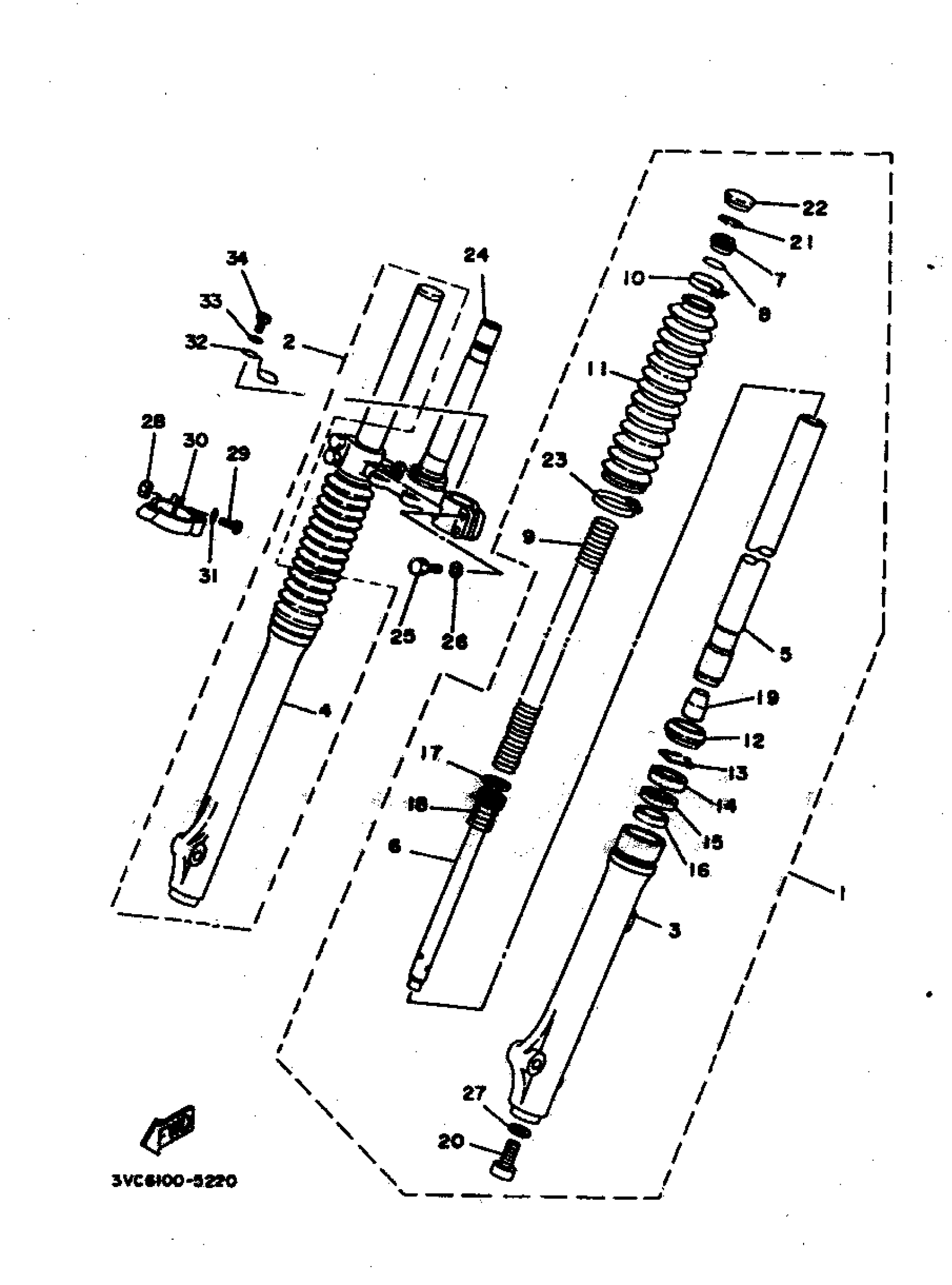

1995 Yamaha RT180 (RT180G) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY (L.H)

2TW-F3102-F0-00

1
Out of stock

2

FRONT FORK ASSEMBLY (R.H)

2TW-F3103-F0-00

1
Out of stock

3

. TUBE, OUTER (LEFT)

2TW-F3126-A0-00

1
Out of stock

4

. TUBE, OUTER (RIGHT)

2TW-F3136-A0-00

1
Out of stock

5

. INNER TUBE COMP1

2TW-F3110-A0-00

1
Out of stock

6

. PISTON, FRONT FORK

2TW-F3171-A0-00

1
Out of stock

7

. BOLT, CAP

2TW-F3111-A0-00

1
Out of stock

8

O-RING(1HX)

93210-24709-00

1
Out of stock

9

. SPRING, FRONT FORK

2TW-F3141-A0-00

1
Out of stock

10

BAND

4AN-F3192-00-00

1

$8.88

In stock

11

. BOOT

2TW-F3191-F0-00

1
Out of stock

12

. SEAL, DUST

2TW-F3144-A0-00

1
Out of stock

13

CLIP, OIL SEAL

34X-23156-00-00

1

$7.51

In stock

14

. OIL SEAL

2TW-F3145-A0-00

1
Out of stock

15

SPACER, SEAL

10V-23147-00-00

—

$26.40

In stock

16

. METAL, SLIDE 1

10V-23125-00-00

1
Out of stock

17

. RING, PISTON FRONT FORK (2F3-23157-00)

1T4-23157-01-00

1
Out of stock

18

. SPRING, REBOUND

2TW-F3151-A0-00

1
Out of stock

19

SPACER, OIL LOCK

4AN-F3166-00-00

—

$7.42

In stock

20

BOLT

3M7-23181-00-00

—

$7.75

In stock

21

RING, SNAP

1UA-23153-00-00

—
Out of stock

22

CAP, FRONT FORK

2TW-F3168-A0-00

—
Out of stock

23

BAND

4AN-F3192-10-00

—

$1.57

In stock

24

UNDER BRACKET COMP

2TW-F3340-10-35

1
Out of stock

25

BOLT, HEXAGON

97013-08030-00

—

$3.20

In stock

26

WASHER(JN5)

92907-08100-00

—

$5.98

In stock

27

GASKET

509-23158-L0-00

—

$14.34

In stock

28

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

29

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

30

HOLDER, CABLE

34X-23317-00-00

—

$6.52

In stock

31

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

32

GUIDE, CABLE

4AN-F331E-00-00

1
Out of stock

33

WASHER, SPRING

92907-06100-00

—
Out of stock

34

SCREW, PAN

98517-06012-00

—

$3.14

In stock
