1995 Yamaha RT180 (RT180G) Front Brake Caliper Diagram

← All diagrams

Find the part on the Front Brake Caliper diagram for your 1995 Yamaha RT180 (RT180G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

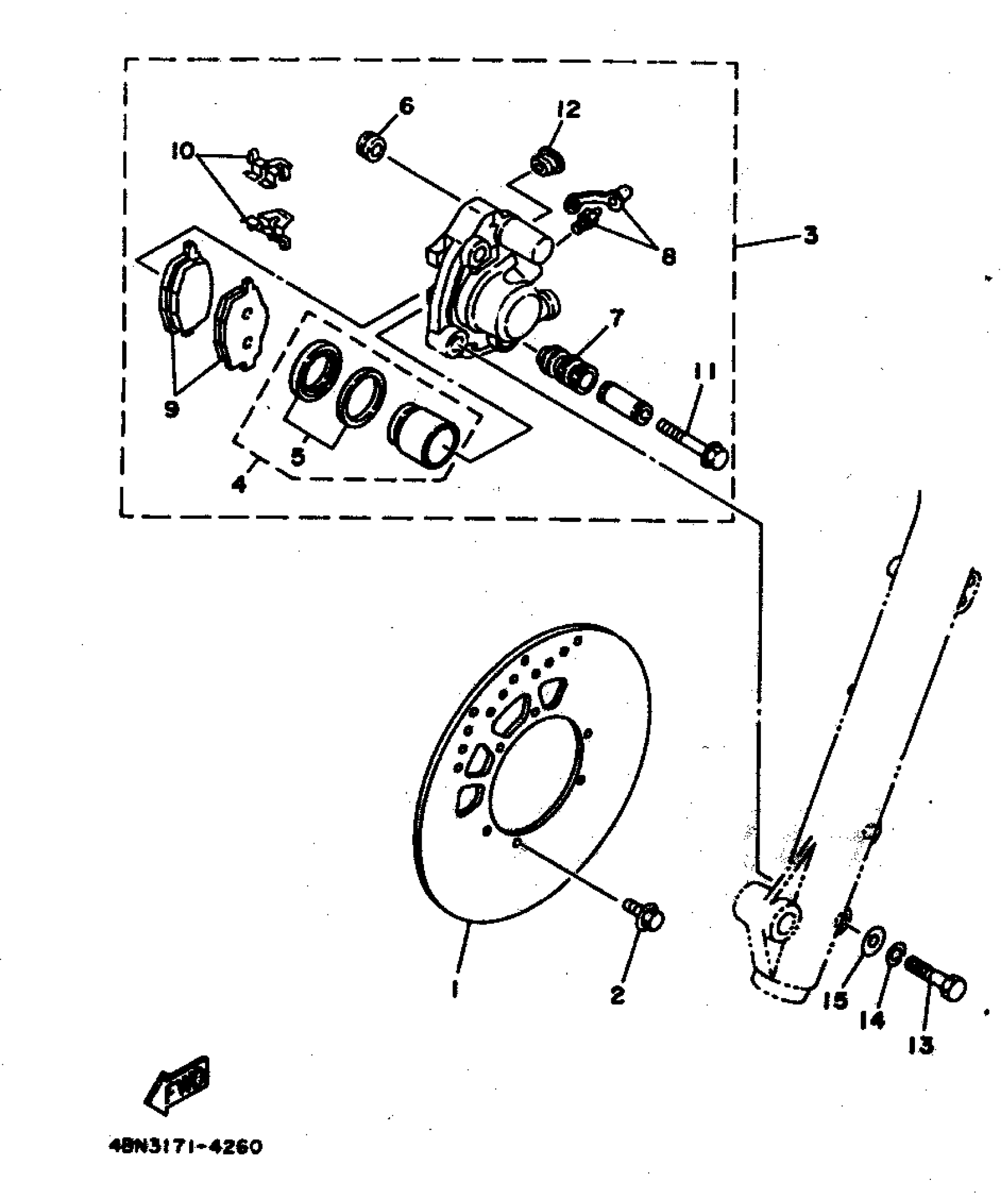

1995 Yamaha RT180 (RT180G) Front Brake Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DISC, BRAKE (LEFT)

5XT-2582T-00-00

1

$80.98

In stock

2

BOLT

90109-06757-00

1
Out of stock

3

CALIPER ASSY LEFT

1RH-2580T-01-00

1
Out of stock

4

PISTON ASSY, CALIPER

34X-W0057-00-00

1

$123.58

In stock

5

CALIPER SEAL KIT

55W-W0047-00-00

—

$58.02

In stock

6

BOOT 2

5R2-25937-00-00

1

$31.48

In stock

7

BOOT 2

34X-25937-00-00

1

$27.97

In stock

8

BLEED SCREW KIT

15B-W0048-00-00

1

$18.09

In stock

9

BRAKE PAD KIT 2

34X-W0046-02-00

1

$45.38

In stock

10

SUPPORT, PAD

34X-25919-00-00

—

$51.95

In stock

11

BOLT

5KN-25926-01-00

1

$7.82

In stock

12

CAP, INDICATOR

34X-25845-00-00

1

$14.55

In stock

13

BOLT

90101-10259-09

1
Out of stock

14

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

15

1

$3.00

In stock
